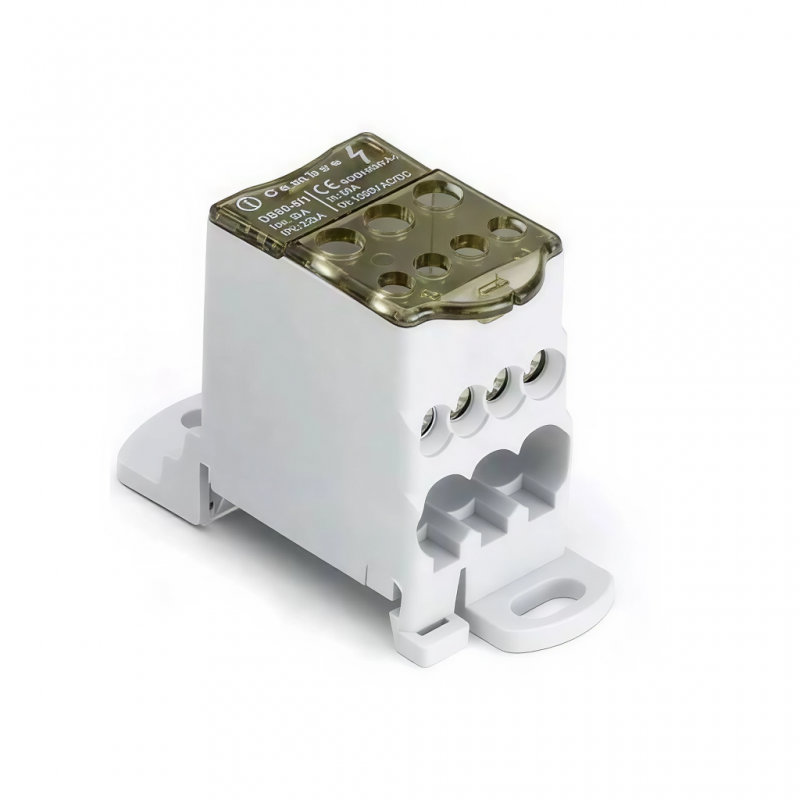

Cembre Dblock 80A 7-way single-pole distributor DB80-6/1N
CEM DB80-6/1N
8051316038029
Cembre DB80-6/1N 80A single-pole distributor: 7-way direct-tightening, compact, safe and DIN-rail ready.
-
Rated current: 80 A
-
Number of poles: 1 (unipolar)
-
Total number of ways: 7
-
Input holes: 1x Ø6.8 mm
-
Output holes: 4x Ø4.5 mm - 2x Ø6.8 mm
-
Input connection: 1x(6÷16 mm² R/F)
-
Output connection: 4x(2.5÷6 mm² R/F) - 2x(2.5÷16 mm² R/F)
-
Short duration current (Icw): 3 kA
-
Maximum peak current (IPK): 22 kA
-
Clamping geometry: slotted screw
-
Dimensions: 66 x 27 x 46 mm (H x W x D)
-
Degree of protection: IP20
-
Rated voltage: 1000 V
-
Installation: 35 mm DIN rail or screw fixing.
€7.79
Items Available: 10
: 3
Cembre single-pole distributor for orderly and safe distribution in compact spaces
The Cembre DB80-6/1N is a compact single-pole distributor designed to optimize electrical distribution within control and automation panels. With 7 total ways, it provides flexibility and order in even the smallest switchboards while ensuring an operating current of up to 80 A.
Fast and durable connections
Direct-tightening terminals with captive screws already loosened allow quick and easy wiring, reducing installation time. Tapered holes facilitate the introduction of conductors, while tin-plated brass plates ensure electrical stability, reliability and corrosion resistance.
Robust and versatile structure
Polycarbonate housing with PA 6.6 components provides IP20 protection and thermal resistance. It is designed to be mounted either on a 35 mm DIN rail or with screw mounting on a panel, making it perfect for any installation configuration.
| Feature | Detail |
|---|---|
| Product code | DB80-6/1N |
| Brand | Cembre |
| Type | Single-pole distributor |
| Rated current | 80 A |
| Peak current (IPK) | 22 kA |
| Short duration current (Icw) | 3 kA |
| Rated voltage | 1000 V |
| Number of ways | 7 |
| Input hole | 1 × Ø6.8 mm |
| Output holes | 4 × Ø4.5 mm, 2 × Ø6.8 mm |
| Input connection | 1 × (6÷16 mm² R/F) |
| Output connection | 4 × (2.5÷6 mm² R/F), 2 × (2.5÷16 mm² R/F) |
| Terminal material | Tin-plated brass |
| Clamping geometry | Slotted screw |
| IP protection | IP20 |
| Housing material | Polycarbonate + PA 6.6 |
| Mounting | 35mm DIN rail or screws |
| Dimensions | 66 mm (h) × 27 mm (w) × 46 mm (d) |
| Applications | LV distribution, switchboards, industrial automation |
There are no reviews
Data sheet
- Type: Distributors
- Voltage: 1000V
- Poles: 1P
- Amps: 80A
