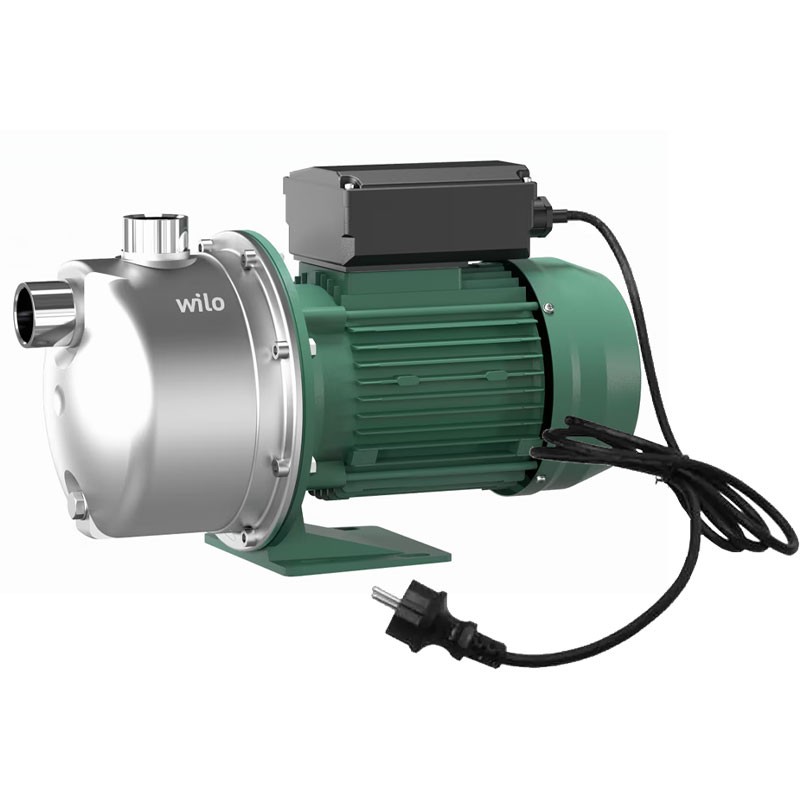

Wilo WJ 203X EM self-priming centrifugal pump 1" 1X230V
WIL 4262916
4016322698081
Wilo WJ 203X single-stage self-priming centrifugal pump:
- Suitable for uses such as water supply, sprinkler irrigation and rainwater utilization.
- Self-pumping pump performance up to 8 m due to the integrated Venturi system
- The pump is easy to operate thanks to the built-in on/off sensor
- In contrast to Wilo-WJ-X, Wilo-WJ is equipped with an integrated handle
- Ready for connection thanks to the connection cable (2 m) with shockproof Schuko plug included in delivery
- Connection for three-phase versions via terminal block
- All components in contact with the pumped fluid are corrosion-resistant.
€167.38
Items Available: 4
: 2
Frequently bought together
Hydraulic data:
- Maximum operating pressure PN 6 bar
- G1 delivery port
- Fluid temperature min. Tmin 5 °C
- Ambient temperature min. Tmin -15 °C
- Ambient temperature max. Tmax 40 °C
Materials
- Pump body Stainless steel
- Shaft Stainless steel
- CVPFF shaft seal
- Gasket material NBR
- Impeller Stainless steel
Motor data
- Mains power supply 1~230 V, 50 Hz
- Voltage tolerance ±6 %
- Rated motor power P2 0.75 kW
- Rated current IN 4.9 A
- Rated speed n 2900 1/min
- Insulation class B
- Motor degree of protection IP44

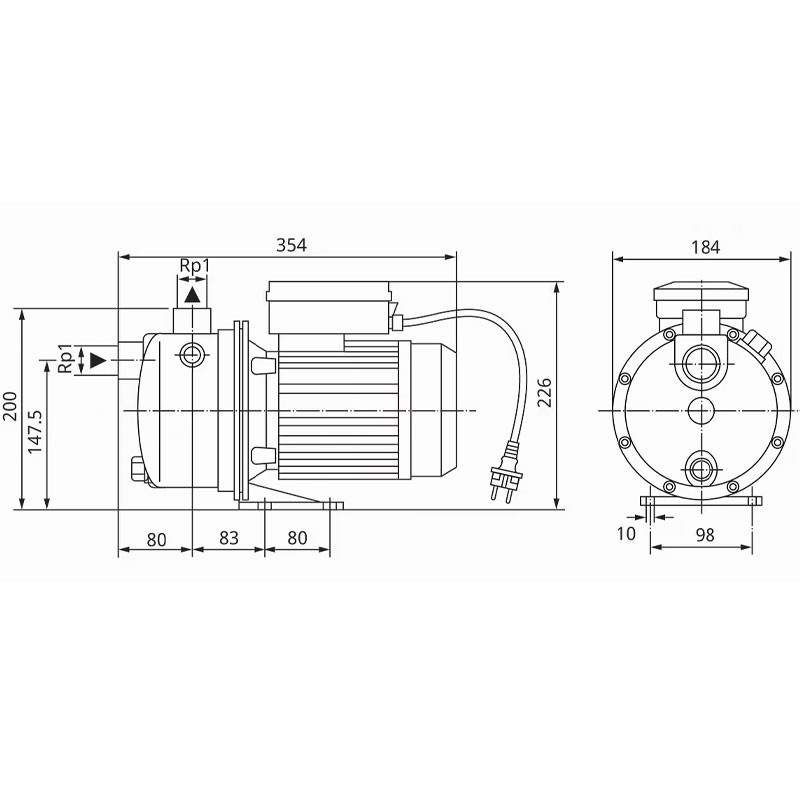

Mounting dimension
- Pipe fitting on suction side G 1
- Pipe connection on the pressure side G 1
There are no reviews
Data sheet
- Type: Centrifugal Pumps
- Model: Self-priming
- Connections: 1 inch
