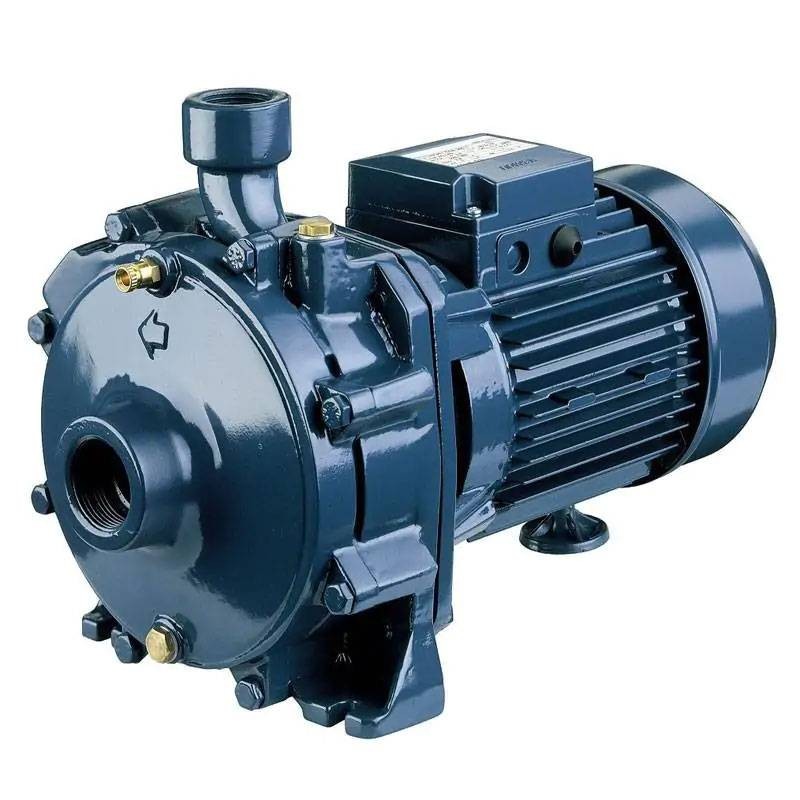

Ebara Single-phase Big-impeller Centrifugal Pump CDA/E IE2 2.00 Hp

Ebara Pompe
Ebara Pompe
EBA 1210200000E

Ebara CDA/E IE2 cast iron centrifugal big-impeller pump:



  • Power 2 Hp/ 1.5kW
  • Power supply Single-phase 230V
  • Minimum flow rate 60.5m-20L/min.
  • Maximum flow rate 40.3m-100L/min.
  • Degree of protection IP44
  • Suction height 8m
  • Liquid temperature 90°C
  • Current consumption 9A
  • DNA connections G 1-1/4"
  • DNM connections G 1"



Applications:

  • Pressurization of domestic systems
  • Small irrigation
  • Handling of nonaggressive liquids for civil and industrial use
  • Washing systems
  • Vehicle washing
Offer expires in
Do you have questions about this product or did you not find what you were looking for? Ask us!
Ebara Single-phase Big-impeller Centrifugal Pump CDA/E IE2 2.00 Hp
€526.57
€510.77
€510.77

Lowest price in 30 days:
€526.57
Save 3%
€510.77
Tax included
Calculate shipping cost
Offer expires in
Items Available: 3
Further availability of the manufacturer
€510.77

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Centrifugal cast-iron big-impeller electric pump suitable for pressurization of domestic systems, small irrigation, handling of nonaggressive liquids for civil and industrial use, washing systems and vehicle washing. They can be included in complex machinery for industrial use.




Pump technical data:

  • Maximum operating pressure: 10 bar
  • Maximum liquid temperature: 90°C
  • Suction connection: G1¼
  • Discharge connection: G1



Motor technical data:

  • 2-pole self-ventilated asynchronous motor
  • Insulation class F
  • Degree of protection IP44
  • Single-phase voltage 230V ± 10% 50Hz
  • Permanently inserted capacitor and built-in self-resetting thermal overload protection for single-phase motor



Materials:

  • Cast iron pump body
  • Mechanical seal in Ceramic/Carbon/NBR
  • Brass impeller
  • AISI 303 shaft
  • Cast iron support
  • Cast iron seal holder disc integrated on the motor support



Dimensions:

  • Height 265 mm - Length 410.8 mm - Thickness 209 mm

There are no reviews

Data sheet

Type:
Centrifugal Pumps
Model:
Multistage
Connections:
1 inch
