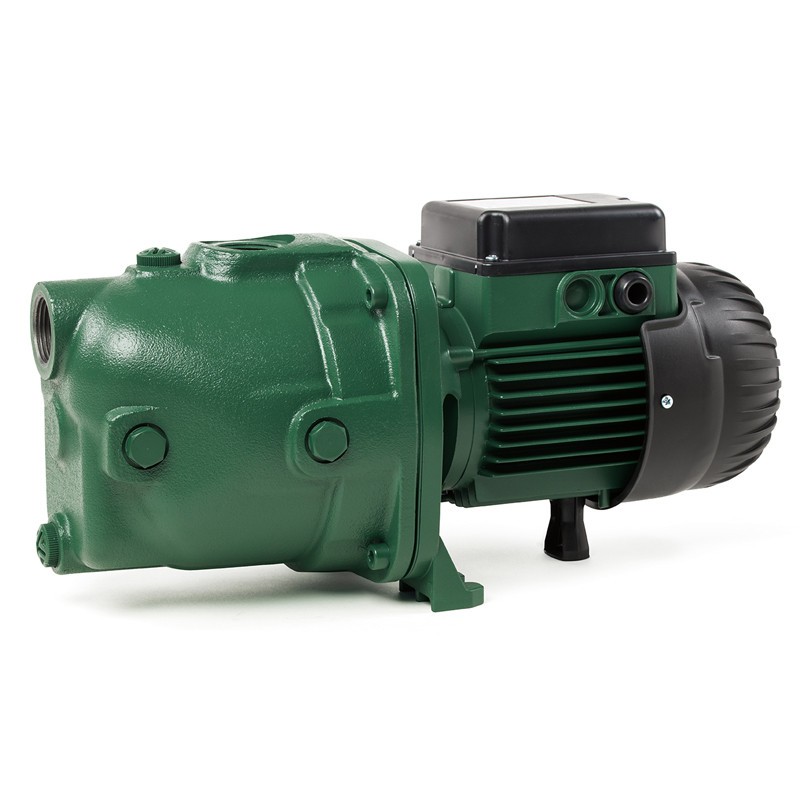

Motor construction features: Self-priming centrifugal pump with excellent suction capacity even in the presence of air bubbles. Suitable for use with water with small sandy impurities. Particularly suitable for water supply in domestic systems, small agriculture, gardening and generally where the self-priming function is needed.



Pump features:

• Cast iron pump body and motor support. Impeller, diffuser, venturi tube and sand guard made of technopolymer. Stainless steel shim rings. Carbon/ceramic mechanical seal.
• Asynchronous type, closed, externally ventilated cooled. Rotor mounted on ball bearings greased for life and oversized to ensure quiet operation and durability. Built-in thermo-amperometric protection and permanently inserted capacitor in the single-phase version. For protection of the three-phase motor, the use of a remote motor protector in accordance with current standards is recommended. Construction according to IEC 2-3 / IEC 61-69 (EN 60335-2-41) standards.



Characteristics:

• Pumped liquid: clean, free of solids or abrasive substances, nonviscous, nonaggressive, noncrystallized and chemically neutral
• Liquid temperature range: - 0°C to +35°C for domestic use (EN60335-2-41) - 0°C to +40°C for other uses
• Maximum ambient temperature: +40°C
• Maximum operating pressure: 6 bar (600 kPa)
• Installation: fixed in horizontal position
• Degree of motor protection: IP44
• Degree of protection of terminal box: IP55
• Insulation class F
• Weight (kg): 13.5
• Length/Depth (cm): 26.3
• Width (cm): 41.4
• Height (cm): 20.3
