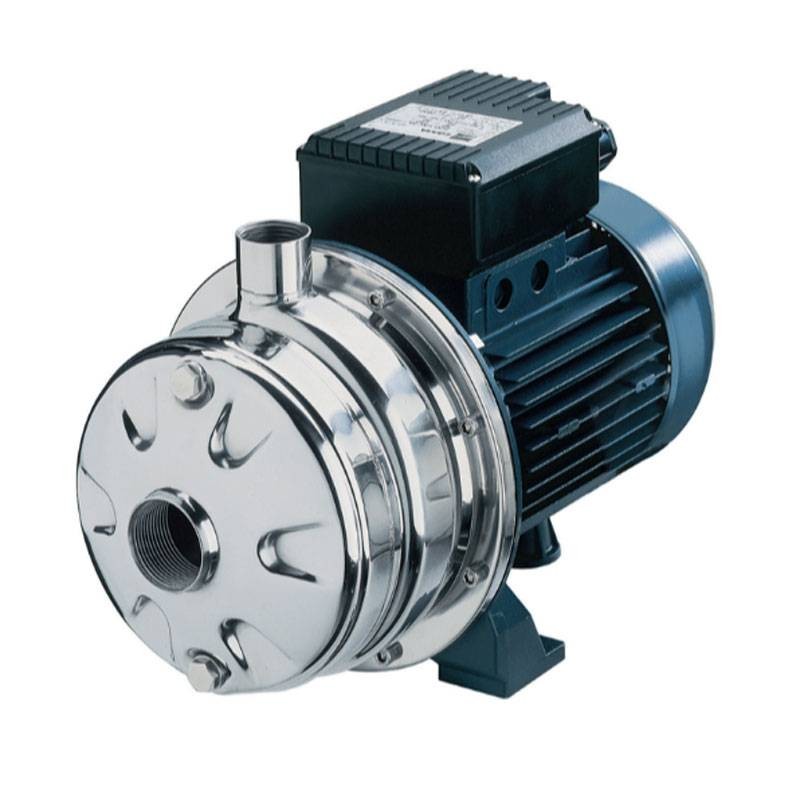

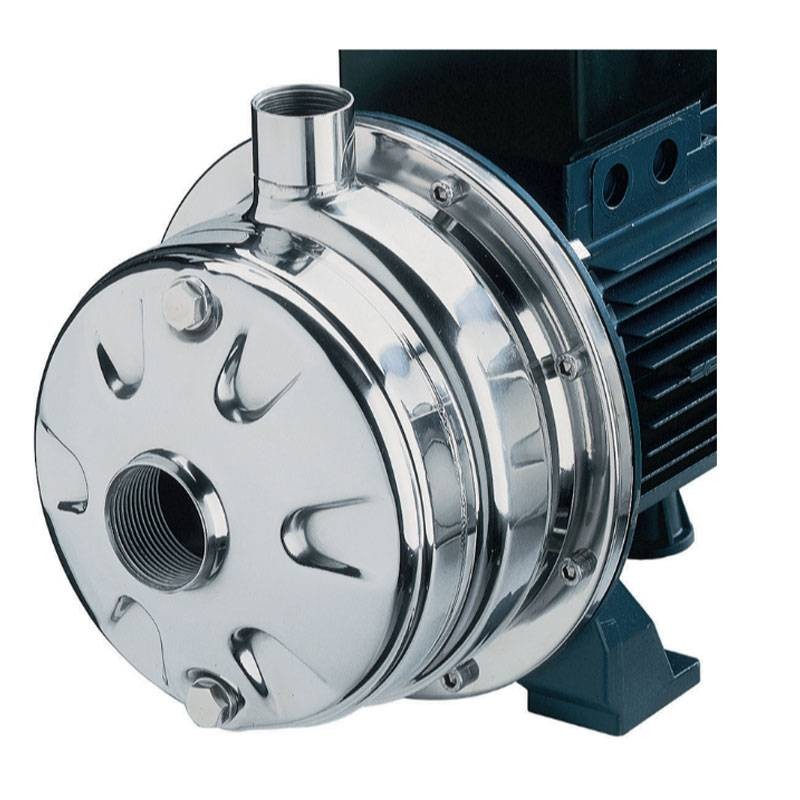

Ebara Single-phase Big-impeller Centrifugal Pump 2CDXM/E 70/15 IE2 AISI 304

Ebara Pompe
Ebara Pompe
EBA 1611150000E

Ebara big-impeller centrifugal pump version 2CDXM/E 70/15 IE2:



  • Single-phase 230V power supply
  • AISI 304 version
  • Power 2 HP - 1.5 kW
  • Minimum flow rate 52.5 meters / 20 l/minute
  • Max flow rate 36.5 meters / 80 l/minute
  • Absorbed current 9A
  • Connections: DNA G 1-1/4
  • DNM connections G 1
  • Weight 19 kg



Applications:

  • Domestic pressurization
  • Small garden irrigation
  • Flushing
  • Water treatment
  • Cooling towers
  • General clean water handling
Offer expires in
Do you have questions about this product or did you not find what you were looking for? Ask us!
Ebara Single-phase Big-impeller Centrifugal Pump 2CDXM/E 70/15 IE2 AISI 304
€483.13
€468.64
€468.64

Lowest price in 30 days:
€483.13
Save 3%
€468.64
Tax included
Calculate shipping cost
Offer expires in
Items Available: 2
Further availability of the manufacturer
€468.64

Buy it within and receive it from Friday, 26 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Big-impeller centrifugal pump with hydraulics made of AISI 304 stainless steel with radial impeller and with components obtained through the hydroforming process, which guarantees high corrosion resistance, high efficiency with more than80% efficiency, and low leakage. The versatility of these electric pumps is due to the different types of mechanical seals that can be applied.



The components of the 2CDX(L) electric pump are obtained through the renowned hydroforming process, which ensures robustness, hydraulic efficiency and reliability. The process uses a high-pressure fluid (up to 1200 bar) to form the metal. The hydraulic fluid, in our case water, with increasing pressure pushes the stainless steel to copy the shapes of the template until it makes contact with the inner walls of the die that makes up the mold.


This unique system, which combines the power of a press with the force of water, has significant advantages over traditional processes:

  • Perfectly smooth shape
  • Highly flowable
  • Seamless



These features ensure high corrosion resistance, high efficiency with more than 80 percent efficiency and low losses. Due to their compact size, 2CDX(L) electric pumps can be placed even in narrow or hard-to-reach spaces. The versatility of these electric pumps is due to the different types of mechanical seals that can be applied.



Features:

  • Max operating pressure 8 bar
  • Max liquid temperature -5°C ÷ +75°C for H, HS, HW, HSW versions -5°C ÷ +90°C for standard and E versions
  • Poles 2
  • Insulation class F
  • Degree of protection IP55
  • Single-phase version 1~230V ±10%



Materials:

  • Pump body Stainless steel AISI 304 (EN 1.4301) (2CDX)
  • Impeller Stainless steel AISI 304 (EN 1.4301) (2CDX)
  • Shaft Stainless steel AISI 304 (EN 1.4301) (2CDX)
  • Mechanical seal E = Graphite/Ceramic/EPDM
  • Motor support Aluminum



Dimensions:

  • Length 408 mm - Height 250 mm - Thickness 232 mm

There are no reviews

Data sheet

Type:
Centrifugal Pumps
Model:
Multistage
Connections:
1 inch
