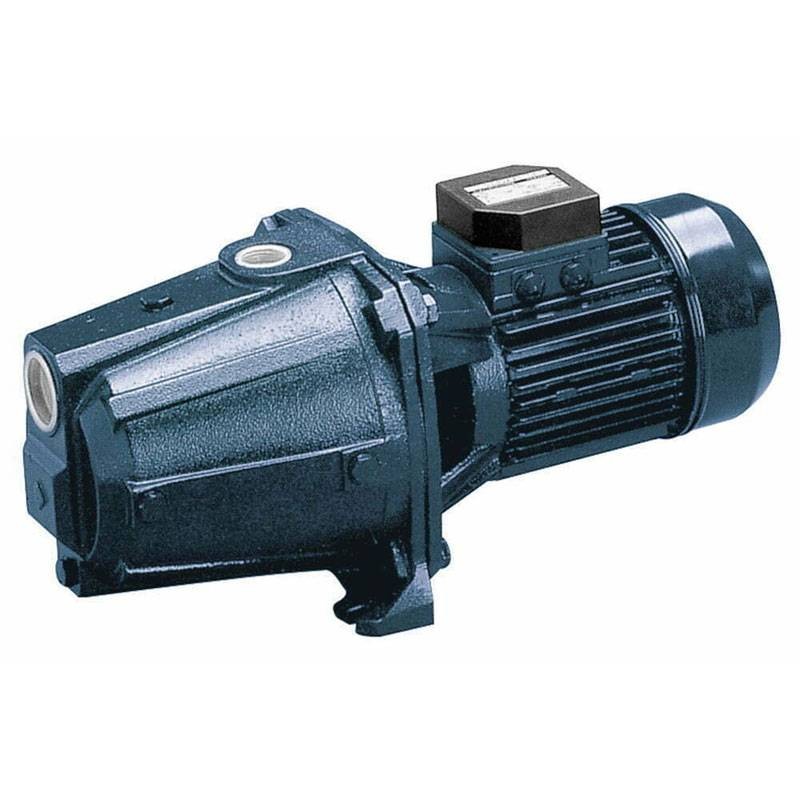

Self-priming Electric Pump EBARA AGA/E IE2 0.75 Hp Single Phase

Ebara Pompe
Ebara Pompe
EBA 1100090000E 8052990497287

Self-priming electric pump model EBARA AGA/E IE2:

  • Power 0.75 Hp/0.55kW
  • Power supply Single phase 230V
  • Minimum flow rate 45m-5L/min
  • Maximum flow rate 18m-50L/min
  • Current Consumption 4A
  • Connections DNA/DNM G 1 inch
  • Suction height 8m
  • Headroom 45m
  • Dimensions: height 185 mm - length 405 mm - depth 199 mm

Applications:

  • Domestic pressurization
  • Small garden irrigation
  • Vehicle washing
  • General clean water handling
Offer expires in
Do you have questions about this product or did you not find what you were looking for? Ask us!
Self-priming Electric Pump EBARA AGA/E IE2 0.75 Hp Single Phase
€149.43
€144.95
€144.95

Lowest price in 30 days:
€149.43
Save 3%
€144.95
Tax included
Calculate shipping cost
Offer expires in
Items Available: 5
Further availability of the manufacturer
€144.95

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

AGA self-priming electropumps are practical and easy to use, and they also allow easy installation due to their low weight. Installed on a flat, well-fixed surface, they allow suction up to 8 meters. Installation with a foot valve with filter allows for reliable operation. Its versatility and size also make it easy in maintenance operations.

Pump technical data:

  • Maximum operating pressure: 6 bar
  • Maximum liquid temperature: 45°C
  • Maximum suction depth: 8 m
  • Suction connection G1
  • G1 discharge connection

Motor technical data:

  • IE3 energy-efficient motors starting from 0.75kW
  • Self-ventilated 2-pole asynchronous motor
  • Insulation class F
  • IP44 degree of protection
  • Single-phase voltage 230V ±10% 50Hz
  • Permanently inserted capacitor and built-in self-resetting thermal overload protection for single-phase motor

Materials:

  • Cast iron pump body
  • AISI 304 seal holder disc for AGA 0.60-0.75-1.00
  • AISI 303 shaft (part in contact with the liquid)
  • Impeller in EPP+PS reinforced with glass fibers for AGA 0.60-0.75-1.00, in brass for the rest of the range
  • Mechanical seal in Ceramic/Carbon/NBR
  • Ejector and diffuser made of EPP+PS reinforced with glass fibers
  • Pump weight 12.50Kg

There are no reviews

Data sheet

Type:
Centrifugal Pumps
Model:
Self-priming
Connections:
1 inch
