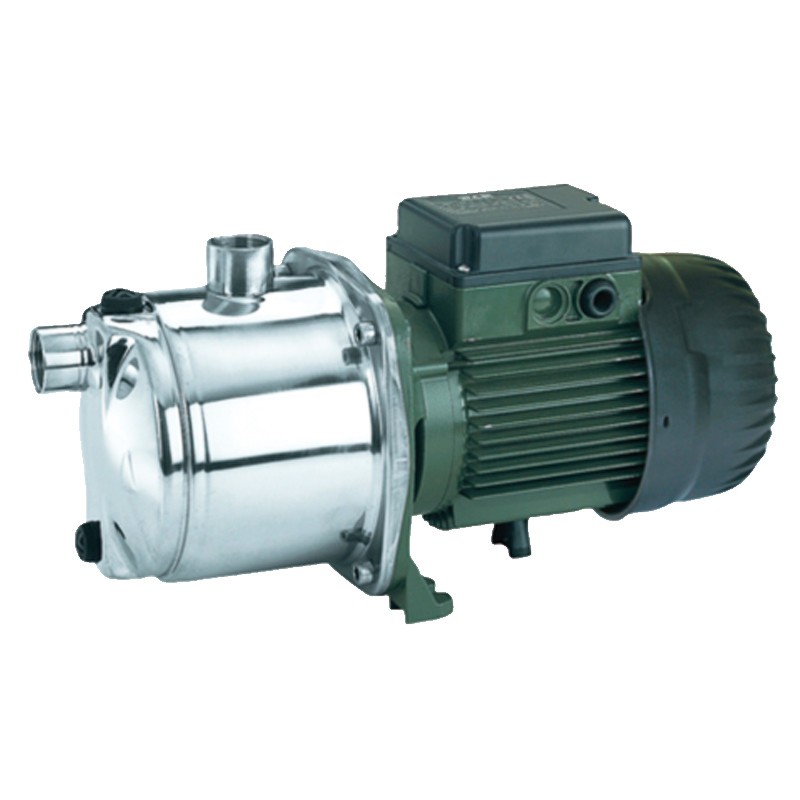

Centrifugal electric pump Dab EUROINOX 30/50 Multistage 102970260

Dab EUROINOX 30/50 1" Multistage Centrifugal Electric Pump 102970260

Dab
Dab
DAB 60213217 8019203107227

Centrifugal electric pump Dab EUROINOX 30/50 Multistage with horizontal axis, self-priming with excellent suction capacity even in the presence of air bubbles, characterized by extremely quiet operation suitable for domestic use for water supply and pressurization, irrigation of gardens and vegetable gardens, handling of water in general:



  • Max. operating pressure (bar): 8
  • Power (kW): 0.55
  • Maximum flow rate (m³/h): 4.8
  • Maximum head (m): 42
  • DNA GAS: 1"
  • DNM GAS: 1"
  • 3 impellers
  • Single-phase power supply



Pump with upgraded motor efficiency class IE2.

Offer expires in
Do you have questions about this product or did you not find what you were looking for? Ask us!
Centrifugal electric pump Dab EUROINOX 30/50 Multistage 102970260
Dab EUROINOX 30/50 1" Multistage Centrifugal Electric Pump 102970260
€260.83
€253.01
€253.01

Lowest price in 30 days:
€260.83
Save 3%
€253.01
Tax included
Calculate shipping cost
Offer expires in
Items Available: 9
Further availability of the manufacturer
€253.01

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Multistage centrifugal pump with horizontal axis, self-priming with excellent suction capacity even in the presence of air bubbles, characterized by extremely quiet operation. Suitable for domestic use for water supply and pressurization, irrigation of gardens and vegetable gardens, and general water handling.





PUMP CONSTRUCTION FEATURES

Stainless steel pump body. Die-cast aluminum motor support, AISI 304 steel seal holder cover. Carbon/ceramic mechanical seal. AISI 304 steel rotor shaft. Technopolymer impellers, diffuser bodies and diffusers. Stainless steel shim rings.



MOTOR CONSTRUCTION CHARACTERISTICS

Continuous duty asynchronous motor. Built-in thermal overload protection and permanently inserted capacitor for single-phase version.



Features:

  • Operating range: 10 to 80 liters/min with head up to 42 m.
  • Voltage: single-phase 220/240 V / 50 Hz
  • Maximum power: 0.88 kW
  • Rated power: 0.55 kW
  • Pumped liquid: clean, free of solids or abrasive substances, non-viscous, non-aggressive, non-crystallized and chemically neutral, close to the characteristics of water
  • Liquid temperature range:
    - 0°C to +35°C for domestic use (EN 60335-2-41)
    - 0°C to +40°C for other uses
  • Maximum ambient temperature: +50°C
  • Maximum operating pressure: 8 bar (800 kPa)
  • DNA GAS: 1"
  • DNM GAS: 1"
  • No. of impellers: 3
  • Installation: fixed or portable in horizontal position
  • Degree of protection of the motor: IP 44
  • Degree of protection of terminal box: IP 55
  • Insulation class F
  • Stainless steel pump body
  • Dimensions length, 38.4 cm width, 19.3 cm height
  • Weight kg 10.5

Matériel de qualité, livraison rapide, bon rapport qualité/prix. Site à conseiller !

ras ras ras ras ras ras ras ras ras ras

installazione e marcia ad oggi secondo le aspettative

Pas encore testé, mais c'est du classique et le prix est très serré ! Livraison éclair en période de noël.

Die Pumpe hat von den äußeren Abmessungen in den vorgegeben Einbauraum gepasst. Funktioniert soweit okay. Könnte aber während des Betriebs noch leiser sein. (Betriebsgeräusch)

Prima pomp, geeft voldoende druk. Geluid is oke

Read all reviews

Data sheet

Type:
Centrifugal Pumps
Model:
Multistage
Connections:
1 inch
