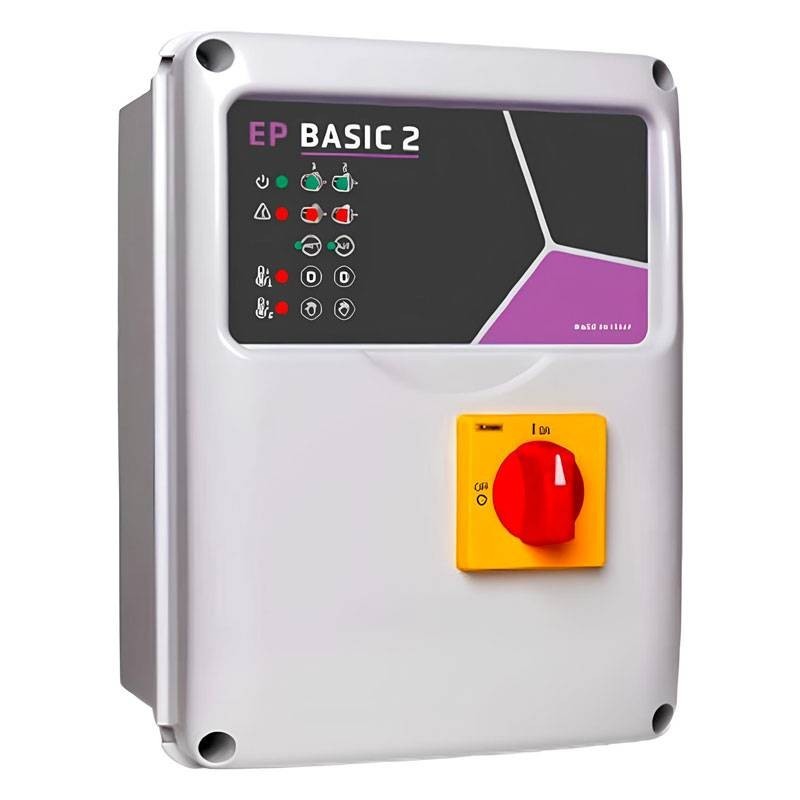

Electrical panel Ebara EP BASIC 2 for two electric pumps with alternation and backup
The electrical panel Ebara EP BASIC 2-Single/2.2 is designed for the control and protection of two single-phase electric pumps with power up to 2.2 kW each. Thanks to the integrated alternation and backup system, it ensures high reliability of the system: it automatically alternates the operation of the pumps with each cycle and activates the second pump in case of malfunction or increased flow demand.
It is the ideal solution for lifting stations, collection wells, clear water systems, wastewater and domestic or civil-industrial drainage systems.
Simple installation and replacement of existing panels

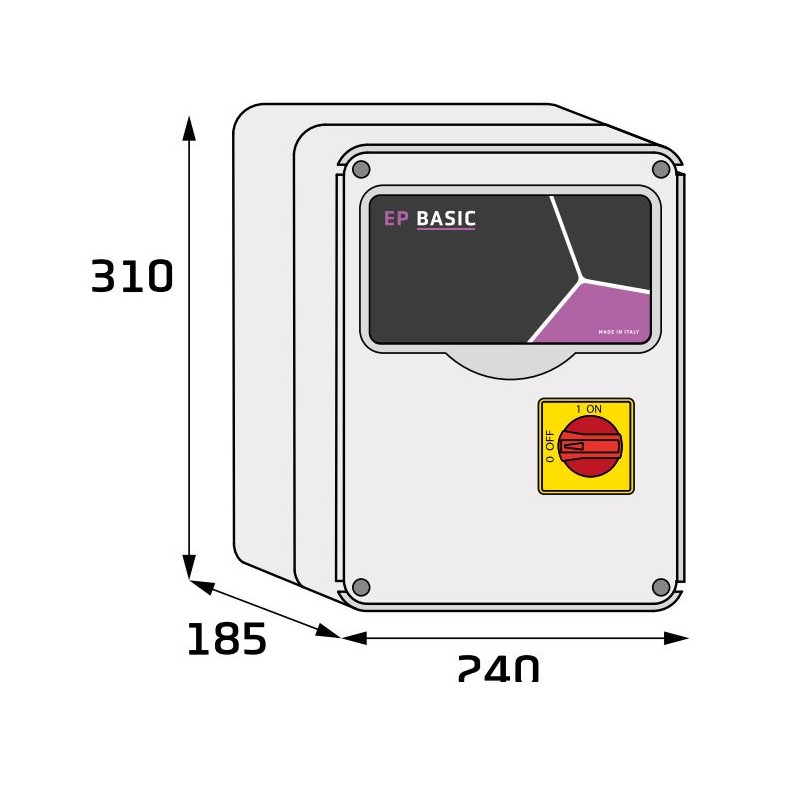

EP BASIC is extremely compact and made of high-strength plastic material. The robust structure and intuitive design allow:
- quick installation,
- practical connection even in retrofit,
- easy replacement of old panels already installed.
Programming is simple thanks to the front interface with LEDs and buttons, and can be further facilitated through a dedicated app, which allows advanced configuration and settings.
Integrated protections for maximum control
The panel includes a complete package of electrical and functional protections:
- Anti-seize self-test (can be disabled) to prevent pump blockage
- Dry run protection via level probes, floats or pressure switches
- Thermal inputs (clickson) with automatic reset (can be disabled)
- Logical input inversion (from NO to NC)
- Self-hold for start/stop floats (can be disabled)
- Selectable amperometric protection delay
- Automatic reset of minimum current alarm (can be disabled)
- Activation delay on network return (can be disabled)
These protections ensure service continuity, fault reduction, and long life of the electric pumps.
Versatile commands and operational logic
The panel offers complete control via front buttons:
- AUTOMATIC
- O (Stand-by)
- MANUAL (fixed or impulse)
Up to 4 command inputs for floats or pressure switches are available, allowing flexible configurations on systems with different levels of hydraulic control.
Additionally, the provision for run capacitors (single-phase version) allows versatile use with a wide range of electric pumps.
A competitive and cost-effective solution
EP BASIC stands out for being:
- Competitive: many functions in a single panel
- Intuitive: easy to configure and use
- Reliable: complete protections and self-diagnosis system
- Modular: prepared for expansions and additional connections
The result is an electrical panel that enhances the potential of the system, improves pump performance, and reduces the risk of system downtime.
| Model |
EP BASIC 2-Single/2.2 |
| Brand |
Ebara |
| Type |
Electronic panel for two single-phase electric pumps |
| Supply voltage |
1~230 V |
| Supported power |
2.2 kW / 3 HP |
| Adjustable current |
2 ÷ 18 A |
| Material |
High-strength plastic |
| Weight |
1.5 kg |
| Applications |
Clean water, wastewater, lifting, drainage |
| Integrated functions |
Alternation, backup, anti-seize, dry run |
| Inputs |
Up to 4 floats / pressure switches |
| Commands |
Automatic – O – Manual (fixed or impulse) |
| Safeties |
Clickson protection, programmable delays, self-hold, automatic resets |
