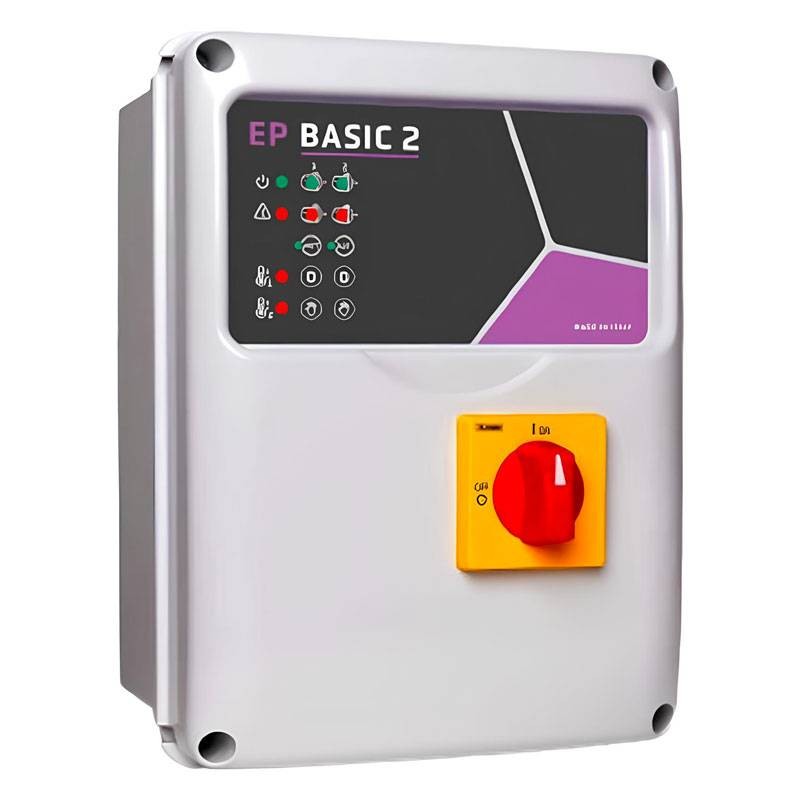

Electrical panel for Ebara Electric Pumps EP BASIC 2-Tri/7.5 Three-phase 400V 362334159A
EBA 362334159A
Ebara EP BASIC 2-Tri/7.5 electrical panel is the compact and versatile solution for controlling systems with clean or wastewater, featuring advanced functions, simplified installation, and complete protections, with the following characteristics:
-
Power supply: Three-phase 400V
-
Max supported power: 7.5 kW
-
Nominal current: 10 Amperes
-
Current adjustment range: 2 - 16 Amperes
-
Maximum supported current: 16 Amperes
-
Type of supported systems: Clean and wastewater
-
Available inputs: Up to 4 (floats, pressure switches, probes, klixons)
-
Protection degree: IP55
-
Box material: ABS
-
Signals: Status/Alarm LEDs
-
Installation: Wall, retrofit replacement
-
Front buttons: Automatic / Stand-by / Manual
€323.56
Items Available: 4
: 2
Compact and intelligent EP BASIC electrical panel for water systems
The EP BASIC electrical panel represents a professional and complete solution for the automatic management of electric pumps in clear and waste water lifting systems. Designed to facilitate both new installations and the replacement of existing panels, it stands out for its ease of use, simplified programming, and wide configuration flexibility.
Universal compatibility and versatile applications
Thanks to the predisposition for various types of inputs (floats, pressure switches, level probes, thermal relays), EP BASIC easily adapts to different system contexts, both civil and industrial. It is ideal for lifting systems, wells, septic tanks, and cisterns, offering a wide range of control and protection functionalities.
Intuitive functionalities accessible via app
Simple programming, also via dedicated app, allows for quick configuration of operating logics. EP BASIC is equipped with front buttons for automatic, manual (fixed or momentary), and stand-by operation, ensuring maximum operational flexibility for the installer.
Advanced electronic control and integrated protections
EP BASIC is equipped with an electronic current control system that allows:
-
Maximum current detection with assisted calibration
-
Minimum current protection (dry running) with auto-calibration
-
Phase sequence error detection, deactivatable if necessary
Among the included protections are:
-
Fuses for motor and auxiliary circuits
-
Door lock switch (if provided)
-
Selectable delays for recovery from alarms or voltage return
-
Auto hold and automatic reset of thermal relays
Automatic anti-seize function
The automatic anti-seize test function, activatable or deactivatable, performs scheduled unlocking cycles to avoid unwanted pump stops, particularly useful in systems with long inactivity or particularly loaded waters.
Intuitive alarm signals and management
A front LED panel signals in real-time the status of the panel and the presence of alarms, such as:
-
Motor overload
-
Dry running
-
Minimum current
-
Thermal relays
-
Voltage and levels
There is also an output contact for general alarm, useful for connection with supervision or remote control systems.
Technical Characteristics Electrical panel for Ebara Electric Pumps
| Power Supply and Power | |
|---|---|
| Power Supply | Three-phase 400V |
| Maximum supported power | 7.5 kW |
| Nominal current | 10A |
| Current adjustment range | 2 - 16A |
| Maximum supported current | 16A |
| Compatibility and Inputs | |
| Supported system types | Clean and waste water |
| Available inputs | Up to 4 (floats, pressure switches, probes, thermal relays) |
| Protections and Safety | |
| Included protections | Fuses, dry running, overcurrent, phase sequence |
| Protection degree | IP55 |
| Box material | ABS |
| Control and Signals | |
| Front buttons | Automatic / Stand-by / Manual |
| Signals | Status / alarm LEDs |
| Advanced functions | Self-test, auto hold, automatic reset, remote control via APP |
| Installation | |
| Installation type | Wall, retrofit replacement |
There are no reviews
Data sheet
- Type: Control panels for pumps
