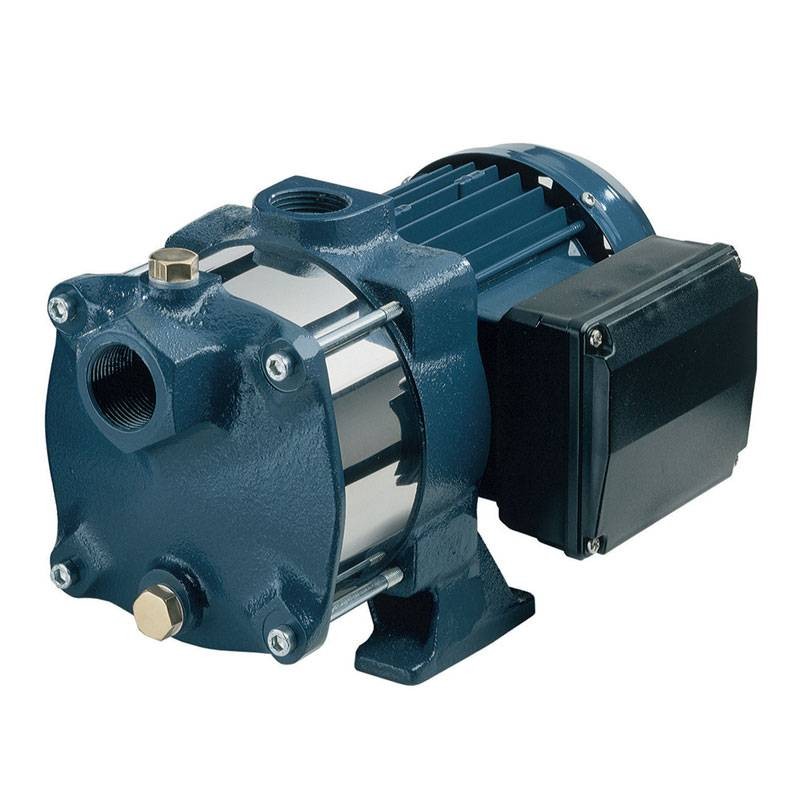

Ebara Compact/E AM/0.60 Hp Single-phase Multistage Centrifugal Electric Pump IE2

Ebara Pompe
Ebara Pompe
EBA 1480020000E 8052990497485

Ebara Compact/E IE2 horizontal multistage centrifugal electric pump AM/6 cast iron model:



  • Power 0.6 Hp/ 0.44 kW
  • Power supply Single-phase 230V
  • Energy class IE2
  • Minimum flow rate 30.7m-20L/min
  • Maximum flow rate 9m-80L/min
  • Head 30.7 m
  • Degree of protection IP44
  • Suction height 8 meters
  • Liquid temperature 40° C
  • Connections: DNA G1" - DNM G1"



Applications:

  • Domestic pressurization
  • Pressure boosting in general
  • Small garden irrigation
  • Vehicle washing
  • Moving clean water
Offer expires in
Do you have questions about this product or did you not find what you were looking for? Ask us!
Ebara Compact/E AM/0.60 Hp Single-phase Multistage Centrifugal Electric Pump IE2
€188.04
€182.40
€182.40

Lowest price in 30 days:
€188.04
Save 3%
€182.40
Tax included
Calculate shipping cost
Offer expires in
Items Available: 3
Further availability of the manufacturer
€182.40

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Compact multistage electric pumps, thanks to their compact size, are easy to install even in situations where spaces are tight or difficult to reach. Its combined robust and reliable design enables it to offer high performance in all water handling applications.



Pump technical data:

  • Maximum operating pressure: 10 bar
  • Maximum liquid temperature: 40°C
  • Suction connection G1
  • G1 discharge connection



Motor technical data:

  • IE2 energy-efficient motors
  • Self-ventilated 2-pole asynchronous motor
  • Insulation class F
  • IP44 degree of protection
  • Single-phase voltage 230V ± 10% 50Hz
  • Permanently inserted capacitor and built-in self-resetting thermal overload protection for single-phase motor



Material:

  • Cast iron pump body and support
  • AISI 304 outer jacket
  • Impeller and diffuser made of glass-fiber reinforced EPP+PS
  • Stages made of glass fiber reinforced PPE+PS/PTFE
  • Shaft in AISI 416
  • Mechanical seal in Ceramic/Carbon/NBR



Dimensions:

  • Height 166 mm - Width 333 mm - Depth 183 mm
  • Weight 9.3 kg

There are no reviews

Data sheet

Type:
Centrifugal Pumps
Model:
Multistage
Connections:
1 inch
