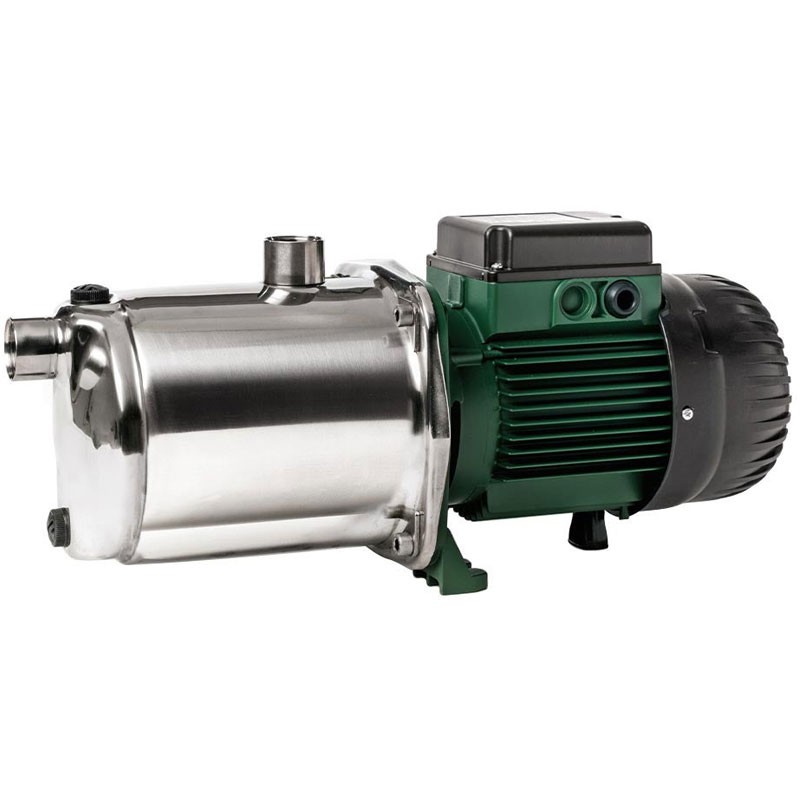

Dab EUROINOX 40/50M multistage centrifugal pump 0.75 kW 1 inch 102970280

Dab
Dab
DAB 60212488 8019203107050

Multi-stage centrifugal electric pump Dab EUROINOX 40/50 M IE2 with horizontal axis, self-priming, with the following characteristics



  • Power supply: single-phase 1x220-240V
  • DNA GAS: 1 inch
  • DNM GAS: 1 inch
  • Power (kW): 0.75
  • Max flow rate 4.8 m³/h
  • Max head 58 m
  • Maximum operating pressure (bar): 8
  • 4 impellers
  • Ampere: 5.3



Pump with upgraded version efficiency motor class IE2.

Offer expires in
Do you have questions about this product or did you not find what you were looking for? Ask us!
Dab EUROINOX 40/50M multistage centrifugal pump 0.75 kW 1 inch 102970280
€296.10
€287.21
€287.21

Lowest price in 30 days:
€296.10
Save 3%
€287.21
Tax included
Calculate shipping cost
Offer expires in
Items Available: 6
Further availability of the manufacturer
€287.21

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Multistage centrifugal pump with horizontal axis, self-priming with excellent suction capacity even in the presence of air bubbles, characterized by extremely quiet operation suitable for domestic use for water supply and pressurization, irrigation of gardens and vegetable gardens, handling of water in general.



Pumped liquid: clean, free of solids or abrasive substances, non-viscous, non-aggressive, non-crystallized and chemically neutral, close to the characteristics of water.



Pump construction features:

  • Stainless steel pump body
  • Die-cast aluminum motor support, AISI 304 steel seal holder cover. Carbon/ceramic mechanical seal
  • AISI 304 steel rotor shaft
  • Technopolymer impellers, diffuser bodies and diffusers
  • Shim rings made of stainless steel.



Motor construction features:

  • Continuous-duty asynchronous motor
  • Built-in thermal overload protection and permanently inserted capacitor for single-phase version
  • User-operated protection for the three-phase version
  • Pump with upgraded version motor efficiency class IE2



Features:

  • Operating range: 10 to 80 liters/min with head up to 58 m
  • Voltage: single-phase 220/240 V / 50 Hz
  • Maximum power: 1.2 kW
  • Rated power: 0.75 kW
  • Pumped liquid: clean, free of solids or abrasive substances, non-viscous, non-aggressive, non-crystallized and chemically neutral, close to the characteristics of water
  • Liquid temperature range:
    - 0°C to +35°C for domestic use (EN 60335-2-41)
    - 0°C to +40°C for other uses
  • Maximum ambient temperature: +50°C
  • Maximum operating pressure: 8 bar (800 kPa)
  • DNA GAS: 1"
  • DNM GAS: 1"
  • No. of impellers: 4
  • Installation: fixed or portable in horizontal position
  • Degree of protection of the motor: IP 44
  • Degree of protection of terminal box: IP 55
  • Insulation class F
  • Stainless steel pump body
  • Dimensions length, 45.8 cm width, 20.3 cm height
  • Weight kg 14.6

Très bonne pompe avec beaucoup de pressions

Macht was sie soll Ersetzt die Alte die 15 Jahre ihr Dienst getan hat

Read all reviews

Data sheet

Type:
Centrifugal Pumps
Model:
Multistage
Connections:
1 inch
