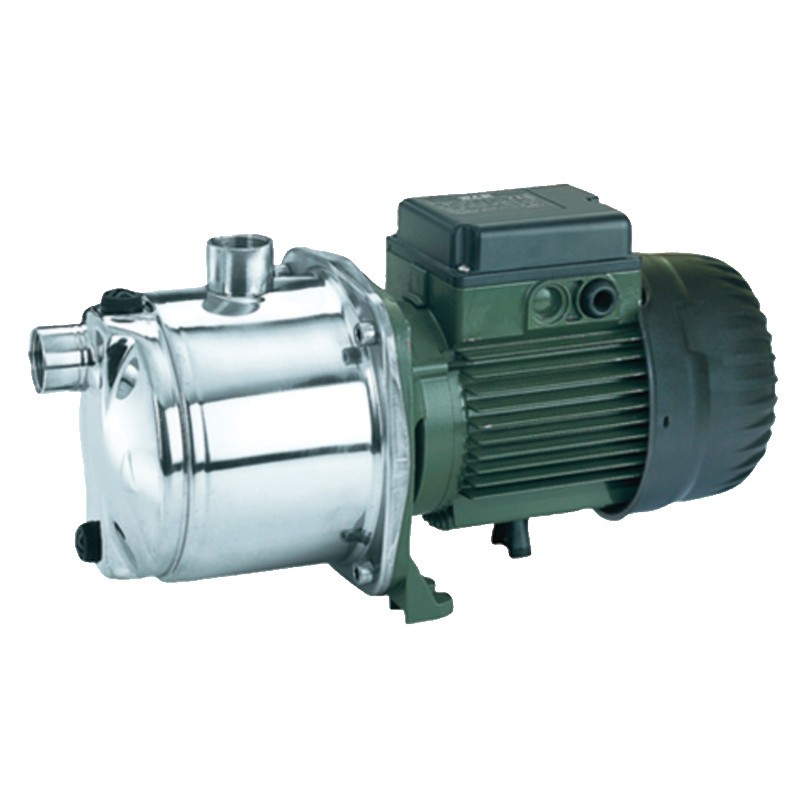

Multistage centrifugal pump with horizontal axis, self-priming with excellent suction capacity even in the presence of air bubbles, characterised by extremely quiet operation. Suitable for domestic use for water supply and pressurisation, irrigation of gardens and vegetable gardens, and water handling in general.
It features a die-cast aluminium motor support, as well as a solid seal cover, made of durable AISI 304 steel. The mechanical seal of this DAB multistage pump is made of carbon and ceramic, while the rotor shaft is made of AISI 304 steel, enabling this centrifugal pump to achieve even higher performance.
The Euroinox series, on the other hand, features a stainless steel pump casing to ensure a longer service life.
PUMP CONSTRUCTION FEATURES:
Stainless steel pump body. Die-cast aluminium motor support, AISI 304 steel seal cover. Carbon/ceramic mechanical seal. AISI 304 steel rotor shaft. Technopolymer impellers, diffuser bodies and diffusers. Stainless steel shim rings
MOTOR CONSTRUCTION CHARACTERISTICS:
Continuous duty asynchronous motor. Built-in thermal-amperometric protection and permanently inserted capacitor for single-phase version
Technical characteristics:
- Operating range: 0 to 80 litres/min. with head of 26 to 72 metres
- Voltage: single-phase 220/240 V / 50 Hz
- Pumped liquid: clean, free of solids or abrasive substances, non-viscous, non-aggressive, non-crystallised and chemically neutral, close to the characteristics of water
- Liquid temperature range: - 0°C to +35°C for domestic use (EN 60335-2-41), 0°C to +40°C for other uses
- Maximum ambient temperature: + 50°C
- Maximum operating pressure: 8 bar (800 kPa)
- DNA GAS: 1 inch
- DNM GAS: 1 inch
- No. of impellers: 5
- Installation: fixed or portable in horizontal position
- Degree of protection of motor: IP 4
- Degree of protection of terminal box: IP55
- Insulation class F
- Stainless steel pump body
- Dimensions: length, 45.8 cm width, 20.3 cm height
- Weight kg 15.1
