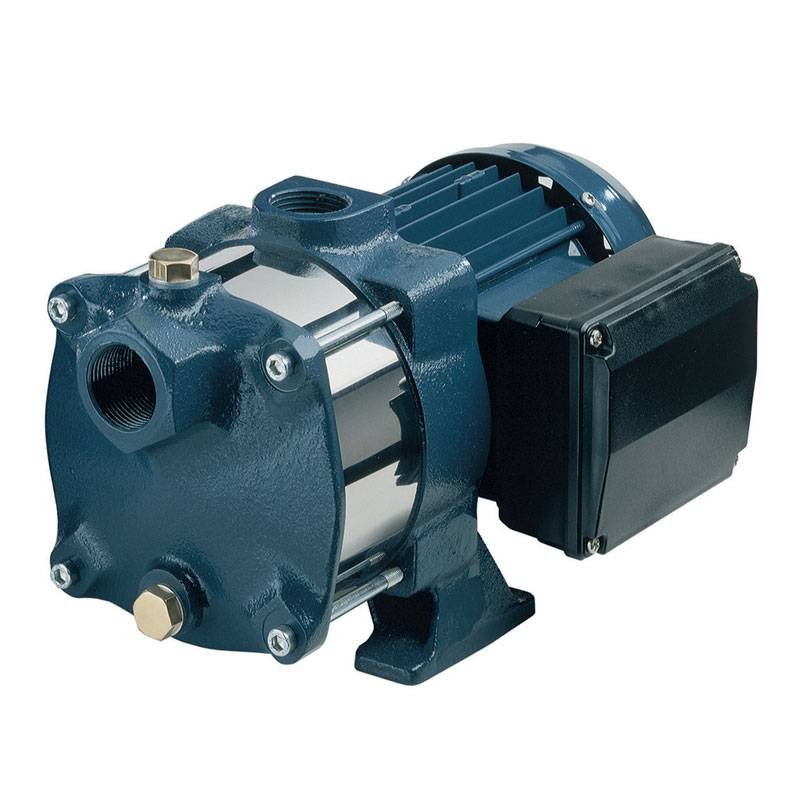

Ebara Compact/E AM/1.0 Hp Multistage Centrifugal Electric Pump IE2 Single-phase

Ebara Pompe
Ebara Pompe
EBA 1480040000E 8052990497508

Ebara Compact/E IE2 horizontal multistage centrifugal electric pump model AM/10 in cast iron:



  • Power 1.0 Hp/ 0.75 kW
  • Power supply Single-phase 230V
  • Energy class IE2
  • Minimum flow rate 56.5m- 20L/min.
  • Maximum flow rate 20m-80L/min.
  • Prevalence 56.5m
  • Degree of protection IP44
  • Suction height 8m
  • Liquid temperature 40° C
  • Connections: DNA G1" - DNM G1"



Applications:

  • Domestic pressurization
  • Pressure boosting in general
  • Small garden irrigation
  • Vehicle washing
  • Moving clean water
Offer expires in
Do you have questions about this product or did you not find what you were looking for? Ask us!
Ebara Compact/E AM/1.0 Hp Multistage Centrifugal Electric Pump IE2 Single-phase
€267.35
€259.33
€259.33

Lowest price in 30 days:
€267.35
Save 3%
€259.33
Tax included
Calculate shipping cost
Offer expires in
Items Available: 2
Further availability of the manufacturer
€259.33

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Compact multistage electric pumps, thanks to their compact size, are easy to install even in situations where spaces are tight or difficult to reach. Its sturdy and reliable united construction enables it to offer high performance in all water handling applications.



Pump technical data:

  • Maximum operating pressure: 10 bar
  • Maximum liquid temperature: 40°C
  • Suction connection G1
  • G1 discharge connection



Motor technical data:

  • IE2 energy-efficient motors
  • Self-ventilated 2-pole asynchronous motor
  • Insulation class F
  • IP44 degree of protection
  • Single-phase voltage 230V ± 10% 50Hz
  • Permanently inserted capacitor and built-in self-resetting thermal overload protection for single-phase motor



Material:

  • Cast iron pump body and support
  • AISI 304 outer jacket
  • Impeller and diffuser made of glass-fiber reinforced EPP+PS
  • Stages made of glass fiber reinforced PPE+PS/PTFE
  • Shaft in AISI 416
  • Mechanical seal in Ceramic/Carbon/NBR



Dimensions:

  • Height 166 mm - Width 426 mm - Depth 193.5 mm
  • Weight 10.3 kg

There are no reviews

Data sheet

Type:
Centrifugal Pumps
Model:
Multistage
Connections:
1 inch
