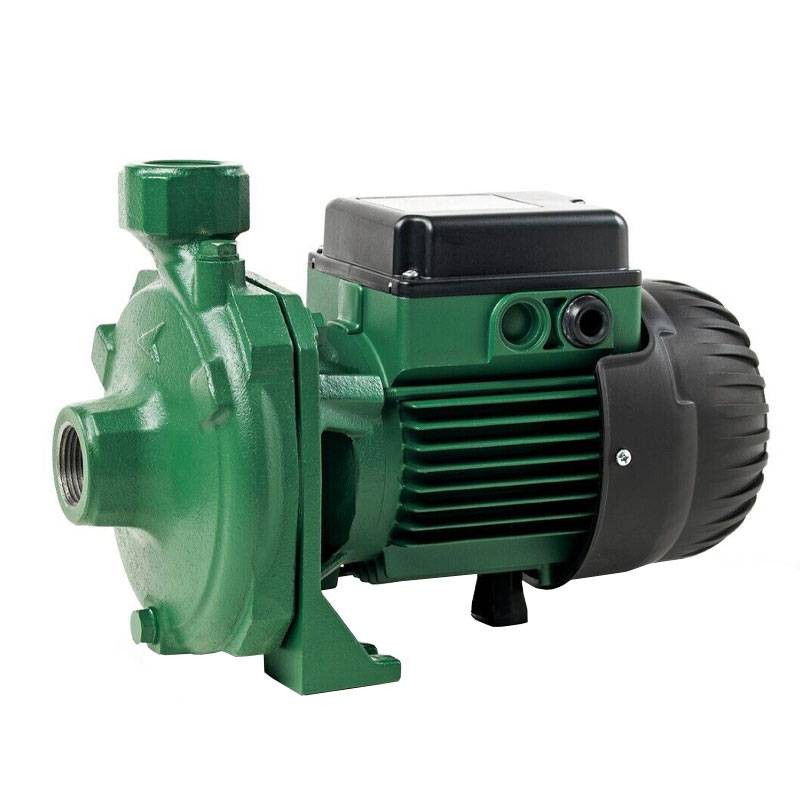

DAB K45/50M Centrifugal Electric Pump 1.5HP 1.1kW Bigirating 60211561

Dab
Dab
DAB 60211561 8059893328281

DAB Bigirant Centrifugal Electric Pump K45/50M 1.5HP 1.1kW single-phase with the following features:



  • Model: K 45/50 M single-phase
  • Power supply: 230V
  • Frequency: 50Hz
  • Power: 1.1kW (1.5HP)
  • Capacitor capacity: 31.5mF
  • RPM 2800
  • Current In 8.3
  • Connection: DNA 1-1/4 inch
  • DNM 1 inch connection
  • Liquid temperature range: -10°C to +50°C
  • Maximum operating pressure: 8 bar (800 kPa)
  • Maximum ambient temperature: +40°C
  • Pump with upgraded version motor efficiency class IE2




This pressure vessel pump is a DAB Centrifugal Big-Air Pump, perfect for all those interested in building pressurization units in domestic, civil and industrial water systems, Suitable for sprinkler irrigation and other general water supply uses.



Fixed, horizontal or vertical installation as long as the motor is positioned above the pump.

Offer expires in
Do you have questions about this product or did you not find what you were looking for? Ask us!
DAB K45/50M Centrifugal Electric Pump 1.5HP 1.1kW Bigirating 60211561
€377.94
€366.60
€366.60

Lowest price in 30 days:
€377.94
Save 3%
€366.60
Tax included
Calculate shipping cost
Offer expires in
Items Available: 3
Further availability of the manufacturer
€366.60

Buy it within and receive it from Friday, 26 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

The K 45/50 M is a robust, high-quality centrifugal pump from the renowned DAB brand. This centrifugal pump is suitable for pumping large amounts of water and can therefore be used for irrigating gardens and grounds.



The DAB k 45/50 M pump proves itself for both sprinkler irrigation and other uses and types of water supply. The solidity of this DAB centrifugal pump is provided by a very solid pump body and motor support made entirely of cast iron, unlike the impeller, which is designed in technopolymer.



The pump shaft is offered in stainless steel, while the mechanical seal features double-used carbon/ceramic. The equipment motor of this electric water pump is: asynchronous, enclosed and externally ventilated cooled.



This centrifugal pump for pressure vessel and irrigation distributed by the prestigious brand DAB PUMPS can boast built-in thermo-amperometric protection and in the single-phase version also a permanently inserted capacitor. Centrifugal big-impeller pump, suitable for making pressurization units in water systems and pressure vessel supply. Suitable for sprinkler irrigation and other general water supply uses.



Features:

  • Cast iron pump body and motor support
  • Technopolymer impeller
  • Stainless steel shaft
  • Carbon/ceramic mechanical seal
  • Asynchronous type motor, enclosed and cooled by external ventilation
  • Built-in thermo-amperometric protection and permanently inserted capacitor for single-phase version
  • For the protection of the three-phase motor, the use of a remote motor protector is recommended in accordance with current standards
  • Maximum ambient temperature: +40°C
  • Degree of protection: IP44
  • Degree of protection at terminal block: IP55
  • Insulation class: F
  • Can operate continuously
  • Does not have dry running protection and does not have the automatic on/off function, functions available by adopting DAB Control-D



Since it is a centrifugal pump, some precautions should be taken before putting it into operation:

  • There must be water available inside the pump immediately
  • Use a suction hose with a check valve
  • Fill the pipe completely with water
  • Fill the entire pump body with water
  • These preventive measures ensure immediate use of the pump and increased product life
  • The hose that can be used with this pump has a 1-inch diameter for the delivery port and a 1.25-inch diameter for the suction port
  • Sucks water from a maximum depth of 8 meters
  • The maximum head is 47 meters, equivalent to 4.7 bar at the outlet



Motor characteristics:

  • Asynchronous type enclosed and cooled by external ventilation
  • Rotor mounted on greased-for-life, oversized ball bearings to ensure quiet operation and durability
  • Built-in thermal-amperometric protection and permanently inserted capacitor in the single-phase version
  • For protection of the three-phase motor, the use of a remote motor protector in accordance with current standards is recommended
  • Construction according to IEC 2-3 standards
  • IE2 motors standard from 0.75 kW up to 5.5 Kw - IE3 - 7.5 Kw

There are no reviews

Data sheet

Type:
Centrifugal Pumps
Model:
Multistage
Connections:
1 inch
1-1/4 inches
