Self-priming Electric Pump EBARA AGA/E IE2 1.00 Hp Single Phase

Ebara Pompe
Ebara Pompe
EBA 1100100000E 8052990497300

Self-priming electric pump model EBARA AGA/E IE2:



  • Power 1.00 Hp/0.75kW
  • Power supply Single-phase 230V
  • Minimum flow rate 47.5m-5L/min.
  • Maximum flow rate 23m-60L/min.
  • Current consumption 5.5A
  • Connections DNA/DNM G1"
  • Suction height 8 m
  • Headroom 45m

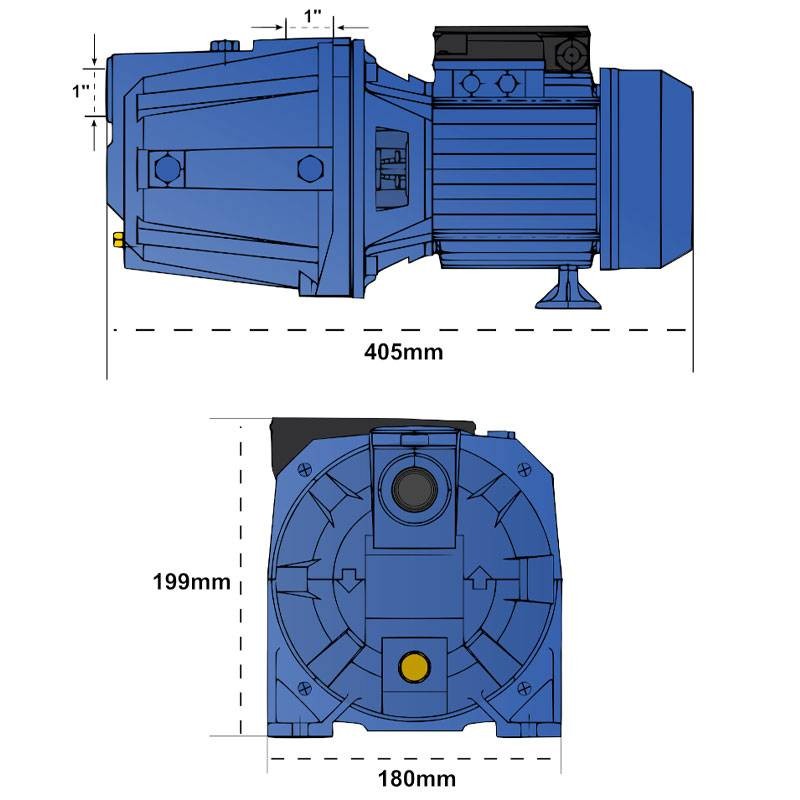

  • Dimensions: height 185 mm - length 405 mm - depth 199 mm




Applications:

  • Domestic pressurization
  • Small garden irrigation
  • Vehicle washing
  • General clean water handling
Offer expires in
Do you have questions about this product or did you not find what you were looking for? Ask us!
Self-priming Electric Pump EBARA AGA/E IE2 1.00 Hp Single Phase
€158.63
€153.87
€153.87

Lowest price in 30 days:
€158.63
Save 3%
€153.87
Tax included
Calculate shipping cost
Offer expires in
Items Available: 3
Further availability of the manufacturer
€153.87

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

AGA self-priming electropumps are practical and easy to use, and they also allow easy installation due to their low weight. Installed on a flat, well-fixed surface, they allow suction up to 8 meters. Installation with a foot valve with filter allows for reliable operation. Its versatility and size also make it easy in maintenance operations.



Pump technical data:

  • Maximum operating pressure: 6 bar
  • Maximum liquid temperature: 45°C
  • Maximum suction depth: 8 m
  • Suction connection G1
  • G1 discharge connection



Motor technical data:

  • IE3 energy-efficient motors starting from 0.75kW
  • Self-ventilated 2-pole asynchronous motor
  • Insulation class F
  • IP44 degree of protection
  • Single-phase voltage 230V ±10% 50Hz
  • Permanently inserted capacitor and built-in self-resetting thermal overload protection for single-phase motor



Materials:

  • Cast iron pump body
  • AISI 304 seal holder disc for AGA 0.60-0.75-1.00
  • AISI 303 shaft (part in contact with the liquid)
  • Impeller in EPP+PS reinforced with glass fibers for AGA 0.60-0.75-1.00, in brass for the rest of the range
  • Mechanical seal in Ceramic/Carbon/NBR
  • Ejector and diffuser made of EPP+PS reinforced with glass fibers
  • Pump weight 13.80Kg

There are no reviews

Data sheet

Type:
Centrifugal Pumps
Model:
Self-priming
Connections:
1 inch
