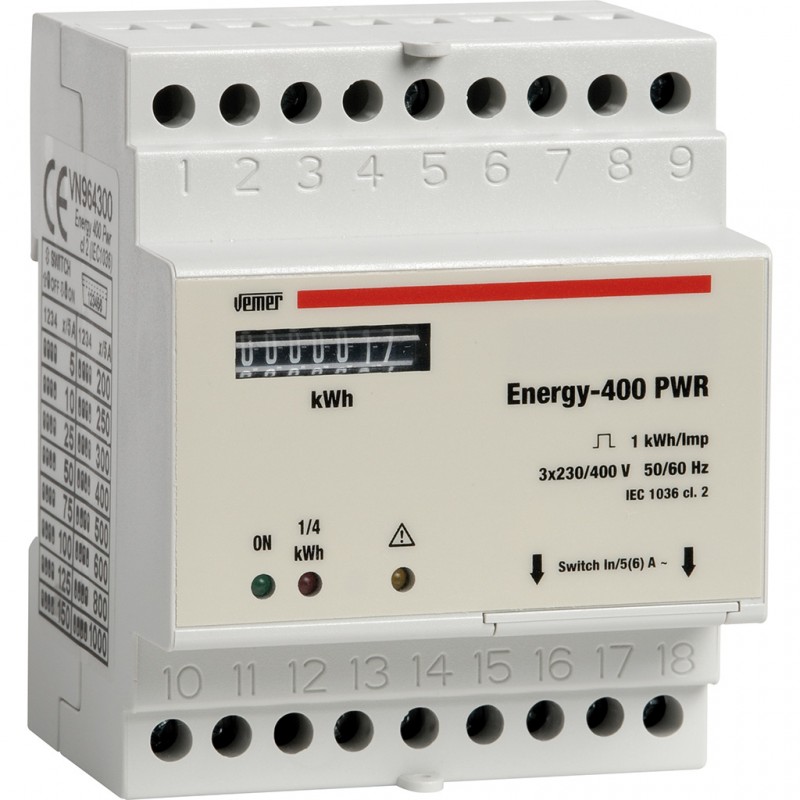

Vemer Energy-400 PWR three-phase energy meter 4 modules VN964300
VEM VN964300
8007951053262
Static energy meter for Vemer din bar, with the following characteristics:
- Power supply 3x230 (400) Vac - 50/60Hz
- Maximum voltage 400 V
- Maximum current 1000 A via CT x/5
- Measurement resolution 1 kWh
- Suitable for displaying active energy consumption in three-phase 400V systems with or without neutral
- Has a pulse output for remote energy counting
- Measurement resolution 1 kWh
- 7-digit counter
- 4 DIN modules
€187.73
Items Available: 4
Features:
- Vemer series
- Suitable for displaying active energy consumption in 400V three-phase systems with or without neutral
- The current insertion must be carried out by means of an amperometric transformer and the secondaries cannot be connected to the ground.
- It has a pulse output for remote energy counting
- Power supply 3x230 (400) Vac - 50/60Hz
- DIN rail mounting
- Maximum voltage 400 V
- Maximum current 1000 A through TA x/5
- Measurement resolution 1 kWh
- Counter 7 digits
- 4 DIN modules
Data sheet
- Type: Electricity meters
- Voltage: 400VAC
- Amps: 1000A
