Perry 100A 3-Phase Electricity Meter 4 Modules 1SDSD10CET4MB
PER 1SDSD10CET4MB
8019108037278
Perry three-phase Electricity meter with the following characteristics:
- Rated voltage: 3x230/400V
- Input current: 100A max
- Power supply: 400V ±20% 50Hz
- Pulse output of 30ms 1000 pulses/kWh
- RS485 output with Modbus protocol
- Reading resolution: 0.1 kWh

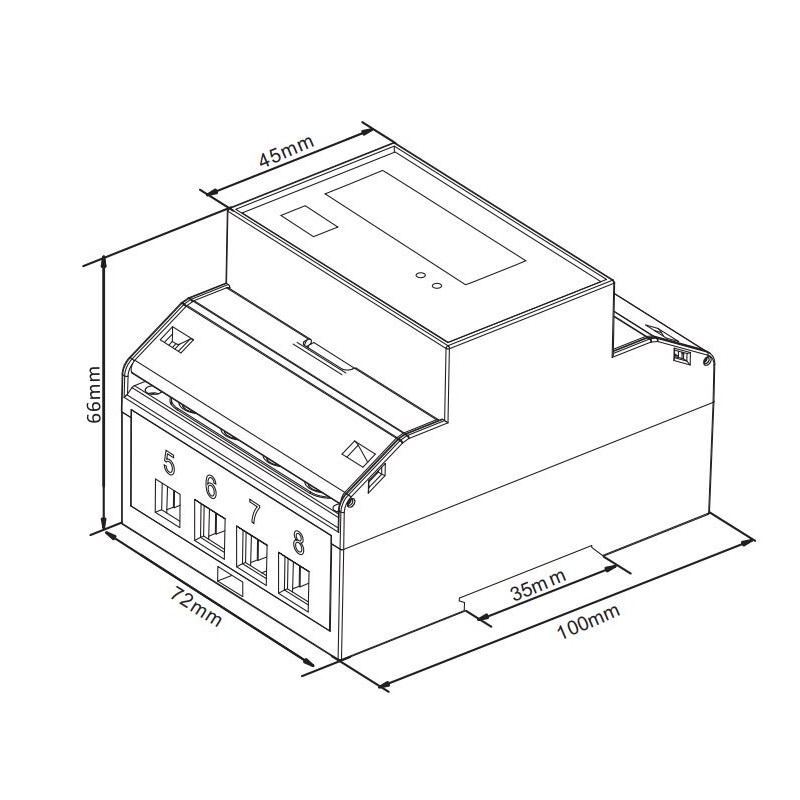

- Dimensions: 72x100x66 mm (WxDxH)

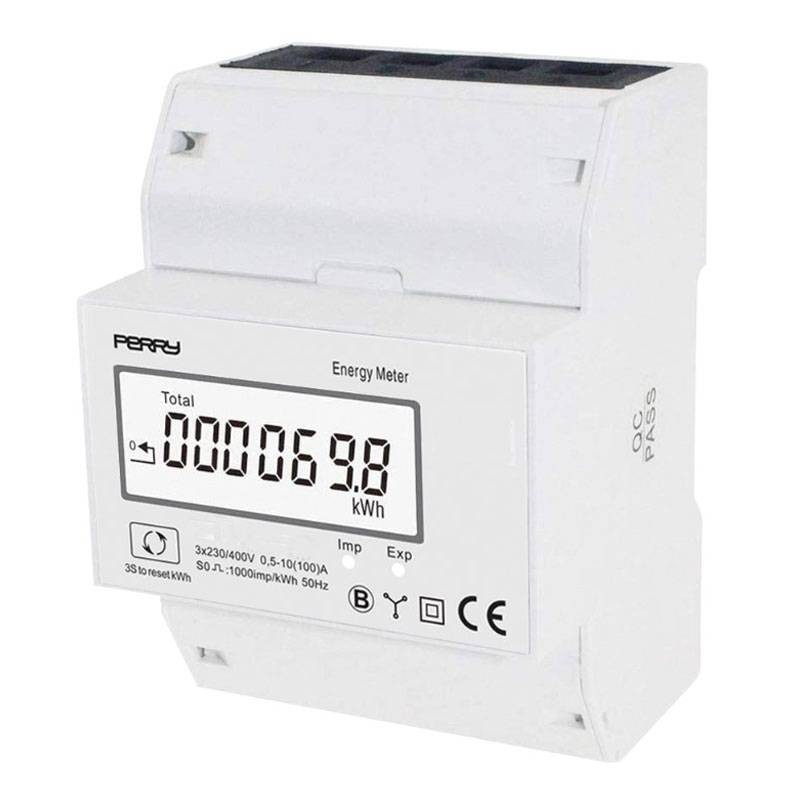

Three-phase four-wire energy meter with white backlit LCD screen for perfect reading. It is used to measure three-phase energy in commercial and industrial applications.
€143.14
Items Available: 1
Safety instructions:
- Use only tools with insulation for installation
- Ensure that mains power is disconnected before installing or servicing
- Only place the meter in a dry environment
- Do not mount the meter in an explosive area or expose it to dust, mold and insects
- Ensure that the cables used are suitable for the maximum current used by the meter
- Ensure that the cables are properly connected before turning on the current/voltage to the meter
- Do not touch the connection terminals of the meter directly with bare hands, metal, or other conductive material because you may suffer electric shock
- Ensure that the terminal protection cover is properly in place after installation
- Installation, maintenance, and repair work should only be carried out by qualified personnel
- Never break the seals and open the front cover because the functionality of the meter may be adversely affected. In addition, such an action would render the warranty null and void
- Do not let the meter fall or suffer shocks because there are high-precision components inside that could break
Features:
- Counters energy consumption Active in 400V AC three-phase systems with neutral, up to the maximum current of 100A
- Electronic transistor pulse output, for remote consumption signaling
- RS485 output with Modbus protocol
- Pulse output of 30ms 1000 pulses/kWh
- Power supply 400V ±20% 50Hz
- Reading resolution 0.1 kWh
- Accuracy Class B
- Digital number 6 integers + 1 decimal
- Rated voltage 3x230/400V
- Input current 100A max
- Standards Class B EN50470-3, MID
There are no reviews
Data sheet
- Type: Electricity meters
- Voltage: 230/400VAC
- Amps: 100A
