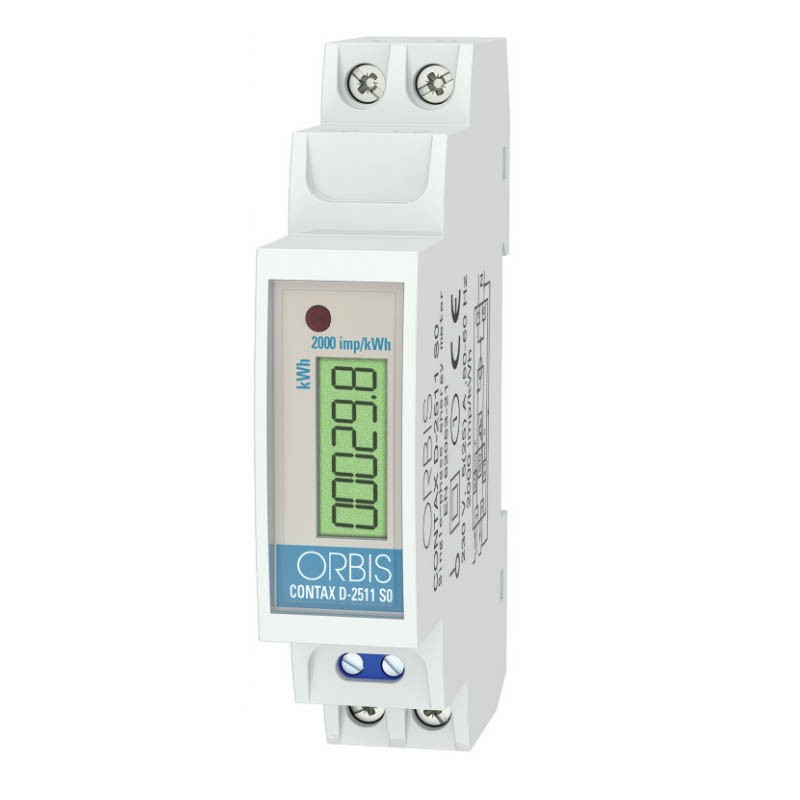

Modular energy meter Orbis CONTAX D-2511 SO digital OB701100
ORB OB701100
8426709112844
Orbis single-phase modular digital energy meter, with the following features:
- Allows the active energy consumption in a given installation to be monitored.
- Direct insertion
- Operating current 0.025A up to 25A
- Rated voltage 230 Vac
- Operating voltage limit from 125 Vac up to 265 Vac
- Frequency 50/60 Hz
- Accuracy class 1
- Operating temperature from -20°C to +50°C
- 35 mm Din rail installation
- Pulse output for PC visualization, through appropriate software and relative concentrator module
Modular energy meter Orbis CONTAX D-2511 SO digital OB701100
€28.98
€28.98
Tax included
Tax included
Pay in installments with Klarna
Items Available: 6
Features:
- Orbis Series
- Allows you to control the active energy consumption in a given installation
- Direct insertion
- Operating current 0.025A up to 25A
- Rated voltage 230 Vac
- Operating voltage limit from 125 Vac up to 265 Vac
- Frequency 50/60 Hz
- Accuracy class 1
- Operating temperature from -20°C to +50°C
- 35 mm Din rail installation
- Pulse output for PC visualization, through appropriate software and relative concentrator module
There are no reviews
Data sheet
- Type:
- Electricity meters
- Voltage:
- 230VAC
- Amps:
- 25A
