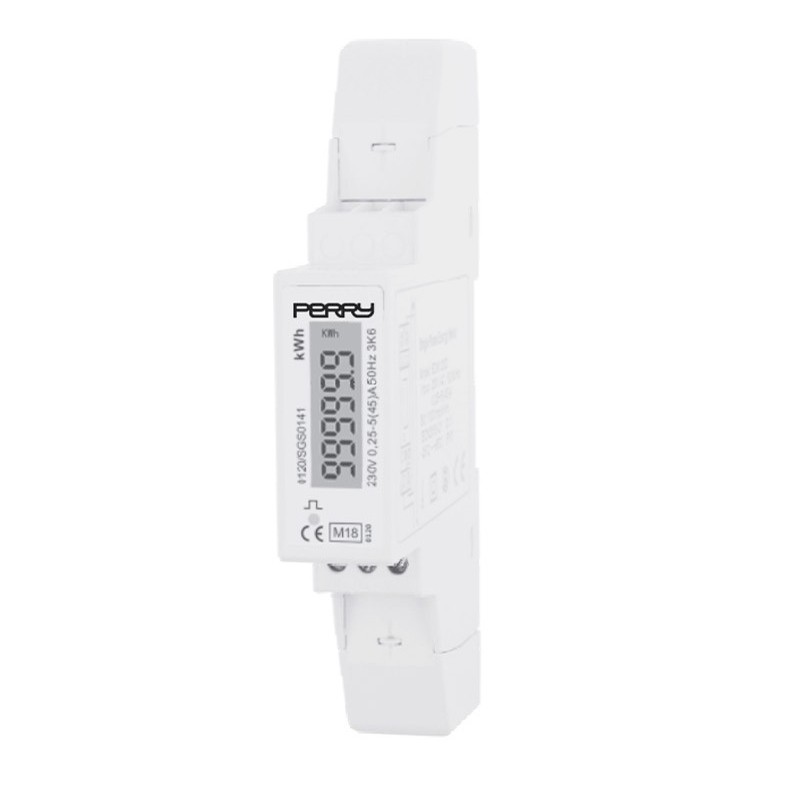

Perry 1 DIN digital single-phase energy meter 1SDSD06CEM1DGT
PER 1SDSD06CEM1DGT
8019108022243
Perry single-phase digital energy meter, with the following features:
- 1 DIN module
- Suitable for measuring energy in residential applications
- Equipped with white backlit LCD screen for perfect reading
- Equipped with passive pulse output, the constant is 1000 imp/kWh
- Nominal voltage 230 Vac
- Power supply 230 Vac a.c. ±10% 50-60Hz
- Number of digits 5 integers + 1 decimal
- Reading resolution 0.1 KWh
- Input current 45A max
- Minimum measurable current/power 20 mA / 4.5 W
- Accuracy Class 1 IEC62053-21, Class B EN50470-3
- Dimensions (WxDxH) 17.5 x 62 x 119 mm
Perry 1 DIN digital single-phase energy meter 1SDSD06CEM1DGT
€34.20
€34.20
Tax included
Tax included
Pay in installments with Klarna
Items Available: 12
Features:
- Perry Series
- 1 DIN module
- Suitable for energy measurement in residential applications
- Equipped with white backlit LCD screen for perfect reading
- Equipped with passive pulse output, the constant is 1000 imp/kWh
- Rated voltage 230 Vac
- Metering of active energy consumption in 230V a.c. single-phase systems, up to a maximum current of 45A with direct connection, with pulse output: open collector transistor 5-27 V d.c. max 27 mA d.c.
- Power supply 230V a.c. ±10% 50-60Hz
- Number of digits 5 integers + 1 decimal
- Reading resolution 0.1 KWh
- Input current 45A max
- Minimum measurable current/power 20 mA / 4,5 W
- Accuracy Class 1 IEC62053-21, Class B EN50470-3
- Dimensions (WxDxH) 17.5 x 62 x 119 mm
There are no reviews
Data sheet
- Type:
- Electricity meters
- Voltage:
- 230VAC
- Amps:
- 45A
