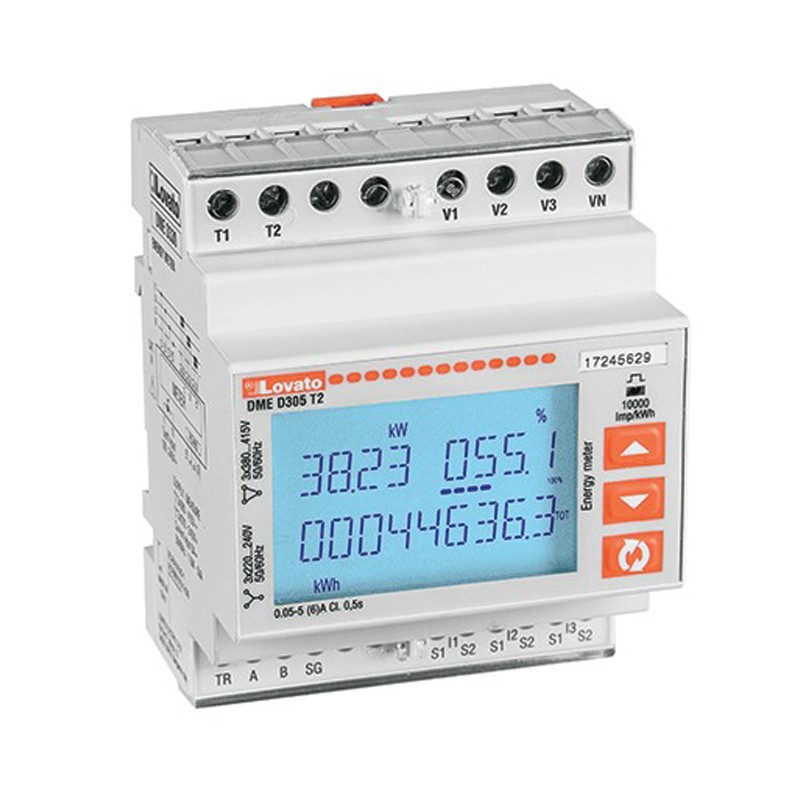

Lovato Three phase energy meter 5A 4U DMED305T2

Lovato Three phase energy meter 5A 4U DMED305T2

Lovato
Lovato
LOV DMED305T2 8013975230770

Three-phase digital energy meter with or without neutral Lovato, with the following characteristics:

  • Rated voltage (Ue): phase-to-phase VAC 380...415 - phase-to-neutral VAC 220...240
  • Rated impulse withstand voltage Uimp: kV 6
  • Withstand voltage at operating frequency kV: 4
  • Operating frequency: min Hz 50 - max Hz 60
  • Power consumption: Max. 3.5 volts
  • Tightening torque (max): Nm 0.8 - lbin 7
Do you have questions about this product or did you not find what you were looking for? Ask us!
Lovato Three phase energy meter 5A 4U DMED305T2
Lovato Three phase energy meter 5A 4U DMED305T2
€179.27
€179.27

€179.27
Tax included
Calculate shipping cost
Items Available: 18
Further availability of the manufacturer
€179.27

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Features:

  • Lovato Series
  • Fixing: DIN rail
  • Operating temperature: min °C -25 - max °C +55
  • Storage temperature: min °C -25 - max °C +70
  • Relative humidity %: <80
  • Maximum pollution degree 2
  • Insertion through TA
  • 1 Programmable digital output
  • Multi-measurement
  • Operating limit: 323...456VAC (L-L)
  • Meter with multifunction LCD display
  • Flashing metrological LED for energy consumption indication
  • Resettable partial energy measurement
  • 2 programmable static outputs
  • Weight: 332 grams

There are no reviews

Data sheet

Type:
Electricity meters
Voltage:
220/240VAC
Amps:
5A
