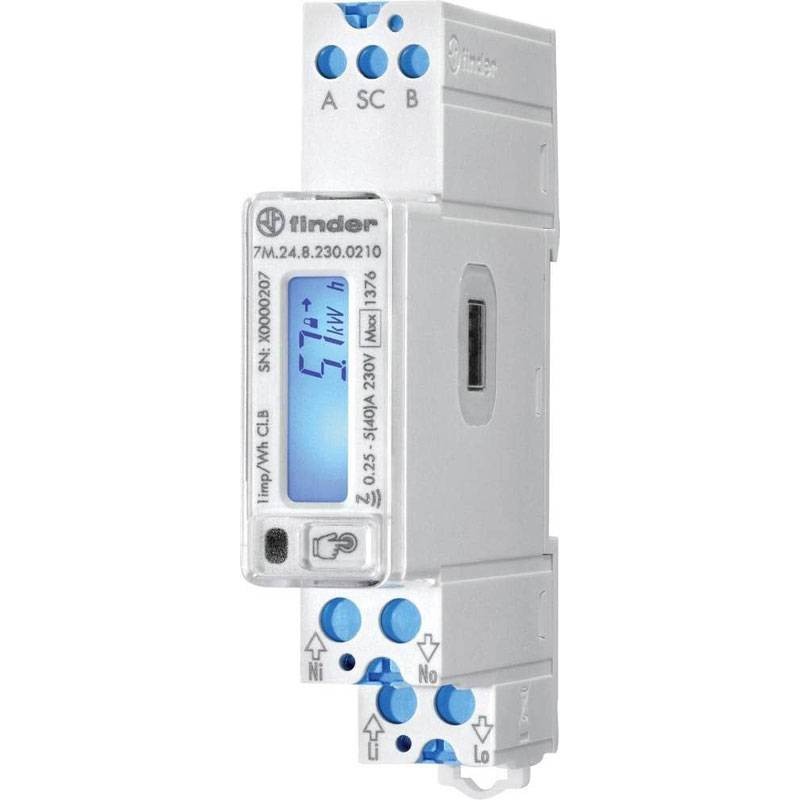

Finder 40A MID Single Phase Din Electricity Meter with NFC and RS485 7M2482300210
FIN 7M2482300210
8012823429168
MID-certified multifunctional single-phase Finder multifunction Din electricity meter with NFC and equipped with built-in Modbus RS485 interface.
With NFC technology, it is possible to read energy meters in the absence of line voltage or to customize and program the meter such as primary address or baud rate.
€98.05
Items Available: 2
: 1
Advantages:
- Ideal for monitoring domestic/industrial consumption, in offices, photovoltaic systems, campsites
- Programming via Smartphone - Android and Apple - with NFC technology
- Programming and customization of the energy meter via App
- Ability to read metered energy via NFC even in the absence of the grid
Features:
- Rated/Maximum current In/Imax 5/40 A
- Minimum measured current 0.25 A
- Supply voltage (and measurement) U N 230 V
- Operating range (0.81.15)U N
- Frequency 50/60 Hz
- Maximum/minimum count 999999.9/0.1 kW/h
- Accuracy class EN 50470-3 NO MID/MID 1/B
- Output S0 Opto-isolated 3.327 V DC/27 mA
- Pulses per kWh 1000 duration 32 ± 2 ms
- Maximum communication distance @ 27 V/27 mA 1000 m
- Main circuit terminals - terminal capacity 1,510 mm 2
- Stripping 10 mm
- Crimp bushing length 12 mm
- Tightening torque 0.8 Nm - 14 PH1
- S0 interface terminals - terminal capacity 0.5...1 mm 2
- Tightening torque 0.4 Nm
- Stripping 8 mm
- Operating temperature (EN 62052-11)°C 25°C+55°C (in the absence of condensation)
There are no reviews
Data sheet
- Type: Electricity meters
- Voltage: 230VAC
- Amps: 40A
