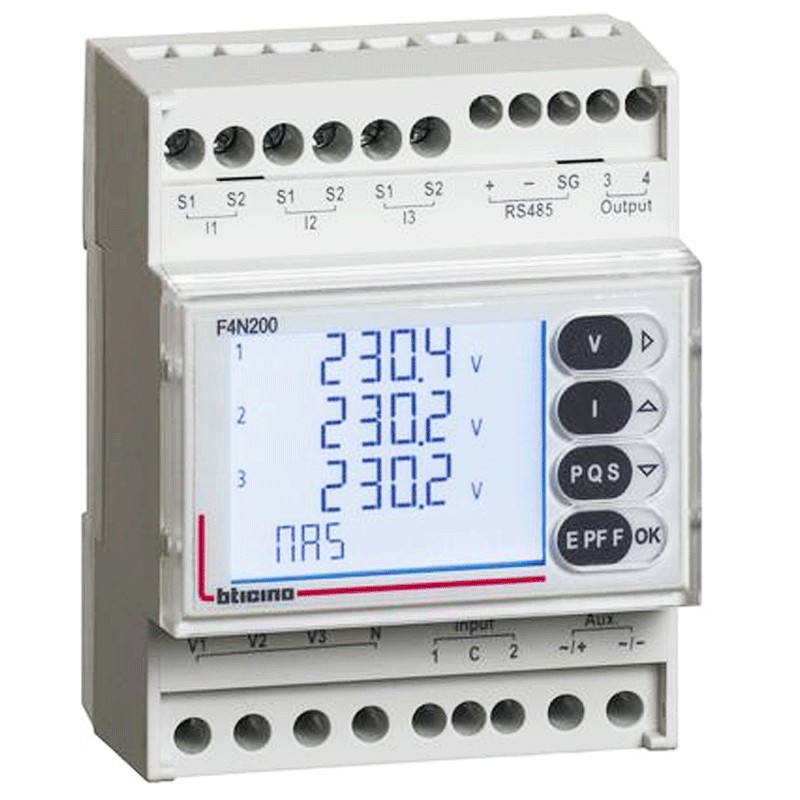

Bticino multifunction electronic measuring unit F4N200
BTI F4N200
8005543543917
Bticino RS485 multifunction electronic measuring unit, with the following features:
- 4 DIN35 modules
- Measures current, voltage and active and reactive power, energy, internal temperature, power factor, operating time, programmable alarms, LCD display, output for alarm signaling and pulse counting
- Measures the main electrical quantities of a single-phase or three-phase network
- The insertion is made through measurement current transformers (TA)
- Voltage 80-265 Vac 100-300 Vdc
- Power 2.5 VA
- Power 3.5 W
- 4 DIN modules (17.8 mm per pole)
- Degree of protection IP54

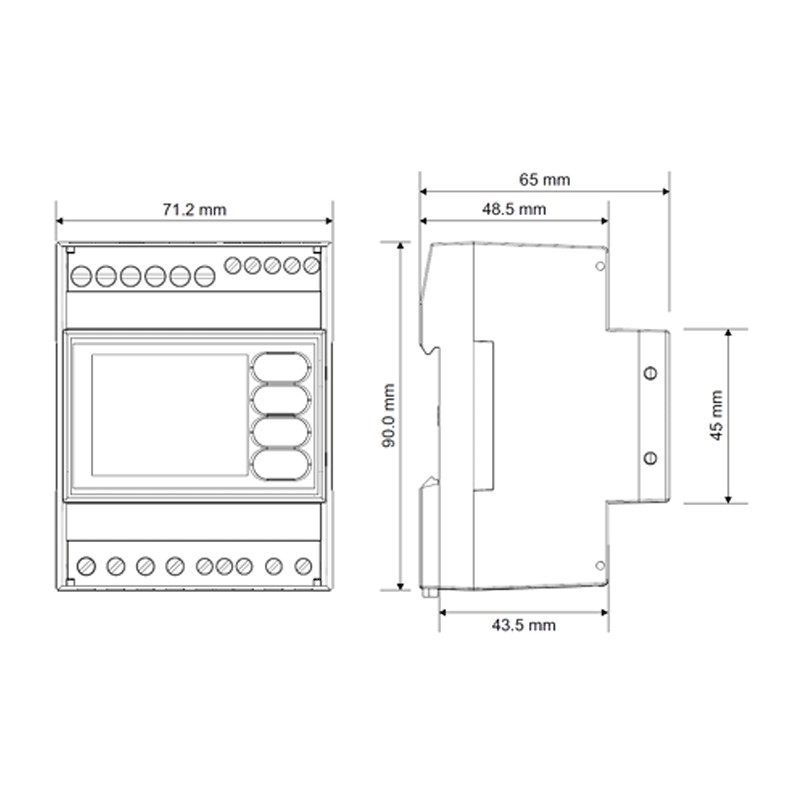

- Dimensions (4 x 17.8 mm = 71.2 mm)
- Rated frequency 50/60 Hz
€423.43
Items Available: 5
Multifunctional Measurement Station. It measures the main electrical quantities of a single-phase or three-phase network. It is connected by means of measuring current transformers (CT).
Features:
- Bticino series
- 4 DIN35 modules
- Measures current, voltage and active and reactive power, energy, internal temperature, power factor, operating time, programmable alarms, LCD display, output for alarm signaling and pulse counting
- Measures the main electrical quantities of a single-phase or three-phase network
- The insertion is made through measurement current transformers (TA)
- Voltage 80-265 Vac 100-300 Vdc
- Power 2.5 VA
- Power 3.5 W
- 4 DIN modules (17.8 mm per pole)
- Degree of protection IP54
- Dimensions (4 x 17.8 mm = 71.2 mm)
- Rated frequency 50/60 Hz
There are no reviews
Data sheet
- Type: Electricity meters
