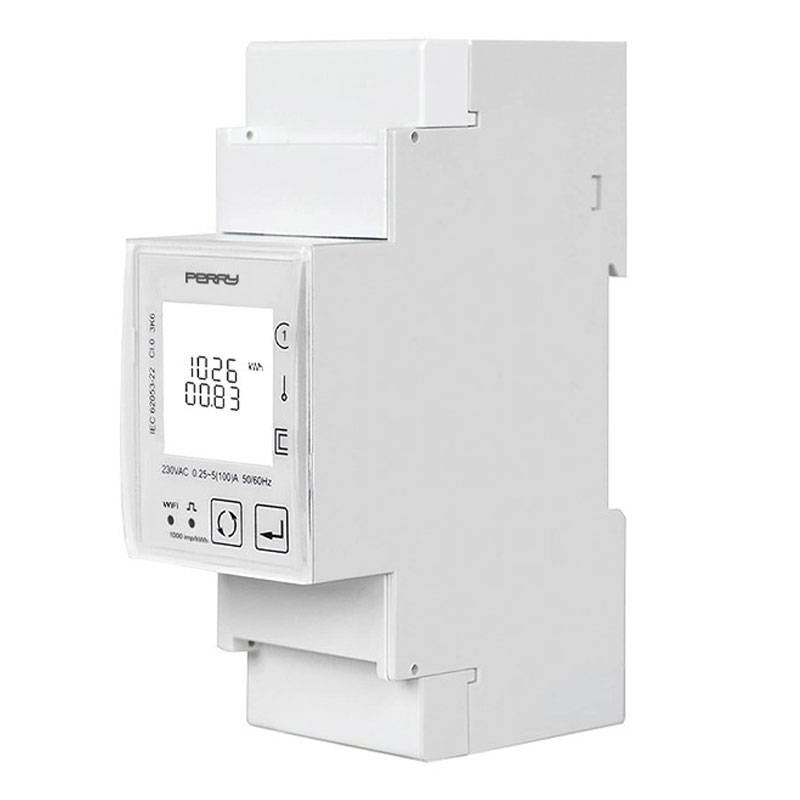

Perry 230V 2M Wifi Digital Single-Phase Electricity meter 1SDSD05CEM2WIFI
PER 1SDSD05CEM2WIFI
8019108037155
Perry Wi-Fi Digital Single-Phase Electricity Meter, enables smart and remote monitoring and management of electricity consumption. Connected to the Wi-Fi network, it allows real-time data display via the Perry Smart App, available for smartphones and tablets. The device includes an automatic trip relay to interrupt the load when a set consumption threshold is exceeded, with the following features:
-
Power supply: 230V AC
-
Maximum current: 80 amps
-
Consumption monitoring: Real-time, with visualization on Perry Smart App
-
Connection: Wi-Fi, for remote management from smartphones and tablets
-
Built-in relay: For automatic load disconnection when the set threshold is exceeded
-
Consumption history consultation: With detailed data for customized periods
-
Installation: DIN rail (2 modules), compatible with standard electrical systems
-
Accuracy: Class 1 (IEC62053-21), for reliable and detailed measurements
€67.60
Items Available: 10
Perry Electricity meter Smart consumption management, remote control
Smart monitoring with customizable consumption threshold
Thanks to the built-in relay, a maximum consumption threshold can be set: once it is reached, the device automatically interrupts the connected load, preventing waste and overloading.
Viewing consumption remotely
Connected to the Wi-Fi network, the meter allows consultation of consumption history via the Perry Smart lApp, providing a clear and detailed overview of specific time periods.
Compatibility and easy installation
The device easily mounts on DIN rails (2 modules), making it perfect for civil and industrial installations.
Perry Electricity Meter Technical Features
| Feature | Value |
|---|---|
| Power supply | 230V ac ±10% |
| Frequency | 45 Hz to 65 Hz |
| Maximum current | 80 A |
| Pulse output | Adjustable (60/100/200 ms) for each Wh consumed |
| Output type | Open collector transistor 5-27 V d.c, max 30 mA d.c |
| Number of digits | 6 integers + 2 decimals |
| Reading resolution | 0.01 kWh |
| Rated voltage | 230V |
| Minimum measurable current/power | 5 mA / 1 W |
| Accuracy | Class 1 IEC62053-21 |
| Operating Temperature | -25°C TO +55°C |

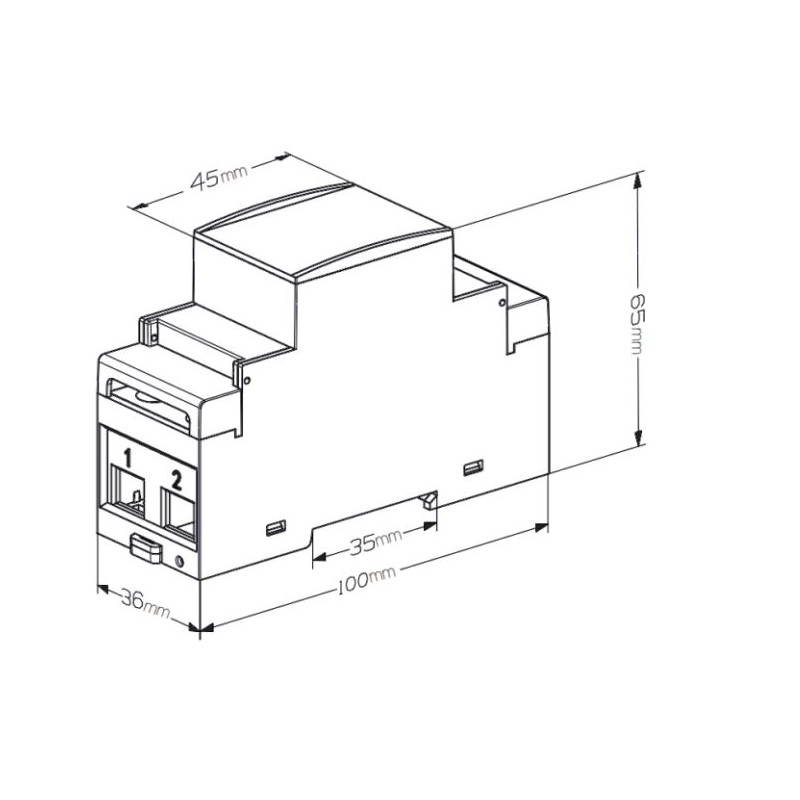

| Dimensions (W x D x H) | 36 x 65 x 100 mm |
There are no reviews
Data sheet
- Type: Electricity meters
- Voltage: 230VAC
- Amps: 80A
