Perry 100A single-phase energy meter MID Modbus 1SDSD05CEM2MID

Perry
Perry
PER 1SDSD05CEM2MID 8019108010936

Perry single-phase energy meter:



  • 2 Din Modules
  • Two-Wire
  • Dual pulse output: open collector transistor 5-27 V d.c. max 27 mA d.c.
  • Reset button for partial consumption readings
  • Power supply 230V ac ±10% 50-60Hz
  • Digital number 6 integers + 1 decimal
  • Reading resolution 0.1 KWh
  • Rated voltage 230V
  • Input current 100A max
  • Minimum measurable current/power 40 mA / 9 W
  • MID Certified
  • Accuracy Class 1 IEC62053-21, Class B EN50470-3

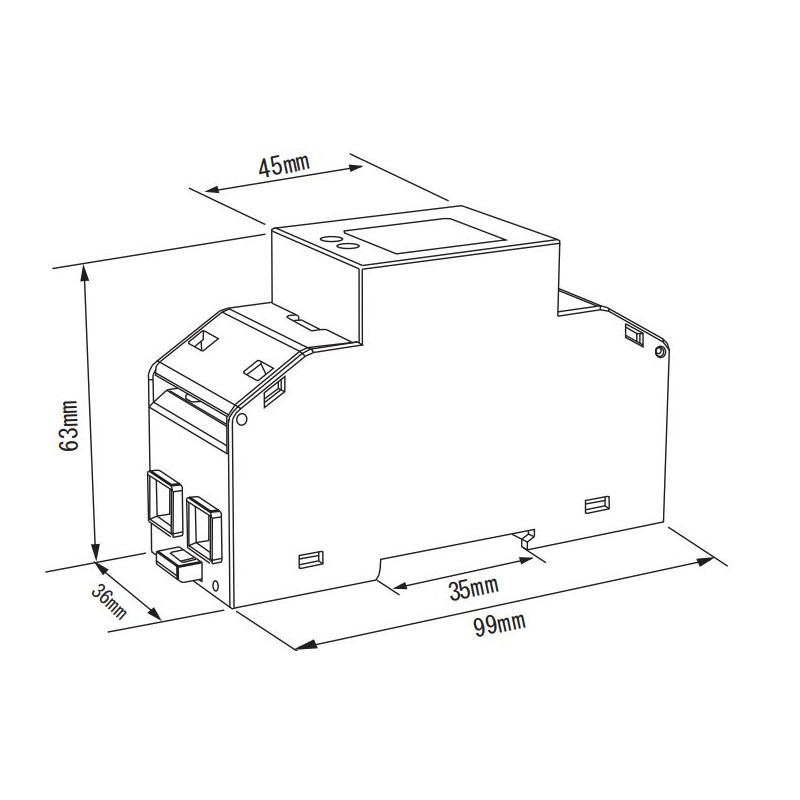

  • Dimensions (WxDxH) 36 x 63 x 99 mm
Do you have questions about this product or did you not find what you were looking for? Ask us!
Perry 100A single-phase energy meter MID Modbus 1SDSD05CEM2MID
€54.88
€54.88

€54.88
Tax included
Calculate shipping cost
Items Available: 4
Further availability of the manufacturer
€54.88

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

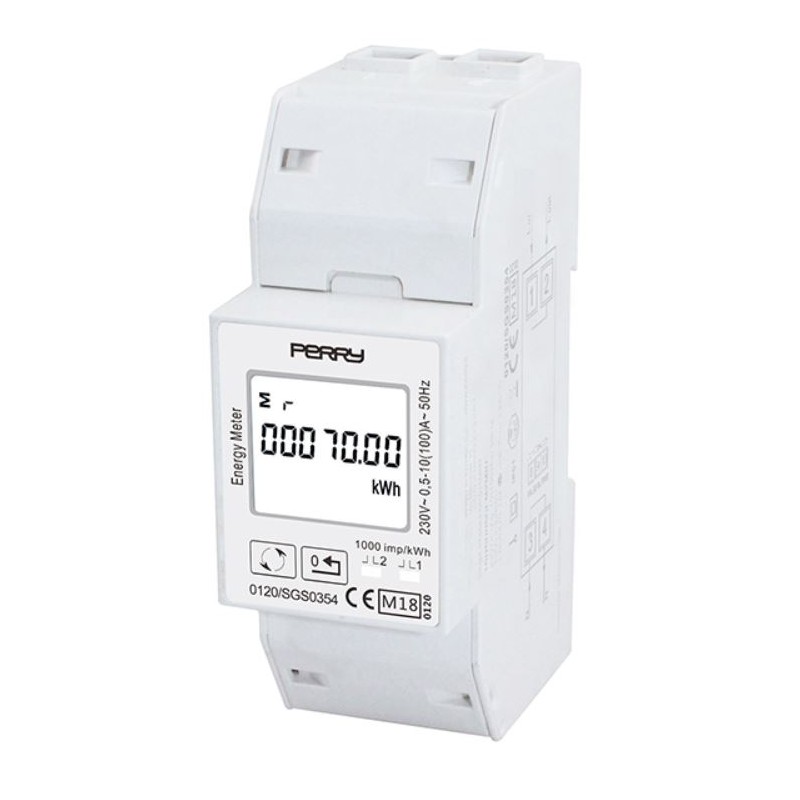

Energy meter equipped with white backlit LCD screen for perfect reading, Measures active energy (kWh) and power (W), resettable partial energy.



There are 2 buttons on the front panel, one is used to scroll through pages of information, the other is used to reset partial energy information to zero.



Equipped with pulse output, passive type. The constant is 1000 imp/kWh.



Features:

  • Rated voltage (Un) 230V AC
  • Operating voltage 80%~120% Un
  • Dimensions Height 99mm - Width 36mm - Depth 63mm
  • 2 Din Modules
  • Operating humidity ? 90%
  • Storage humidity ? 95%
  • Operating temperature -25°C - +55°C
  • Storage temperature -40°C - +70°C
  • Active energy accuracy Class B 50470-1/3 EN (MID) - Class 1 62053-21
  • Protection against ingress of dust and water IP51
  • Insulation type class II
  • Warm-up time 10 seconds
  • Mechanical environment M1
  • Electromagnetic environment 2
  • Pluggable
  • Cable cross section at terminals 4-16 mm2



Insulation characteristics:

  • AC voltage resistance 4 for 1 min
  • Pulse voltage resistance 6 S KV-1
  • Base current lb (Iref) 10A
  • Maximum rated current (Imax) 100A
  • Starting current 0.4% Ib (Iref)
  • Overcurrent resistance 30Imax 0.01s
  • Operating frequency range 50Hz ± 10% (MID) - 50 Hz ± -60 10%
  • Internal power consumption 2W/10VA
  • Flashing LED pulse output 1000imp/kWh



Pulse unit:

  • open collector transistor
  • pulse duration 80 ms
  • operating voltage 5...27 V d.c.
  • maximum current 27 mA d.c.
  • Max reading 999999.9 kWh

There are no reviews

Data sheet

Type:
Electricity meters
Voltage:
230VAC
Amps:
100A
