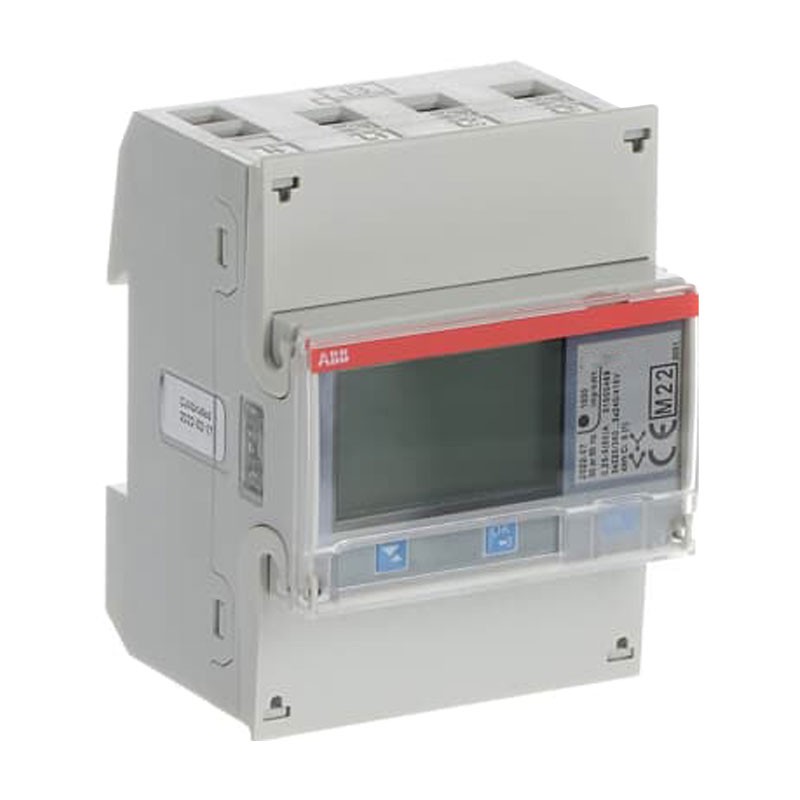

EQ Meters of the B series, are characterized by their compactness and are ideal solution for 230 VAC systems, both single-phase and three-phase. They make it possible to display, depending on the version chosen, the following quantities: active, reactive, apparent energy; active, reactive, apparent power; currents; frequencies; voltages; division of consumption into tariffs; power factor; bidirectional consumption. All codes are certified according to the MID directive, have outputs for pulse or alarm management, and infrared port for communication with KNX adapter. The meters depending on the versions are equipped with built-in serial communication interfaces for Modbus RTU (RS485 version)and Meter BUS (M-Bus versions).

Other technical features:

• Measuring Instrument Conformity: Measuring Instruments Directive
• Meter Tariff Rating: One-Tariff
• Pulse Output Rate: 1-999999
• Number of Poles: 4
• Number of phases: Three-phase
• Number of Counter Positions: 7
• Number of Digital Inputs/Outputs: 1 DO
• ABB Type Designation :B23 112-100
• Measurement Type: Direct Connection
• Mounting Type: DIN Rail
• Pulse Output Type: electrical
• Type of Indicator: digital
• Housing Material: plastic
• Cable cross-sections-main circuit: 1 ... 25 mm²
• Ambient Temperature: In operation: -40/+70 °C
• Degree of protection IP20
• RoHS declaration: according to EC Directive 2002/95/EC Aug. 18, 2005 and amendments
• Width in number of modular intervals: 4
• Width: 70 mm
• Height :26.5 mm
• Depth :65 mm
• Net weight: 0.32 kg
• Dimensions: 97X70X65
