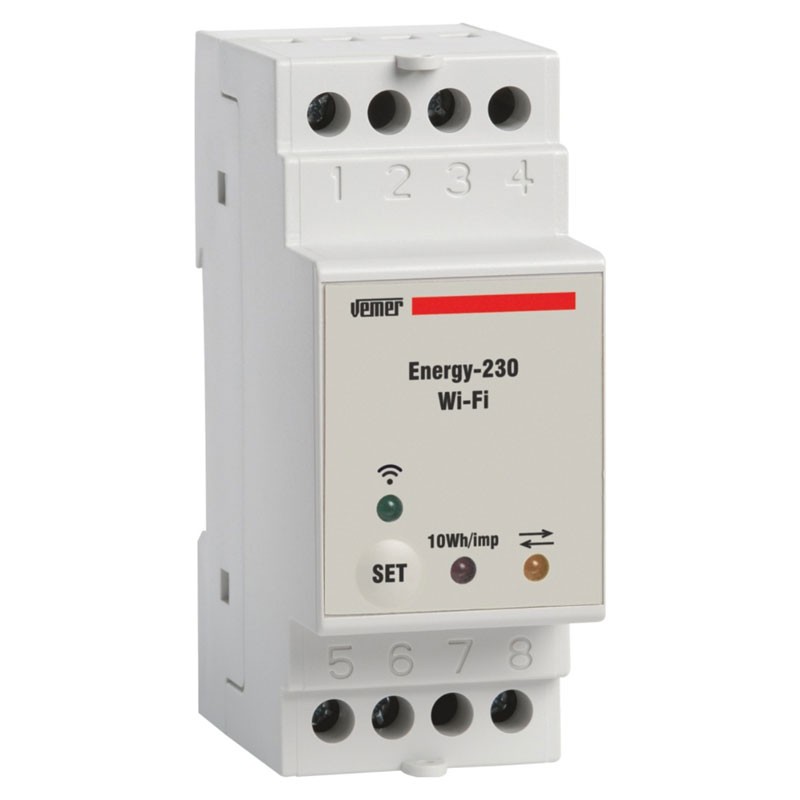

Vemer Energyy-230 Wifi Electricity Meter VE794600
VEM VE794600
8007951133377
Vemer Energyy-230 Wifi Electricity Meter:
- DIN rail (2 modules)
- For measuring active energy consumption on the grid in single-phase systems
- With 230V AC power supply
- Direct current insertion up to 40A
- Screen-free and manageable via app
€66.80
Items Available: 18
: 2
What is a single-phase energy meter and what is it used for?
- A Wi-Fi single-phase energy meter is a device designed to measure and record the consumption of electricity in a single-phase system. A single-phase system is a type of electrical system that supplies electricity through a single phase and neutral. This type of system is commonly used in homes, small businesses, and other situations where a large amount of electricity is not required
Device use:
The device, which has no screen, has:
- a SET button on the front for starting the configuration
- three LEDs on the front for displaying product status and connectivity
- Bluetooth interface for device configuration and connection with smartphone
- Wi-Fi module for remote control via app
Remote control:
- Thanks to the built-in Wi-Fi module, the Energy-230 Wi-Fi can be managed via the dedicated Energy Wi-Fi app, available for smartphones and tablets, iOS and Android, which allows viewing partial consumption and total consumption of instantaneous measured values, such as voltage, current and power
- View hourly / daily / monthly consumption trends via an interactive graph, which allows you to scroll through the hours / days / months, simply by clicking on the right / left arrow
- View and download the energy consumption history
- Enable push notifications to alert when the consumption and power value, preset by the user as the maximum threshold, is reached
Energy saving:
Being able to consistently monitor and manage the data inherent in your consumption allows you to realize how much energy you are using. With Energy-230 Wi-Fi, you can optimize the use of resources and reduce waste without sacrificing the convenience of modern technology.
Local operation lock function:
- Thanks to the local operation lock function, it is possible to manage the device solely through the application, preventing changes through the keys
Features:
- 230 50/60 Hz power supply
- Power consumption 4.7VA/1.5A
- Starting current 20 mA
- Minimum current 0.25A
- Reference current 5A
- Maximum current 40A
- Signaling LEDs 3 LEDs operating status
- Accuracy Class B
- Current circuit absorption <4VA
- Total energy resolution 1 kWh
- Partial energy resolution 0.1kWh
- 2 Din modules
- Degree of protection IP20/51 on front panel
- Operating temperature -10/+45 degrees
There are no reviews
Data sheet
- Type: Electricity meters
- Voltage: 230VAC
- Amps: 40A
