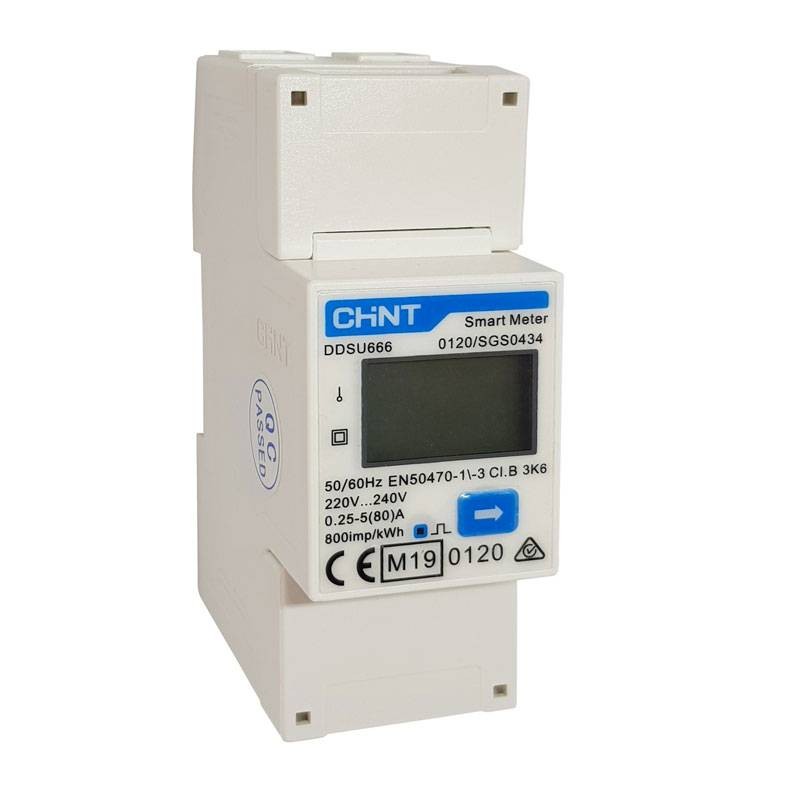

Chint Single-phase energy meter DDSU666 1P+N 80A 2M IP54 8.0897.0271
67B 8.0897.0271
Compact, precise, and MID-compliant single-phase Chint energy meter for reliable measurements up to 80A with the following features:
-
Number of poles: 1P+N
-
Nominal voltage: 230 Vac
-
Nominal current: 80 Amperes
-
Connection: Direct up to 80 Amperes
-
Modules: 2
-
Protection degree: IP54
-
Operation: Single-phase
-
Communication: Modbus RS485
To be associated with Inverter SCE6KTL (code 1.0101.1142).
€37.79
Items Available: 1
Frequently bought together
Single-phase energy meter precision and reliability in only 2 modules
The single-phase meter is a professional solution for monitoring electrical energy in single-phase systems up to 80A. Compliant with the MID directive and the IEC/EN 60252-11 standard, it allows precise measurement of active energy and various electrical parameters, making it ideal for residential, commercial, and tertiary applications.
Compact and easy to install
With a footprint of only 2 DIN modules and a depth of 65 mm, this meter integrates perfectly into standard electrical panels. The DIN rail mounting simplifies installation, while the compact dimensions make it ideal even in confined spaces.
Detailed and real-time measurements
Provides a wide range of electrical measurements, including:
-
Total active energy (kWh)
-
Instantaneous active power (kW)
-
Instantaneous current (Irms)
-
Instantaneous voltage (Vrms)
-
Frequency (Hz)
-
Instantaneous power factor
The bidirectional measurement allows monitoring of both consumed and fed energy, making this device perfect for photovoltaic systems or systems with storage.
Modbus RS485 communication for integration into supervision systems
The meter is equipped with an RS485 interface with Modbus protocol, allowing easy integration with monitoring systems, PLCs, and energy supervision software. This makes it ideal for advanced systems where it is necessary to centralize consumption data and monitor energy efficiency in real-time.
Reliability and protection in harsh environments
The IP54 protection rating ensures good resistance against dust and water splashes, allowing installation even in less protected environments. Additionally, the reduced power dissipation (1 W) contributes to the overall efficiency of the system.
Recommended applications
Thanks to its versatility and compactness, it is ideal for:
-
Residential and commercial electrical panels
-
Photovoltaic systems
-
Advanced energy monitoring systems
-
Applications requiring billing according to MID standards
-
Installations in indoor environments with limited space
Technical Characteristics Single-phase Energy Meter Chint
Electrical Data
| Reference standard | IEC/EN 60252-11 |
| Number of poles | 1P + N |
| Nominal voltage | 230 Vac |
| Nominal frequency | 50 / 60 Hz |
| Nominal current | 80 A |
| Connection | Direct up to 80 A |
| Accuracy class | 1 (MID) |
| Operation | Single-phase |
| Power dissipation | 1 W |
Communication
| Protocol | Modbus RS485 |
Supported Measurements
| Total active energy | kWh |
| Active power | kW |
| Current | Irms |
| Voltage | Vrms |
| Frequency | Hz |
| Power factor | Cos ? |
| Measurement | Bidirectional |

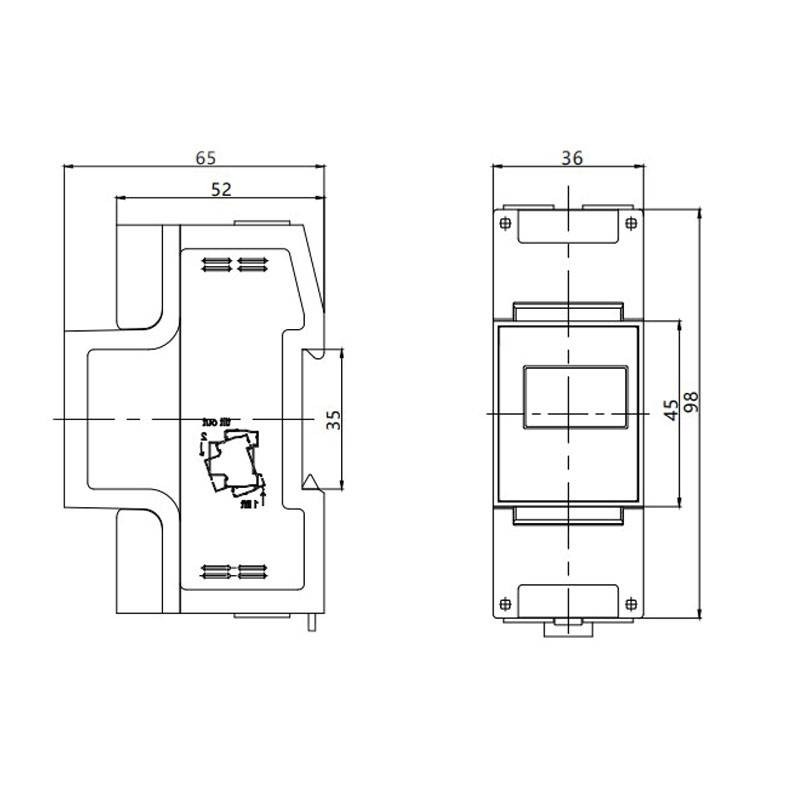

Mechanical Characteristics
| DIN Modules | 2 (36 mm) |
| Dimensions (H × W × D) | 98 × 36 × 65 mm |
| Protection Degree | IP54 |
There are no reviews
Data sheet
- Type: Electricity meters
- Voltage: 230VAC
- Amps: 80A
