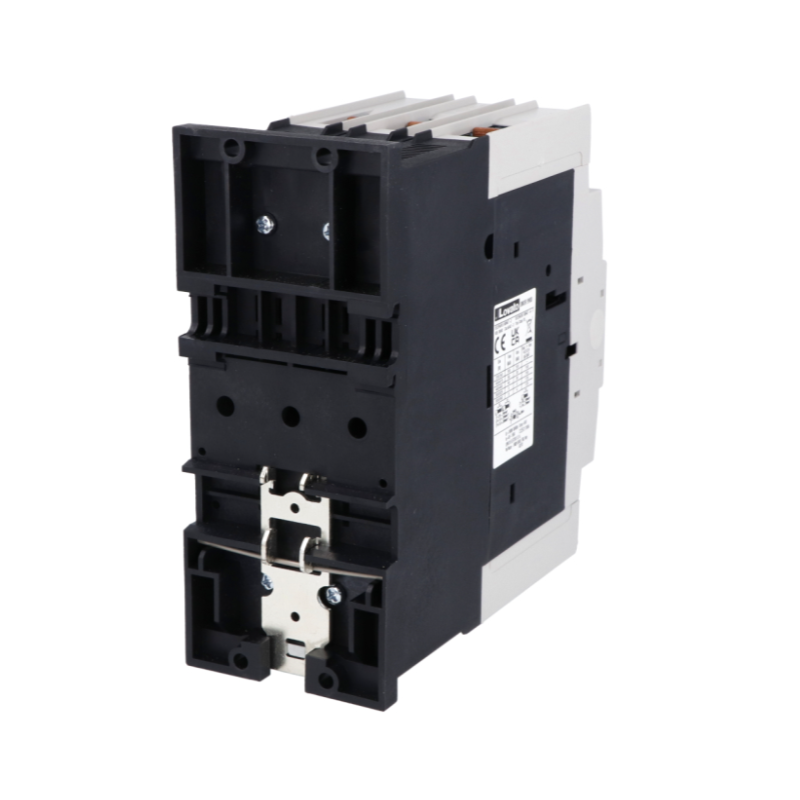

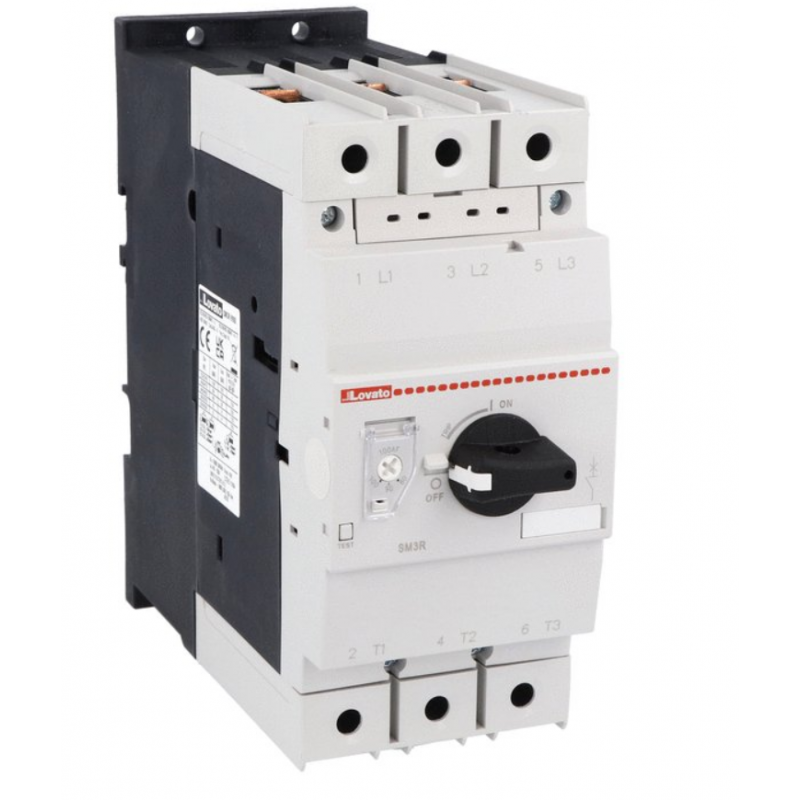

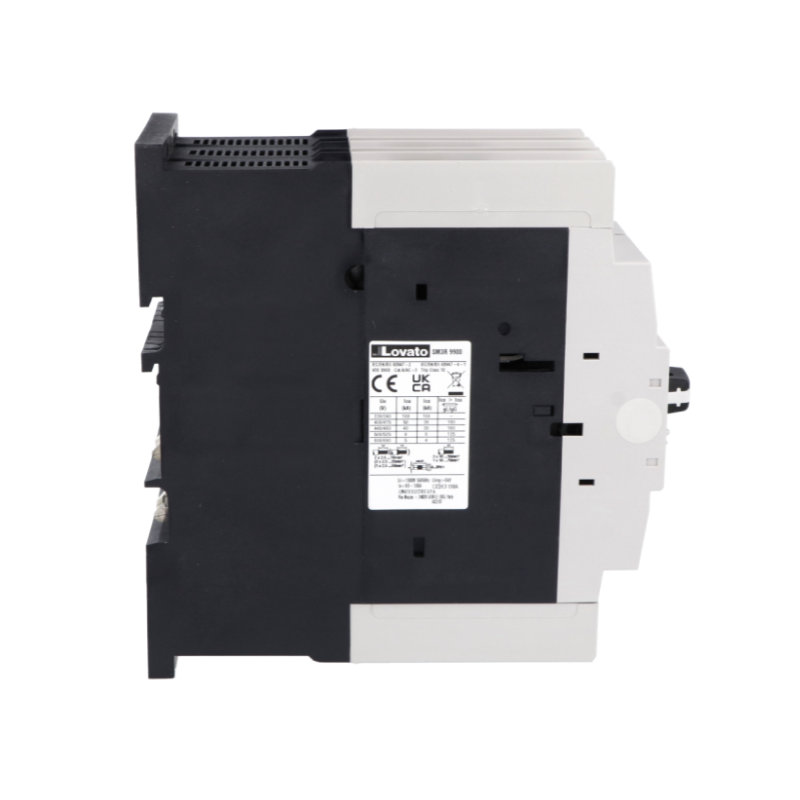

Lovato SM3P Circuit Breaker 55/75A 50Ka SM3R7500


LOV SM3R7500 8013975219850

Lovato motor protection switch type SM3R, with the following characteristics:



  • Number of poles 3
  • With magnetic and thermal protection
  • With phase failure sensitivity
  • IEC/EN rated insulation voltage: 1000V
  • Rated impulse withstand voltage (Uimp): kV 6
  • Rated frequency: 50/60 Hz
  • Thermal trip adjustment range: 55...75
  • Rated current 75 amps
  • Magnetic trip: 13 x In
  • Power dissipation per pole: max 7 watts
  • Trip class: 10A
  • Utilization category: A
  • Mechanical life: 50000 cycles
  • Electrical service life: 25000 cycles
Request info about this product

Lovato SM3P Circuit Breaker 55/75A 50Ka SM3R7500

€215.46
€215.46

Lovato SM3P Circuit Breaker 55/75A 50Ka SM3R7500

€215.46
Tax included
klarna Pay in installments with Klarna
qty

Lovato SM3P Circuit Breaker 55/75A 50Ka SM3R7500

€215.46

Buy it within and receive it from Tuesday, 16 April
Two-year warranty
Secure Payment
Easy return within 14 days

Other technical features:

  • Max number of conductors that can be installed simultaneously: 2
  • Screwdriver tool: Allen 4mm
  • Power terminal protection according to IEC/EN 60529: IP20
  • Cable stripping length Main circuit mm 1
  • Operating temperature: -20/+70°C
  • Storage temperature: -50/+80°C
  • Compensation temperature: -50/+40°C
  • Maximum altitude: m 3000
  • Mounting position: Normal Vertical plane - Allowed Any

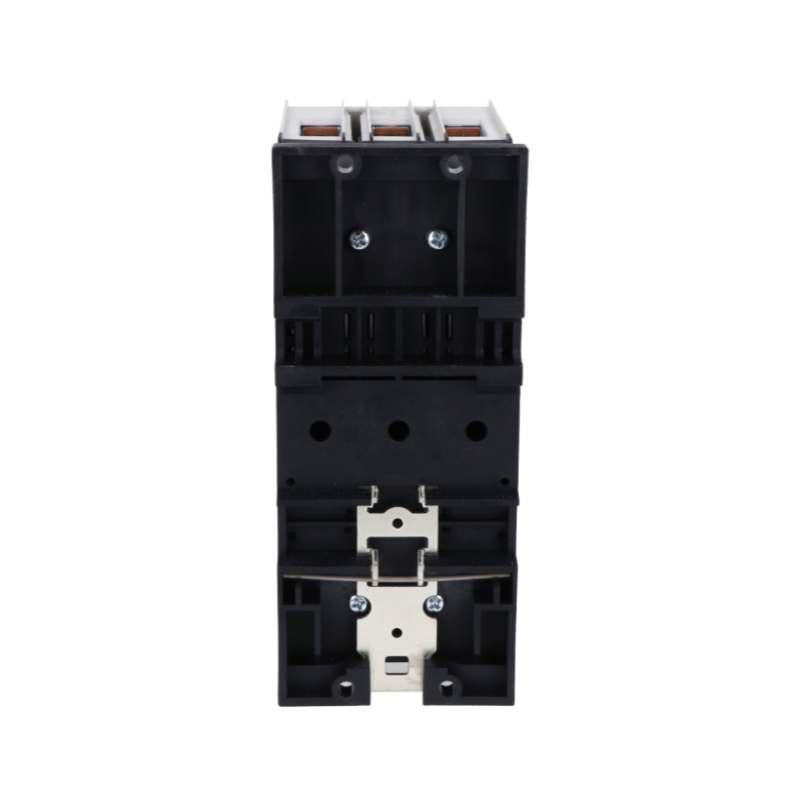

  • Mounting: screw-on / 35mm DIN rail

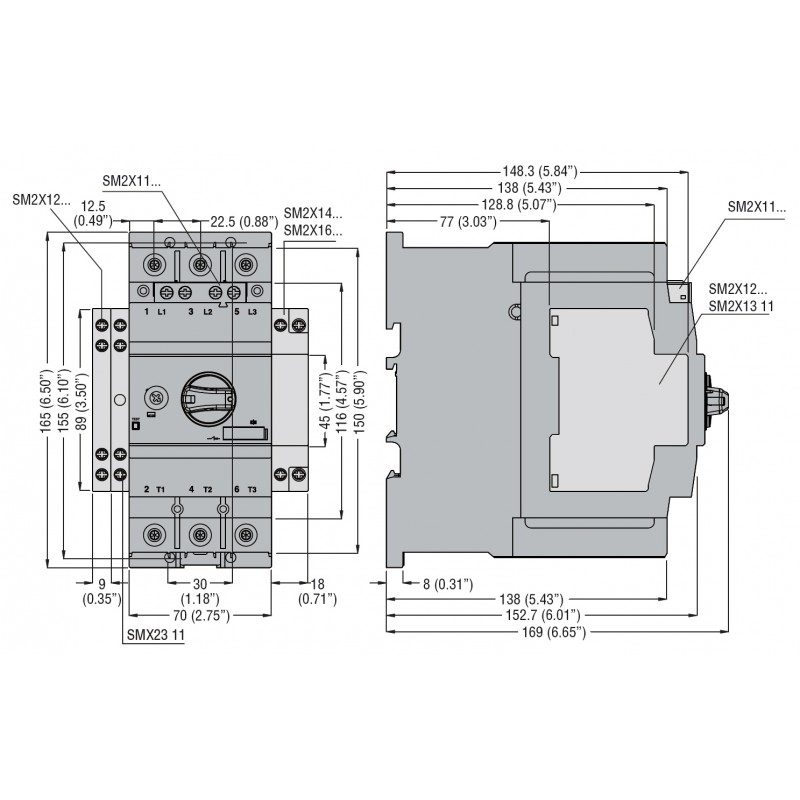

Data sheet

Type:
Motor protection
