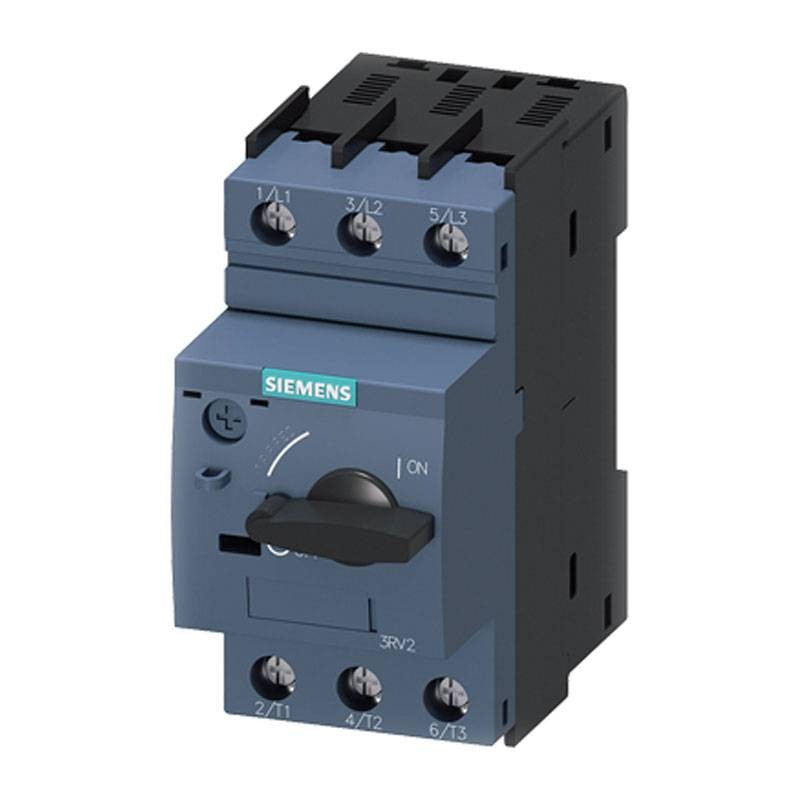

Siemens S00 0.55/0.8A IP20 Circuit breaker for motor protection 3RV20110HA10
SIE 3RV20110HA10
4011209712386
Siemens S00 Circuit breaker for motor protection with the following characteristics:
- Insulation voltage with pollution degree 3 with AC rated value: 690 V
- Rated value impulse withstand voltage: 6 kV
- Rated value operating current: 0.8A
- Settable trip value for current-dependent overload release current: 0.55/0.8A
- Degree of protection: IP20
- Number of poles: 3
€64.64
Items Available: 9
: 4
Specifications:
- Circuit breaker construction size: S00
- Shock resistance according to IEC 60068-2-27 25g / 11 ms
- Reference code according to IEC 81346-2:2009 Q
- Rated value frequency of use: 50/60 Hz
- Rated value operating current: 0.8 A
- Trip class: CLASS 10
- Design of overload release: Thermal
- Execution of the short-circuit release: Magnetic
- Type of mounting: Screw and snap on 35mm profile rail
- Height 97 mm
- Width 45 mm
- Depth 97 mm
There are no reviews
Data sheet
- Type: Motor protection
- Modules: 2.5
- Poles: 3P
- Amps: 0.55/0.8A
