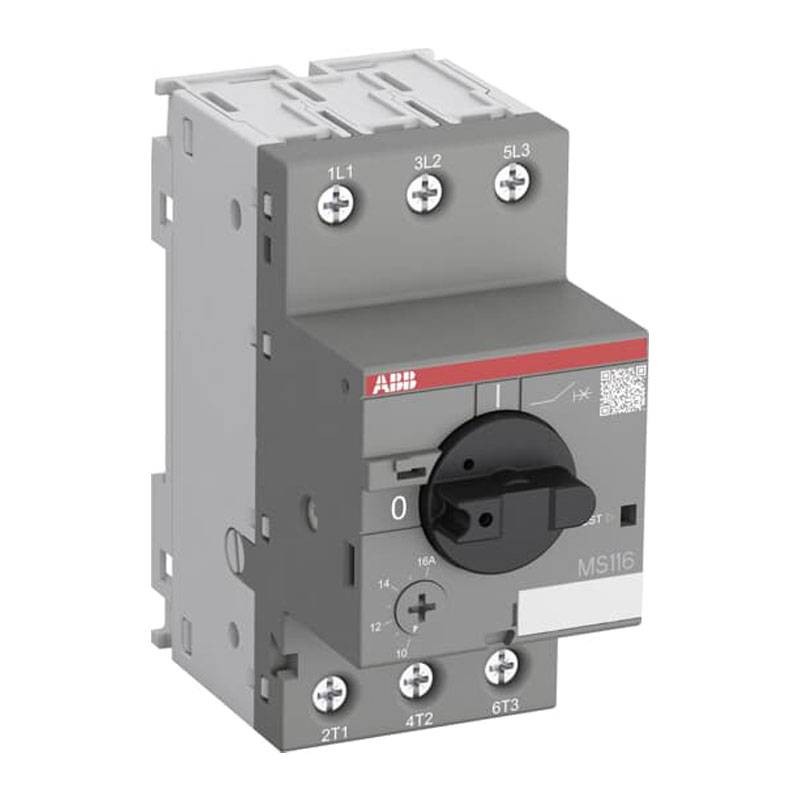

Abb motor saver MS116-4.0 2.5-4A 3P 2.5 modules EP 088 7


ABB EP 088 7 4013614320316

Abb motor protection switch, MS116-4.0 series, with the following characteristics:


  • Rated service short-circuit rating (230 Vac) 50 kA
  • Rated extreme short-circuit rating (230 Vac) 75 kA
  • Rated instantaneous short-circuit current setting 50 A
  • Setting range 2.5/4A
  • Rated operating voltage Main circuit 690 Vac
  • Rated operating current: 4A
  • Rated impulse withstand voltage (Uimp) Main Circuit 6 kV
  • Rated insulation voltage (Ui) 690 V
  • 3 poles
  • 2.5 modules
Request info about this product

Abb motor saver MS116-4.0 2.5-4A 3P 2.5 modules EP 088 7

€58.83
€58.83

Abb motor saver MS116-4.0 2.5-4A 3P 2.5 modules EP 088 7

€58.83
Tax included
klarna Pay in installments with Klarna
qty

Abb motor saver MS116-4.0 2.5-4A 3P 2.5 modules EP 088 7

€58.83

Buy it within and receive it from Tuesday, 28 May
Two-year warranty
Secure Payment
Easy return within 14 days

The motor saver is installed on the cable supplying the motor and, when the motor stalls due to a mechanical effect or (in three-phase systems) because a phase fails, it detects excessive absorption and automatically shuts off the electrical power, safeguarding the integrity of the motor.


Characteristics:

  • Rated operating current AC-3 (Pe) (400 V) Three phases 1.5 kW
  • Rated operating current AC-3e (Pe) (400 V) Three Phases 1.5 kW
  • Rated operating current AC-3 (Ie) 4 A
  • Rated operating current AC-3e (Ie) 4 A
  • Rated operating current DC-5 (Ie) 4 A
  • Rated Frequency Main Circuit 50 Hz/60 Hz
  • Rated impulse withstand voltage (Uimp) Main Circuit 6 kV
  • Rated insulation voltage (Ui) 690 V
  • Power loss at Rated Operating Conditions per Pole 0.7 ... 1.8 W
  • Conventional free air thermal current (Ith) Main Circuit 4A
  • Degree of protection housing IP20 - Main Circuit Terminals IP10
  • Pollution degree 3
  • Electrical life 100000 cycles
  • Mechanical life 100000 cycles
  • Terminal type Screw terminals
  • Main Circuit Tightening Torque 0.8 ... 1.2 N-m
  • Main circuit cable stripping length 9 mm
  • Recommended screwdriver Pozidriv 2
  • Mounting position Position 1 to 6
  • Type of actuator rotary handle
  • Contact position indication ON / OFF / TRIP
  • Ambient temperature Operating -25 ... +70 °C - In storage -50 ... +80 °C
  • Maximum allowable operating altitude 2000 m
  • Width: 45 mm
  • Height: 90 mm
  • Depth: 85.6 mm
  • Weight: 265 grams

Cable sections-main circuit:

  • Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²
  • Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm²
  • Flexible 1/2x 0.75 ... 2.5 mm²
  • Rigid 1/2x 1 ... 4 mm²

DIN rail mounting:

  • TH35-15 (35 x 15 mm Mounting Bar) according to IEC 60715
  • TH35-7.5 (35 x 7.5 mm Mounting Bar) according to IEC 60715

Data sheet

Type:
Motor protection
Modules:
2.5
Poles:
3P
Power:
50KA
Amps:
2.5-4A
