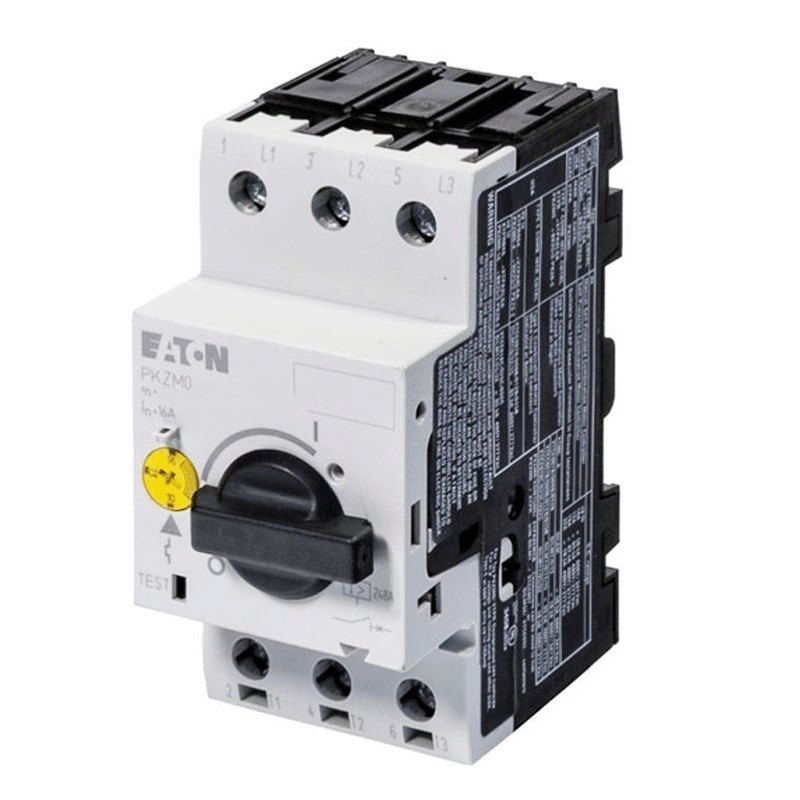

Motor protection Eaton PKZM0-10 6,3-10A 3 Modules 3-Pole 072739
EAO 072739
4015080727392
The breaker for motor protection Motor protection Eaton PKZM0-10, Release overload pressure setting 6,3-10A 3 Modules 3-Pole With thermal protection Sensitive to phase loss.
![](https://www.elettronew.com/41157-large_default/motor-protection-eaton-pkzm0-10-63-10a-3-modules-3-pole-072739.jpg)
Motor protection Eaton PKZM0-10 6,3-10A 3 Modules 3-Pole 072739
€85.66
€85.66
Tax included
Tax included
![klarna](/../img/logo-klarna-list.png)
Items Available: 1
Features:
- Height 93 mm
- Without with auxiliary switch integrated
- with thermal protection
- without undervoltage release integrated
- the current limit nominal switching to the short circuit at 400 V, AC: 150 kA
- nominal continuous current Iu: 10A
- the execution of the drive element: knob
- degree of protection IP20
- the range of adjustment of the activator short-circuit non-time delay: 155-155 To
- adjustment range of trip unit overload: 6.3-10 A
- width 45 mm
- 3-Pin
- operating power rated for AC-3, 230 V: 2.2 kW
- operating power rated for AC-3, 400 V: 4 kW
- depth 76 mm
- sensitive to phase failure
- intervention technique: termomagnetico
- operating voltage nominal: 690-690 V
- type of connection circuit in the main electrical: screw connection
- the type of construction of the luminaire: recessed, a technique for fixed installation.
Data sheet
- Type:
- Motor protection
- Modules:
- 3
- Poles:
- 3P
- Breaking capacity:
- 150KA
- Amps:
- 6.3-10A
