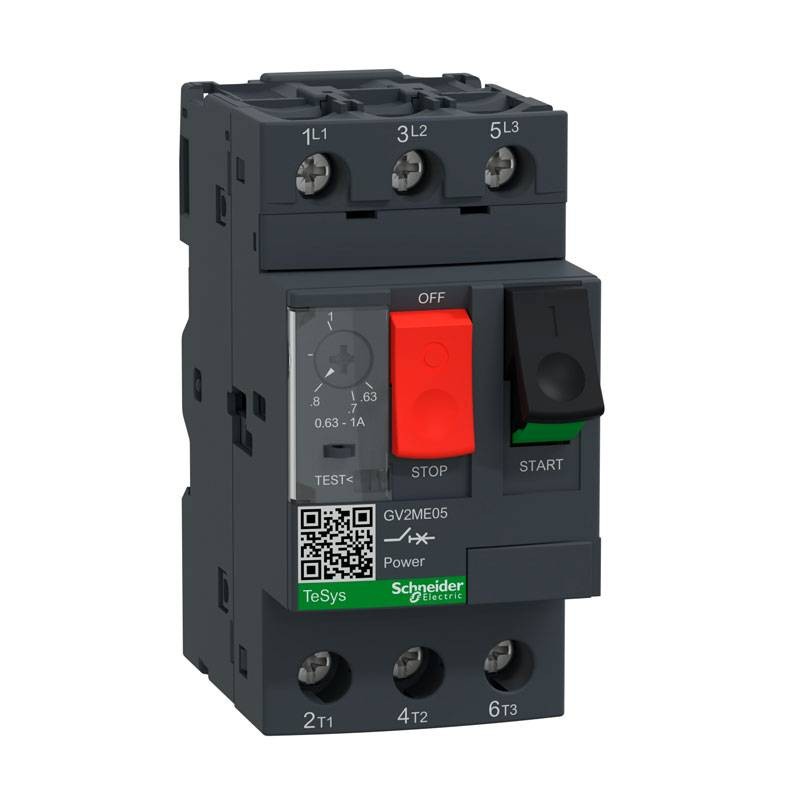

Schneider GV2ME 0.63/1A 3P Circuit Breaker GV2ME05


SNR GV2ME05 3389110343038

Schneider GV2ME thermal-magnetic circuit breaker with push-button control and thermal protection regulation range from 0.63 to 1A, screw connection with the following features:

  • Number of poles: 3
  • Mains type: AC
  • Mains frequency: 0/60 Hz complying with IEC 60947-4-1
  • Rated current
  • In: 1A
  • Magnetic trip current: 13A
  • Rated operating voltage: 690V AC complying with IEC 60947-2
  • Rated insulation voltage: 690V AC complying with IEC 60947-2
  • Rated impulse withstand voltage: 6kV complying with IEC 60947-2
  • Energy dissipation per pole: 2.5W
  • Degree of protection IK: IK04
  • IP degree of protection: IP20 complying with IEC 60529
Request info about this product

Schneider GV2ME 0.63/1A 3P Circuit Breaker GV2ME05

€64.67
€64.67

Schneider GV2ME 0.63/1A 3P Circuit Breaker GV2ME05

€64.67
Tax included
klarna Pay in installments with Klarna
qty

Schneider GV2ME 0.63/1A 3P Circuit Breaker GV2ME05

€64.67

Buy it within and receive it from Tuesday, 28 May
Two-year warranty
Secure Payment
Easy return within 14 days

GV2ME05 is a TeSys GV circuit breaker from Schneider Electric for motors. It provides thermal-magnetic protection of 0.25 kW motors at 400 V and high breaking capacity Icu 100 kA. Push-button start-stop control guaranteed for 100,000 cycles AC-3 415V. GV2ME05 is a TeSys GV motor circuit breaker from Schneider Electric designed for 0.25 kW motor applications at 400 V. It meets thermal-magnetic protection with a thermal regulation range of 0.63-1 A, magnetic trip at 12 xIn and high breaking capacity Icu 100 kA at 400 V. Push-button start-stop control guaranteed for 100,000 cycles AC-3 415V. Available worldwide, has certification to various standards (IEC, UL, CSA, CCC, EAC, for use in marine environments) and is Green Premium (RoHS/REACH) compliant.


Advantages:

  • Complete motor protection in one device: short circuit, overload, disconnection.
  • Combined with a TeSys contactor, it ensures a complete starte type 1 or 2 motor solution.
  • Lightweight and compact, 45 mm wide, for DIN rail and panel mounting.
  • Manual control with push buttons for Start / Stop, padlockable.
  • Possible mounting of auxiliary contacts in the front or side for status signaling and release

Features:

  • Operating position: Any position
  • Motor power in kW: 0.25 kW at 400/415 V "AC" "50/60 Hz" - 0.55 kW at 690 V "AC" "50/60 Hz"
  • Interrupting capacity: 100 kA IEC 60947-2 compliant Icu at 230/240 V "AC" "50/60 Hz" - 100 kA IEC 60947-2 compliant Icu at 400/415 V "AC" "50/60 Hz" - 100 kA IEC 60947-2 compliant Icu at 440 V "AC" "50/60 Hz" - 100 kA IEC 60947-2 compliant Icu at 500 V "AC" "50/60 Hz" - 100 kA IEC 60947-2 compliant Icu at 690 V "AC" "50/60 Hz"
  • Rated service interrupting capacity
  • Ics: 100 % complies with IEC 60947-2 at 690 V "AC" "50/60 Hz" - 100 % complies with IEC 60947-2 at 500 V "AC" "50/60 Hz" - 100 % complies with IEC 60947-2 at 230/240 V "AC" "50/60 Hz" - 100 % complies with IEC 60947-2 at 440 V "AC" "50/60 Hz" - 100 % complies with IEC 60947-2 at 400/415 V "AC" "50/60 Hz"
  • Magnetic release current: 13°
  • Mechanical life span: 100000 cycles
  • Electrical endurance: 100000 cycles for AC-3 at 415 V
  • Maximum operating speed: 25 cycles/h
  • Tightening torque: 1.7 Nm on screw clamps
  • Storage temperature: -40/80 °C
  • Operating ambient temperature: -20/60 °C
  • Dimensions: height 89 mm width 45 mm depth 78.5 mm
  • Weight: 280 grams

Data sheet

Type:
Motor protection
Voltage:
690V
Poles:
3P
Degree of protection:
IP20
