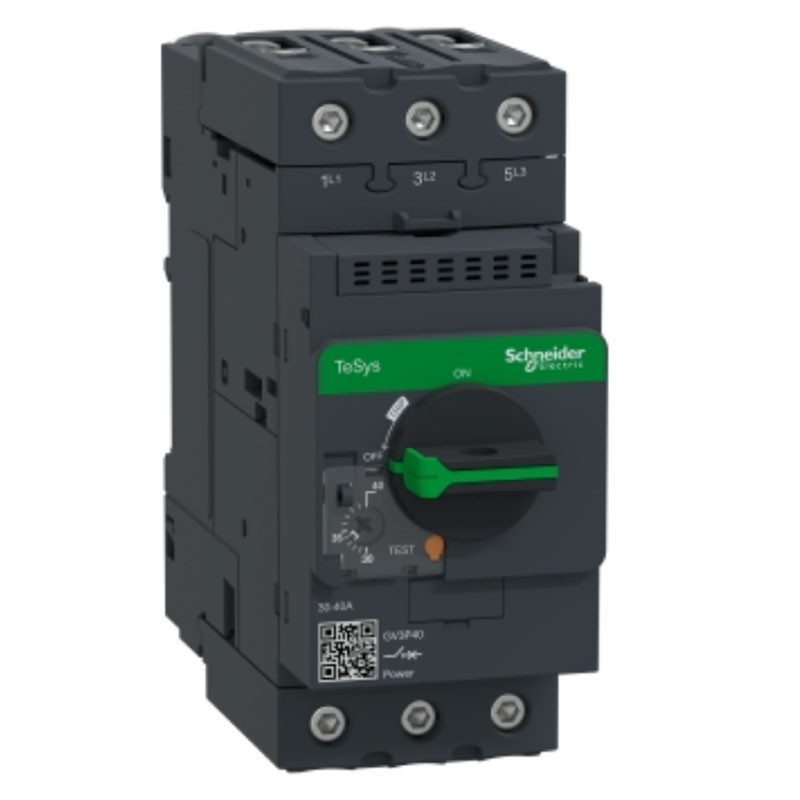

Thermal magnetic circuit breaker Telemecanique GV3P 40A GV3P40


SNR GV3P40 3389119405393

Schneider Telemecanique magneto-thermal circuit breaker, with the following characteristics:

  • Rated operational voltage [Ue]: 690 V "AC" "50/60 Hz" in accordance with IEC 60947-2
  • Rated insulation voltage [Ui]; 690 V "AC" "50/60 Hz" in accordance with IEC 60947-2
  • Conventional thermal current in air [Ith]: 40A per IEC 60947-4-1
  • Rated impulse withstand voltage [Uimp]: 6 kV per IEC 60947-2
  • Magnetic trip current: 560A
  • Energy dissipation per pole: 8W
  • Number of poles: 3
  • Network type: "AC
  • Utilization category: AC-3 according to IEC 60947-4-1
  • Mains frequency: "50/60 Hz" in accordance with IEC 60947-4-1
  • Type of mounting: 35 mm symmetrical DIN rail: clipped - panel: screwed (with 3 x M4 screws)
Request info about this product

Thermal magnetic circuit breaker Telemecanique GV3P 40A GV3P40

€169.52
€169.52

Thermal magnetic circuit breaker Telemecanique GV3P 40A GV3P40

€169.52
Tax included
klarna Pay in installments with Klarna
qty

Thermal magnetic circuit breaker Telemecanique GV3P 40A GV3P40

€169.52

Buy it within and receive it from Tuesday, 28 May
Two-year warranty
Secure Payment
Easy return within 14 days

Other features:

  • Operating position: any position
  • Control type: rotary operation
  • Rated current [In]: 40A
  • Adjustment range of thermal protection: 30...40A
  • Mechanical life 50000 cycles
  • Electrical life 50000 cycles for AC-3 at 415V In
  • Maximum operating speed: 25 cycles/h
  • Nominal service: continuous according to IEC 60947-4-1
  • Tightening torque: 5 Nm on EverLink connectors for BTR screws for 25 mm² cable, 8 Nm on EverLink connectors for BTR screws for 35 mm² cable
  • Phase failure sensitivity: Yes compliant with IEC 60947-4-1
  • Disconnection capability: Yes according to IEC 60947-1
  • Climatic sealing: Conforms to IACS E10
  • Degree of protection IK: IK09 enclosure
  • IP degree of protection: IP20 according to IEC 60529
  • Storage temperature: -40/+80 °C
  • Fire resistance: 960 °C in accordance with IEC 60695-2-1
  • Operating altitude: 3000 m
  • Ambient operating temperature: -20/+60 °C

Motor power in kW

  • 18.5 kW at 400/415 V "AC" "50/60 Hz"
  • 22 kW at 500V "AC" "50/60 Hz".
  • 37 kW @ 690V "AC" "50/60 Hz"


Interrupting Rating:

  • 100 kA Icu per IEC 60947-2 at 230/240 V "AC" "50/60 Hz"
  • 50 kA IEC 60947-2 IEC 60947-2 rated cutoff at 440V "AC" "50/60 Hz" Icu
  • 6 kA IEC 60947-2 IEC 60947-2 690V "AC" "50/60Hz" Compliant Icu
  • 50 kA IEC 60947-2 IEC 60947-2 400/415V "AC" "50/60Hz" Compliant Icu
  • 12 kA IEC 60947-2 IEC 60947-2 500V "AC" "50/60Hz" rated Icu


Rated service interrupting capacity [Ics]:

  • 100% according to IEC 60947-2 at 230/240V "AC" "50/60 Hz".
  • 100% according to IEC 60947-2 at 440V "AC" "50/60 Hz".
  • 100% IEC 60947-2 400/415V "AC" "50/60Hz" Compliant
  • 50% per cent according to IEC 60947-2 at 500V "AC" "50/60 Hz".
  • 50% compliant with IEC 60947-2 at 690V "AC" "50/60 Hz".


Reference Standards:

  • EN/IEC 60947-2
  • EN/IEC 60947-4-1
  • UL 60947-4-1
  • CSA C22.2 No 60947-4-1


Dimensions, color and weight

  • Height 132 mm
  • Width 55 mm
  • Depth 136 mm
  • Weight: 0.96 kg
  • Color: dark gray

Data sheet

Type:
Motor protection
Voltage:
690V
Poles:
3P
Degree of protection:
IP20
Amps:
40A
