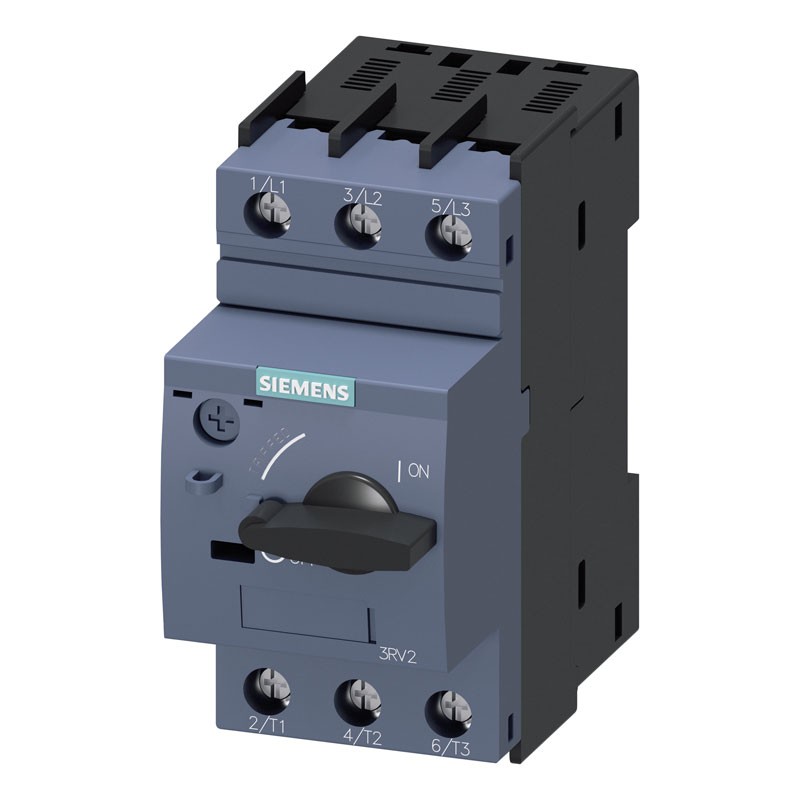

Siemens S00 3RV2 0.11 - 0.16A 100KA motor circuit breaker 3RV20110AA10
SIE 3RV20110AA10
4011209712317
Siemens motor protection switch with the following characteristics:
- Insulation voltage with pollution degree 3 with AC rated value: 690 V
- Rated value impulse withstand voltage: 6 kV
- Number of poles per main circuit: 3
- Settable trip value for current-dependent overload release current: 0.11 ... 0,16A
- Rated value operating frequency: 50 to 60 Hz
- Rated value operating current: 1 ampere
Siemens S00 3RV2 0.11 - 0.16A 100KA motor circuit breaker 3RV20110AA10
€57.82
€57.82
Tax included
Tax included
Pay in installments with Klarna
Items Available: 11
The motor saver is installed on the cable supplying the motor and, when the motor stalls due to a mechanical effect or (in three-phase systems) because a phase fails, it detects excessive absorption and automatically shuts off the electrical power, safeguarding the integrity of the motor.
Features:
- Siemens series
- Insulation voltage with pollution degree 3 with AC rated value 690V
- Impulse withstand voltage rated value 6 kV
- Utilization voltage rated value 690V
- Frequency of use rated value 50/60 Hz
- Power dissipation with AC current rated value in hot operating state 5.5W - in AC in hot operating state for each pole 1.8W
- Design size S00
- Mechanical service life (switching cycles) of main contacts tip 100 000 - of auxiliary contacts tip 100 000
- Installation altitude for altitude above sea level max 2000 m
- Ambient temperature during operation -20/+60 °C - during storage -50/+80 °C - during transport -50/+80 °C
- Short-circuit service interrupting capacity (Ics) at AC 100 kA
- Front side degree of protection IP20
- Pozidriv screwdriver bit size 2
There are no reviews
Data sheet
- Type:
- Motor protection
- Modules:
- 2.5
- Poles:
- 3P
- Breaking capacity:
- 100KA
- Amps:
- 0,11 - 0,16A
