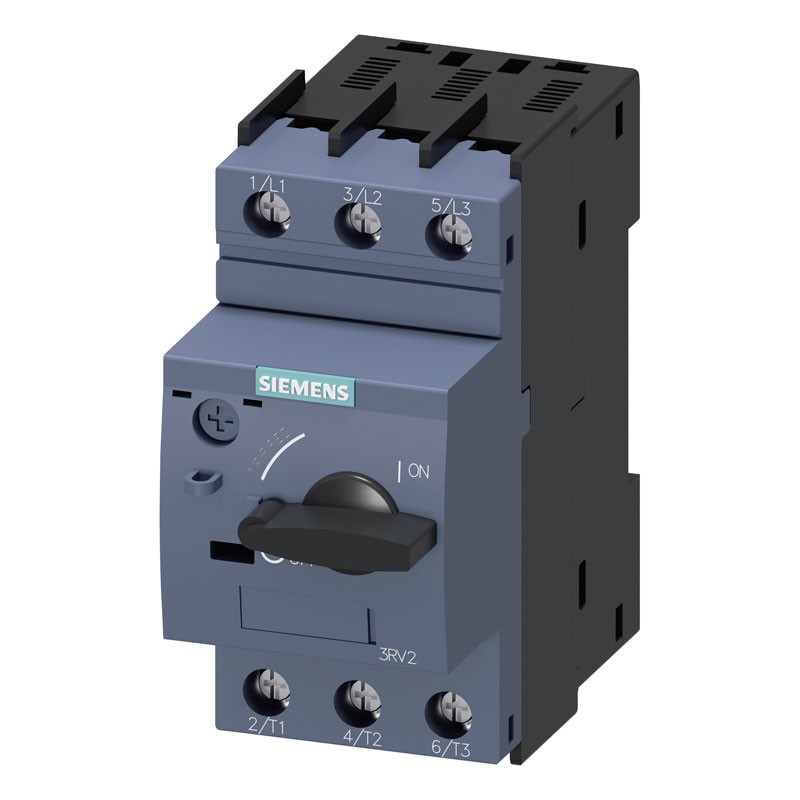

Siemens S00 3RV1 0.7 - 1A 100KA motor circuit breaker 3RV20110JA10


SIE 3RV20110JA10 4011209712393

Siemens motor protection switch with the following characteristics:

  • Insulation voltage with pollution degree 3 with AC rated value: 690 V
  • Rated value impulse withstand voltage: 6 kV
  • Number of poles per main circuit: 3
  • Settable trip value for current-dependent overload release current: 0.7 ... 1A
  • Rated value frequency of use: 50 to 60 Hz
  • Rated value operating current: 1A
Request info about this product

Siemens S00 3RV1 0.7 - 1A 100KA motor circuit breaker 3RV20110JA10

€44.89
€44.89

Siemens S00 3RV1 0.7 - 1A 100KA motor circuit breaker 3RV20110JA10

€44.89
Tax included
klarna Pay in installments with Klarna
qty

Siemens S00 3RV1 0.7 - 1A 100KA motor circuit breaker 3RV20110JA10

€44.89

Buy it within and receive it from Tuesday, 28 May
Two-year warranty
Secure Payment
Easy return within 14 days

The motor saver is installed on the cable supplying the motor and, when the motor stalls due to a mechanical effect or (in three-phase systems) because a phase fails, it detects excessive absorption and automatically shuts off the electrical power, safeguarding the integrity of the motor.

Features:

  • Siemens series
  • Insulation voltage with pollution degree 3 with AC rated value 690 V
  • Impulse withstand voltage rated value 6 kV
  • Utilization voltage rated value 690 V
  • Frequency of use rated value 50/60 Hz
  • Power dissipation with AC current rated value in hot operating state 5.5W - in AC in hot operating state for each pole 1.8W
  • Design size S00
  • Mechanical service life (switching cycles) of main contacts tip 100 000 - of auxiliary contacts tip 100 000
  • Installation altitude for altitude above sea level max 2000 m
  • Ambient temperature during operation -20/+60 °C - during storage -50/+80 °C - during transport -50/+80 °C
  • Short-circuit service interrupting capacity (Ics) at AC 100 kA
  • Front side degree of protection IP20
  • Pozidriv screwdriver bit size 2

Data sheet

Type:
Motor protection
Modules:
2.5
Poles:
3P
Power:
100KA
Amps:
0,7 - 1A
