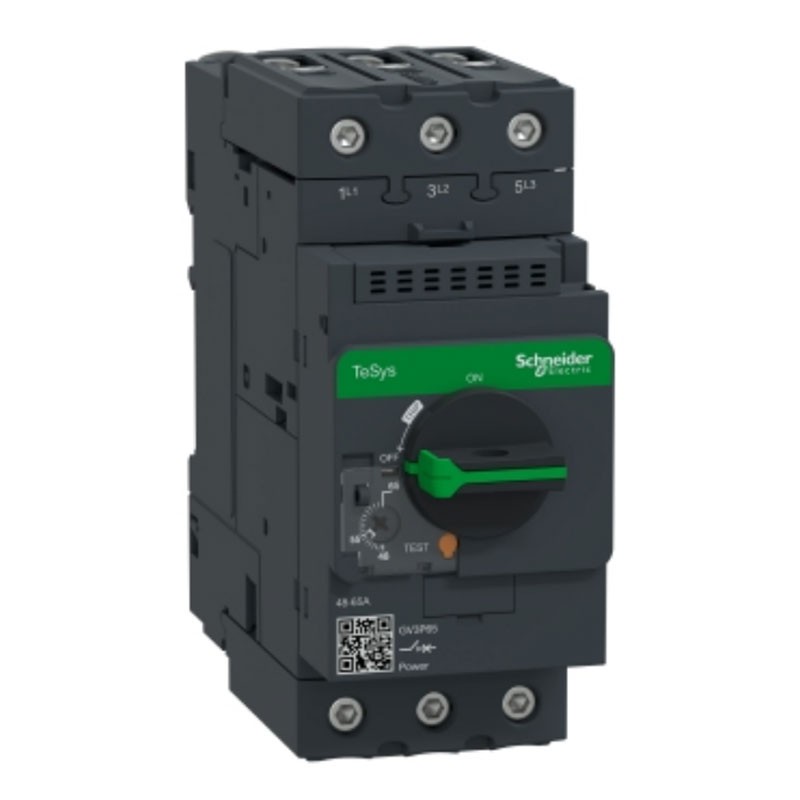

Telemecanique GV3P 48-65A 3P Circuit Breaker Saving Switch GV3P65


SNR GV3P65 3389119405416

Schneider GV3P Telemecanique Circuit Breaker Motor Saving Switch, with the following characteristics:

  • Rated operating voltage [Ue]: 690 V "AC" "50/60 Hz" complying with IEC 60947-2
  • Conventional thermal current in air [Ith]: 65A complying with IEC 60947-4-1
  • Rated impulse withstand voltage [Uimp]: 6 kV complying with IEC 60947-2
  • Magnetic release current: 910A
  • Energy dissipation per pole: 8W
  • Number of poles: 3
  • Network type: "AC"
  • Utilization category: AC-3 complying with IEC 60947-4-1
  • Mains frequency: "50/60 Hz" complying with IEC 60947-4-1
Request info about this product

Telemecanique GV3P 48-65A 3P Circuit Breaker Saving Switch GV3P65

€210.70
€210.70

Telemecanique GV3P 48-65A 3P Circuit Breaker Saving Switch GV3P65

€210.70
Tax included
klarna Pay in installments with Klarna
qty

Telemecanique GV3P 48-65A 3P Circuit Breaker Saving Switch GV3P65

€210.70

Buy it within and receive it from Tuesday, 28 May
Two-year warranty
Secure Payment
Easy return within 14 days

GV3P65 is a TeSys GV circuit breaker from Schneider Electric for motors. It provides thermal-magnetic protection of 30 kW motors at 400 V and high breaking capacity Icu 50 kA. Start-stop control by rotary operation guaranteed for 50,000 cycles AC-3 415V. GV3P65 is a TeSys GV motor circuit breaker from Schneider Electric designed for 30 kW 400 V motor applications. It meets thermal-magnetic protection with a 48-65 A thermal regulation range, 14 xIn magnetic trip and high breaking capacity Icu 50 kA at 400 V. Start-stop control by rotary operation guaranteed for 50,000 cycles AC-3 415V. Available worldwide, has certification to various standards (IEC, UL, CSA, CCC, EAC, for use in marine environments) and is Green Premium (RoHS/REACH) compliant.

Strengths:

  • Full motor protection in one device: short circuit, overload, disconnection
  • Combined with a TeSys contactor, it ensures a complete starte motor solution for type 1 or 2 motors
  • Compact, 55 mm wide, for DIN rail and panel mounting
  • Manual control with rotary operation for Start / Stop, padlockable
  • Possible mounting of auxiliary contacts at the front or side for status and trip signaling
  • Environmentally friendly product performance

Other features:

  • Control type: rotary operation
  • Rated current [In]: 65A
  • Mechanical life 50000 cycles
  • Electrical life 50000 cycles for AC-3 at 415 V In
  • Rated service: continuous in accordance with IEC 60947-4-1
  • Phase failure sensitivity: Yes complies with IEC 60947-4-1
  • Disconnection capability: Yes complying with IEC 60947-1
  • Climatic sealing: conforms to IACS E10
  • IP degree of protection: IP20 complying with IEC 60529
  • Storage temperature: -40/+80 °C
  • Fire resistance: 960 °C complying with IEC 60695-2-1
  • Operating altitude: 3000 m
  • Ambient operating temperature: -20/+60 °C


Motor power in kW:

  • 55 kW at 690V "AC" "50/60 Hz"
  • 45 kW at 500V "AC" "50/60 Hz"
  • 30 kW at 400/415V "AC" "50/60 Hz"


Interrupting capacity:

  • 100 kA Icu complying with IEC 60947-2 at 230/240V "AC" "50/60 Hz"
  • 50 kA Icu complying with IEC 60947-2 at 440 V "AC" "50/60 Hz"
  • 6 kA Icu complying with IEC 60947-2 at 690 V "AC" "50/60 Hz"
  • 50 kA Icu complying with IEC 60947-2 at 400/415 V "AC" "50/60 Hz"
  • 12 kA Icu complying with IEC 60947-2 at 500 V "AC" "50/60 Hz"



Rated service interrupting capacity [Ics]:

  • 100 % complying with IEC 60947-2 at 230/240 V "AC" "50/60 Hz"
  • 100 % complying with IEC 60947-2 at 440 V "AC" "50/60 Hz"
  • 100 % complying with IEC 60947-2 to 400/415 V "AC" "50/60 Hz"
  • 50 % complying with IEC 60947-2 to 500 V "AC" "50/60 Hz"
  • 50 % complying with IEC 60947-2 at 690 V "AC" "50/60 Hz"


Reference Standards:

  • EN/IEC 60947-2
  • EN/IEC 60947-4-1
  • UL 60947-4-1
  • CSA C22.2 No 60947-4-1


Dimensions, color and weight:

  • Height 132 mm
  • Width 55 mm
  • Depth 136 mm
  • Weight 0.96 kg
  • Color: dark gray

Data sheet

Type:
Motor protection
Voltage:
690V
Poles:
3P
Degree of protection:
IP20
Amps:
65A
