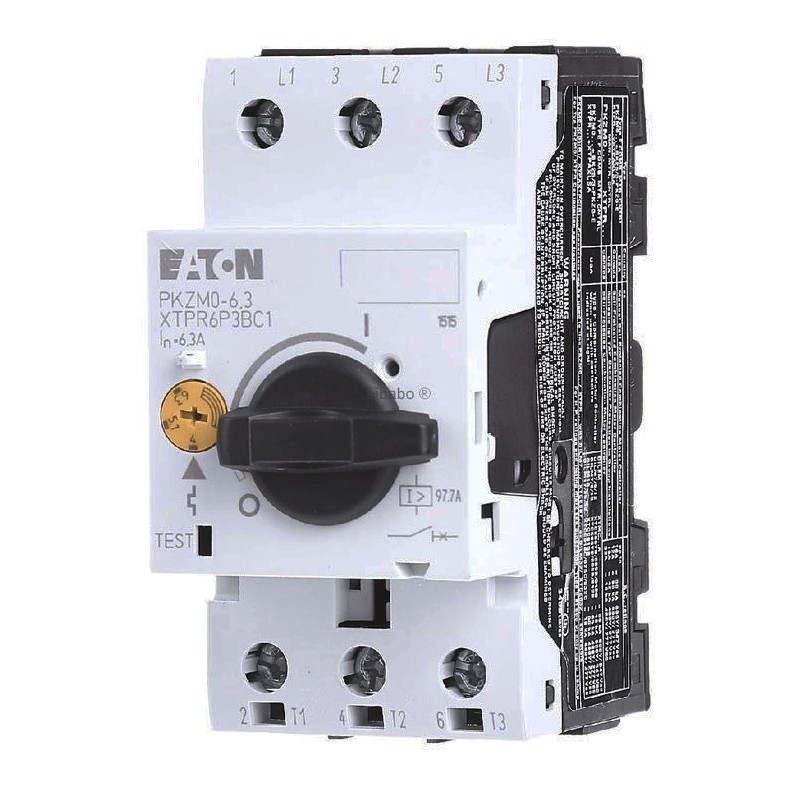

Motor protection Eaton PKZM0-6,3 4-6,3 3 Modules 3-Pole 072738
EAO 072738
4015080727385
The breaker for motor protection Motor protection Eaton PKZM0-6,3 Release overload pressure adjustment 4-6,3 3 Modules 3-Pole, with overload thermal and adjustable magnetic release (instantaneous, sensitive to the lack of phase, screw mounting.
€77.96
Items Available: 2
: 1
Features:
- Height 93 mm
- Without auxiliary switch integrated
- with thermal protection
- Without undervoltage release integrated
- the current limit nominal switching to the short circuit at 400 V, AC: 150 kA
- nominal continuous current Iu: 6.3 A
- the execution of the drive element: knob
- degree of protection IP20
- the range of adjustment of the activator short-circuit non-time delay: 98-98 A
- adjustment range of trip unit overload: 4-6.3
- width: 45mm
- 3-Pin
- operating power rated for AC-3, 230 V: 1.1 kW
- operating power rated for AC-3, 400 V: 2.2 kW
- depth: 76mm
- sensitive to phase failure
- intervention technique: termomagnetico
- operating voltage nominal: 690-690 V
- type of connection circuit in the main electrical: screw connection
- the type of construction of the luminaire: recessed, a technique for fixed installation.
There are no reviews
Data sheet
- Type: Motor protection
- Modules: 3
- Poles: 3P
- Breaking capacity: 150KA
- Amps: 4-6.3A
