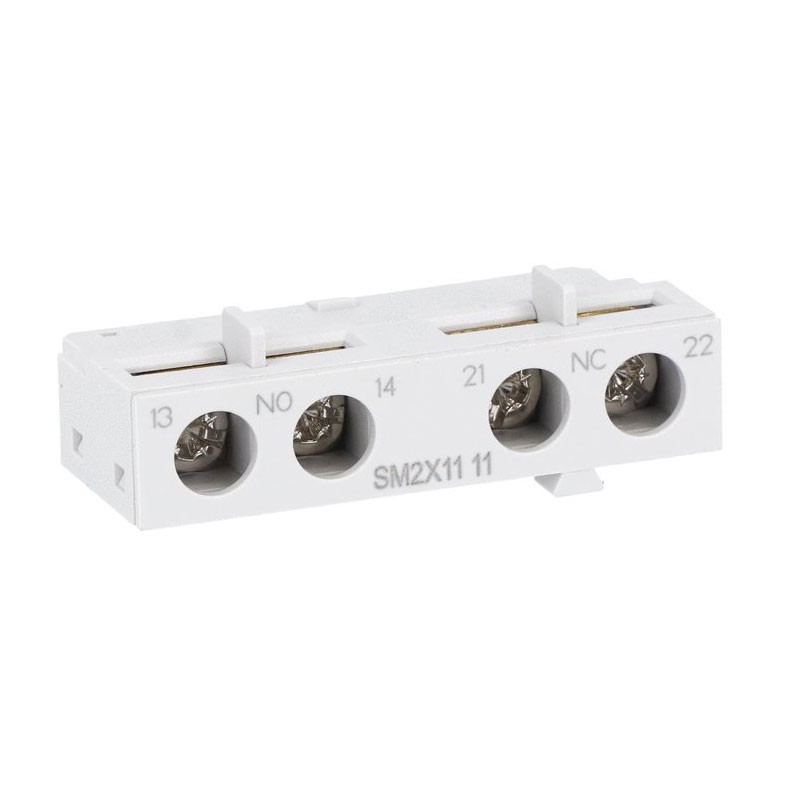

Lovato front-side 1NO+1NC auxiliary contact for SM series SM2X1111
LOV SM2X1111
8013975219904
Lovato additional auxiliary contact, with the following features:
- For SM2R..., SM3R... series.
- Front mounting
- Contact type: 1NO + 1NC
- IEC/EN rated insulation voltage Ui: 250V
- Rated impulse withstand voltage Uimp: kV 4
- UL/CSA and IEC/EN 60947-5-1 designation: B300 - R300
- Operating position: normal Vertical - permissible Any
- Terminals: gender Screw - Pz2 tool
- Weight: 20 grams
- Mechanical life: cycles 100000
- Operating temperature: -20/+70°C
- Storage temperature: -50/+80°C
- Maximum altitude: m 3000
€9.77
Items Available: 36
: 9
There are no reviews
Data sheet
- Type: Auxiliary Contacts
- Voltage: 250V
