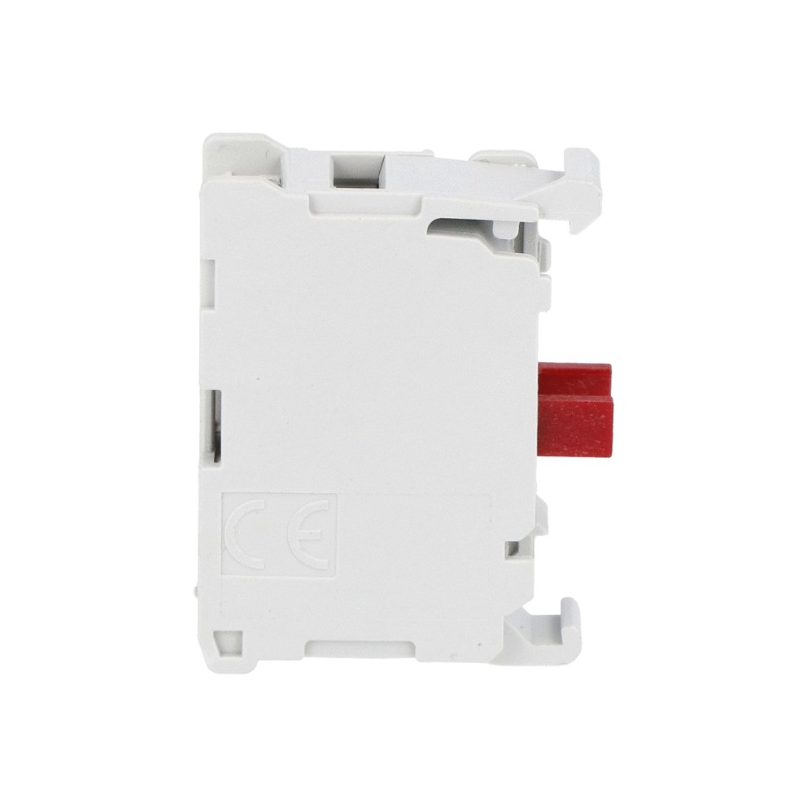

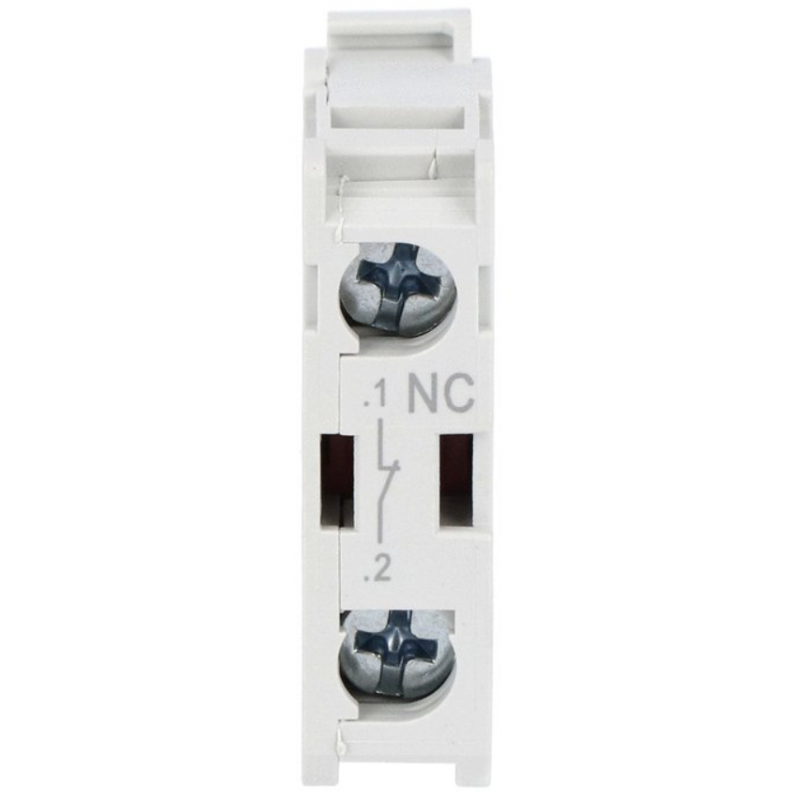

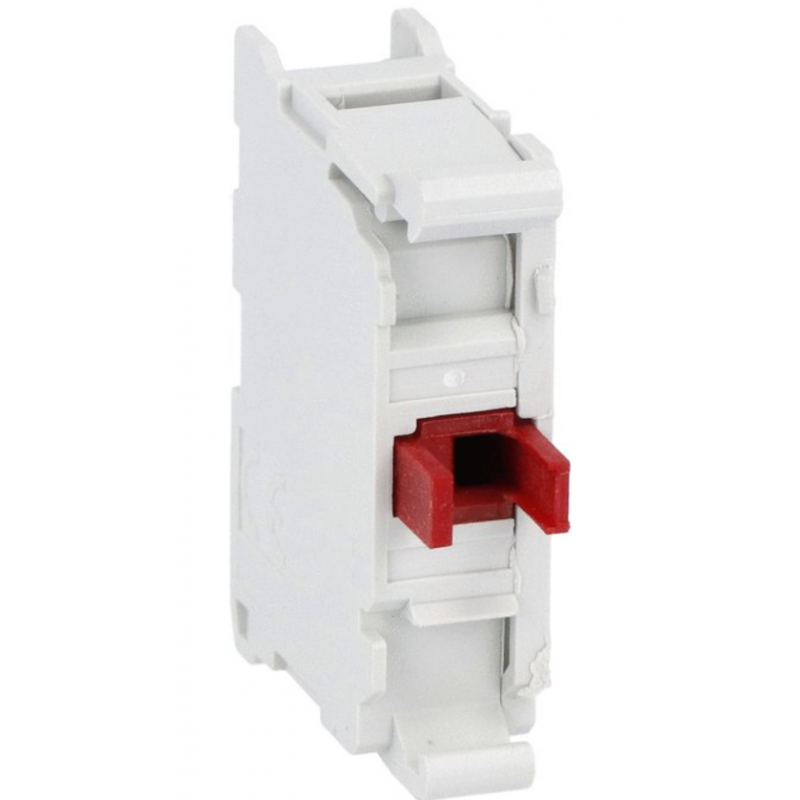

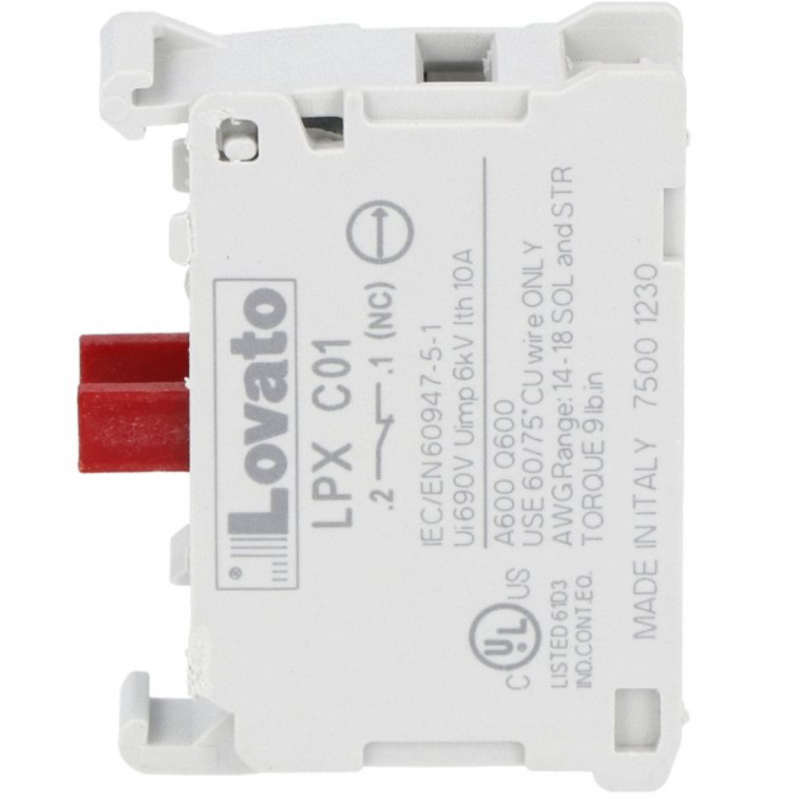

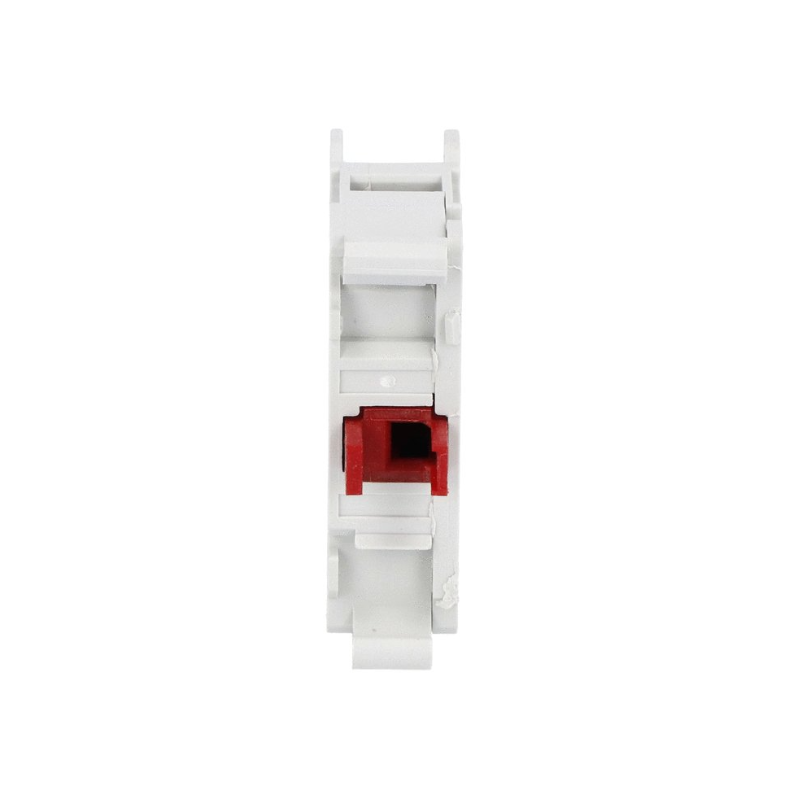

Lovato Platinum 1NC auxiliary contact screw connection LPXC01
LOV LPXC01
8013975189573
Lovato auxiliary contact, with the following characteristics:
- Type: LPXC Ø22mm Platinum series
- IEC/EN rated insulation voltage: 690V
- Ith IEC conventional free air thermal current: 10A
- Conductivity: 1mA 5V
- Contact resistance: mΩ ≤20
- Electrical endurance: 1000000 cycles
- Force per actuation: kg-lb 0.5Kg/1.1Ib
- Max terminal tightening torque: Nm 1
- Screw connections: a Screw
- Conductor cross-section: AWG/kcmil conductor cross-section: max 14, IEC max mm² 1 or 2 / 2.5
- Fixing base to be purchased separately: code LPXAU120
- Operating temperature: -25+70°C
- Storage temperature: -40/+85°C
€3.82
Items Available: 902
: 109
Frequently bought together
There are no reviews
Data sheet
- Type: Auxiliary Contacts
- Voltage: 690V
