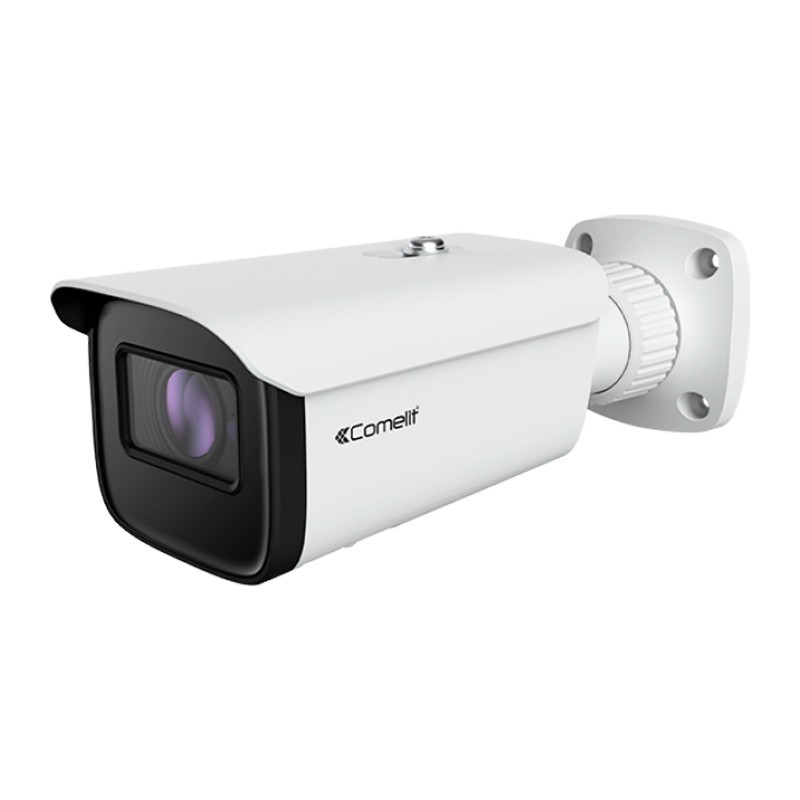

Comelit ADVANCE IP Bullet Camera 4MP Optical 2.8-12mm IPBCAMA04ZB
COE IPBCAMA04ZC
8023903431797
Comelit ADVANCE IP Series Bullet Camera with the following features:
- 12 VDC supply voltage
- Resolution 4MP@30 fps, high frame rate function supported (2MP@60 fps)
- Max. power consumption 9.5W
- Camera sensor 1/3'' CMOS
- Lens type Motorised
- IR LED with 50 metre range (SMART IR)
- Motorised lens size: 2.8 ÷ 12 mm
- Horizontal field of view (°)102.7÷32.2
- Vertical field of view (°)56
- Diagonal field of view (°)103.8÷36.5
- Electronic shutter (s): 1/25÷100000
- Sensitivity: 0.005 (colour), 0 (black and white, IR LED ON)
- Signal-to-noise ratio (dB)>50 (AGC OFF)
Compatible browsers : IE/Google Chrome/Edge/Firefox/Safari.
Compatible accessories to be purchased separately: JBA-BA, CMA-BA, WMA-BA, PMA-A, AMA-A.
€247.50
Items Available: 22
: 1
Frequently bought together
Strengths:
- High frame function (60fps) is only supported by the Advance 32/64/128-channel NVR series
- Video analysis functions: Scene change detection, Abandoned/removed object function, Heat map, Face detection, Video tampering detection, Line crossing detection (human/vehicle distinction), Entry/exit/area intrusion detection (human/vehicle distinction), Human/vehicle counting on line and in area, Metadata analysis, Parking prohibited, Wandering, Audio anomaly
Other technical features:
- Mechanical IR Filter
- Power PoE Standard IEEE 802.3af
- Power supply type: PoE, External power supply
- Height: 80 mm
- Width: 217 mm
- Depth: 80 mm
- Weight: 660 grams
- Casing material type: Die-cast aluminium
- Case Type Bullet
- Colour White
- Operating temperature: -30 /+60°C
- Operating humidity (RH max) (%): 25 ÷ 95
- Video transmission: Triple streaming
- Management software: Comelit CCTV Manager
- Video resolution (H x V - pixels) 2592x1520 (4MP)
- Video compression H.264 / H.264+ / H.265 / H.265+
- Frame rate 30/60fps
- Supported protocols: DDNS, Comelit DNS, DHCP, FTP, HTTP, HTTPS, IPv4, IPv6, NTP, PPPoE, QoS, RTSP, SMTP, UDP, UPnP, SNMP, IEEE 802.1x, ONVIF - (Profile-S, Profile-G), RTMP
- Firmware update via network Yes
- Simultaneously connected users10 (live)
- Network security: Multi-user authorisation, HTTPS, AES encryption, RTSP verification
- Remote viewing from Internet Explorer, Firefox, Chrome, Safari browsers
- Remote control from mobile Comelit CCTV APP
- Motion detection (zones) 396
- Privacy zones (No.) 4
- Backlight compensation (BLC) BLC, HLC
- Digital Effects: Corridor Mode (90° / 180° / 270° rotation), Defog, Mirror (Horizontal, Vertical, 180° rotation), ROI Zones, Lens Distortion Correction
- Wide Dynamic Range (WDR)WDR (120dB)
- 3D-DNR control
- White Balance Adjustment: AWB, Indoor, Manual, Outdoor
- Brightness Adjustment Yes
- Image Flip Yes
- Automatic Gain Control (AGC) Yes
- Camera titling Yes
- Illumination distance3 LED arrays / 30m (Smart IR)
- Vandal-proof grade IK10
- IP67 degree of protection
- Audio Inputs/Outputs1 (RCA) / - (G.711u / G.711a)
- Output type LANEthernet 10/100 Mbit/s (RJ45)
- SD card support (not included): Micro-SD (256GB max)
There are no reviews
Data sheet
- Type: Bullet cameras
- Degree of protection: IP67
- System: IP
- Optical: 2.8-12mm
- Resolution: 4MP (2K)
