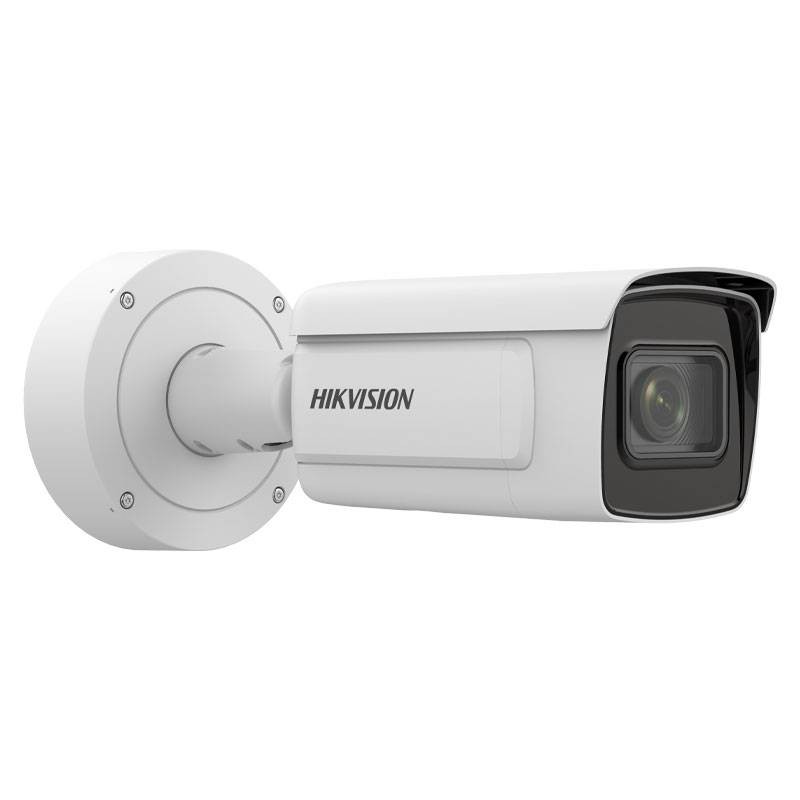

Hikvision Varifocal Bullet Camera 2 MP DeepinView ANPR Moto 311317289
HIK 311317289
6931847133009
Hikvision DeepinView Moto ANPR Varifocal Bullet Camera, ideal for contexts such as parking lots, corporate entrances, LTZ gates and automatic access control systems, with the following features:
-
Resolution: 2 MP optics with high-sensitivity CMOS sensor
-
Recognition: Integrated automatic license plate recognition (ANPR)
-
Performance: Superior in low-light conditions thanks to DarkFighter technology
-
Function: WDR 140 dB for clear images even in backlight conditions
-
Compression technology: H.265+ to reduce bandwidth and storage space
-
Up to: 5 simultaneous video streams for maximum flexibility of use
-
Certifications: IP67 and IK10 for outdoor installations and harsh conditions
€887.55
Items Available: 3
: 1
Frequently bought together
Reliable Varifocal Bullet Camera for Traffic Surveillance
The Hikvision DeepinView ANPR camera with 2 MP motorized varifocal lens is designed specifically for traffic monitoring and real-time license plate recognition. With its high-sensitivity sensor and ability to identify moving vehicles, it is ideal for contexts such as parking lots, corporate entrances, LTZ gates and automatic access control systems.
Advanced night vision with DarkFighter
Hikvision DarkFighter technology enables the camera to deliver sharp images even in low-light conditions (down to 0.0089 Lux). Built-in IR vision with a range of up to 30 meters ensures continuous H24 monitoring without compromising image quality.

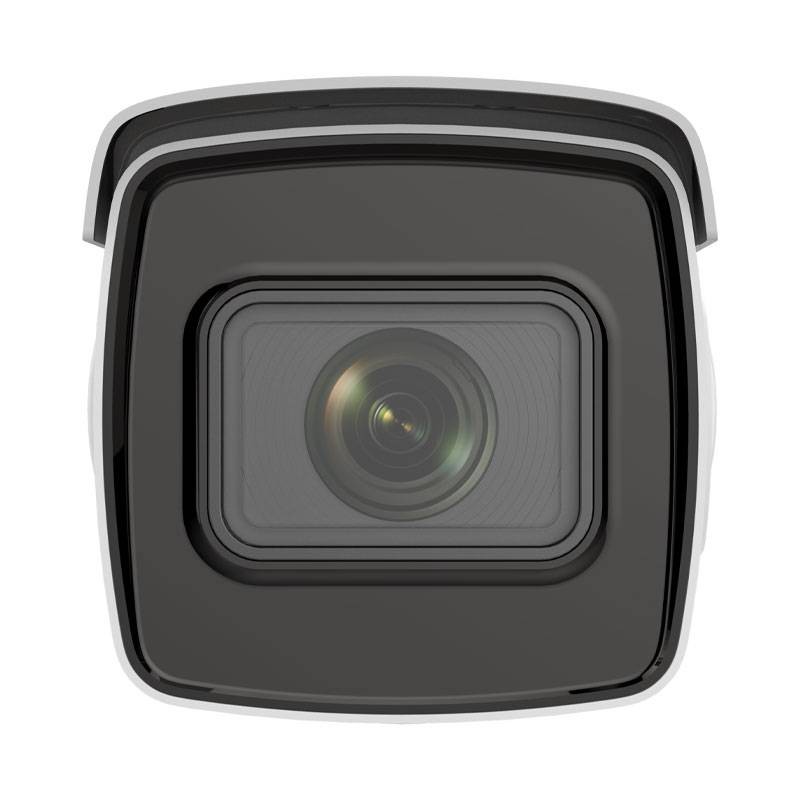

High-definition images and varifocal optics
The 1/2.7" CMOS sensor supports an optical resolution of up to 2688 × 1520 px, offering a horizontal field of view of 39.4° and vertical field of view of 22.1°, adjustable via the 8 mm motorized varifocal lens. Thanks to the 140 dB WDR function, images remain perfectly balanced even in high contrasts.
Intelligent alarms and remote management
The camera supports up to 8 VCA rules for video analysis (such as line-crossing and intrusion), and features audible and visual alarms (flashing white light, customizable voice messages) that enhance active deterrence. Compatible with iVMS-4200, Hik-Connect and ONVIF platforms.
Local and full network storage
Supports MicroSD cards up to 256 GB and can transmit via NAS or FTP. It is compatible with many network protocols (IPv4, HTTPS, RTSP, TLS, etc.) and integrates advanced security features such as IP filtering, HTTPS encryption, IEEE 802.1x.
Rugged design and protection for outdoor environments
Designed to withstand harsh conditions, the housing is IP67 certified for dust and water resistance, and IK10 for vandal protection. The camera also features TVS 6000V lightning and surge protection.
Ideal applications
This camera is suitable for:
-
ANPR systems (Automatic Access, LTZ gates)
-
Parking lots, businesses, apartment buildings
-
Urban traffic control and city video surveillance
-
Outdoor environments exposed to weather and vandalism
Technical Specifications Hikvision Camera
Camera
| Parameter | Value |
|---|---|
| Image Sensor | 1/1.8-inch progressive scan CMOS |
| Maximum resolution | 1920 × 1080 |
| Minimum illumination | Color: 0.0005 Lux @ (F1.2, AGC ON) B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Day/Night Filter | IR filter with anti-ghost blue glass module |
| Shutter speed | 1 s to 1/100,000 s |
Lens
| Parameter | Value |
|---|---|
| Focal length | 2.8-12 mm / 8-32 mm |
| Field of view | 2.8-12 mm: Horizontal: 114.5°-41.8° Vertical: 59.3°-23.6° Diagonal: 141.1°-48° 8-32 mm: Horizontal: 42.5°-15.1° Vertical: 23.3°-8.64° Diagonal: 49.6°-17.3° |
| Focusing | Automatic, Semi-automatic, Manual |
| Iris | P-iris |
| Aperture | 2.8-12 mm: F1.2-F2.5 8-32 mm: F1.7-F1.73 |
Performance
| Range | DORI (Detect / Observe / Recognize / Identify) |
|---|---|
| Wide (2.8-12 mm) | 45 m / 17.9 m / 9 m / 4.5 m |
| Wide (8-32 mm) | 112.7 m / 44.8 m / 22.6 m / 11.3 m |
| Very (2.8-12 mm) | 111.8 m / 44.3 m / 22.4 m / 11.2 m |
| Very (8-32 mm) | 300 m / 119 m / 60 m / 30 m |
Infrared Illumination
| Parameter | Value |
|---|---|
| IR Distance | 2.8-12 mm: 50 m / 8-32 mm: 100 m |
| Intelligent supplementary light | Yes |
| Wavelength | 850 nm |
Video
| Parameter | Value |
|---|---|
| Resolution and Frame Rate | Main stream: up to 60 fps at 1080p Sub-stream and additional streams: up to the fifth stream |
| Compression | H.265+/H.265/H.264+/H.264/MJPEG |
| Bitrate | 32 Kbps - 8 Mbps |
| ROI | 4 areas per stream |
Audio
| Parameter | Value |
|---|---|
| Type | Mono, line input/output (with -Y) |
| Compression | G.711, G.722.1, G.726, MP2L2, MP3, AAC-LC, PCM |
| Bitrate | 8 to 320 Kbps |
| Noise filtering | Yes |
Network and Security
| Parameter | Value |
|---|---|
| Protocols Supported. | TCP/IP, HTTP, HTTPS, FTP, SNMP, RTP, RTSP, IPv4/IPv6, SSL/TLS, etc. |
| Users | Up to 32 users, 3 levels (Admin, Operator, User) |
| Advanced Security | HTTPS, complex passwords, AES128/256 encryption, TPM 2.0, TLS 1.2/1.3, NEMA 4X |
Smart Functions
| Parameter | Value |
|---|---|
| Deep Learning | Vehicle detection, license plate recognition, perimeter protection, parking management |
| Smart Events | Scene change, blurring, audio exceptions |
| LPR performance | Accuracy ≥98%, speed up to 120 km/h (front) |
Interfaces
| Parameter | Value |
|---|---|
| Ethernet | 1 RJ45 10/100/1000 Mbps port |
| Alarms | 2 inputs / 2 outputs |
| RS-485 / Wiegand | Supported (model -Y) |
| Storage | MicroSD slot up to 1 TB |
General
| Parameter | Value |
|---|---|
| Power supply | 12 VDC ±20% or PoE (802.3at, Type 2, Class 4) |
| Material | Aluminum alloy |
| Degree of protection | IP67, IK10, NEMA 4X (model -Y) |
| Operating Temperature | -40 °C to +60 °C |
| Languages supported | 33 languages, including Italian |
| Dimensions and weight | Ø140-144 mm × 347-351 mm, 1.95 kg |
There are no reviews
Data sheet
- Type: Bullet cameras
- Degree of protection: IP67
- System: IP
- Optical: 2.8-12mm
- Resolution: 2MP (1080P)
8-32mm
