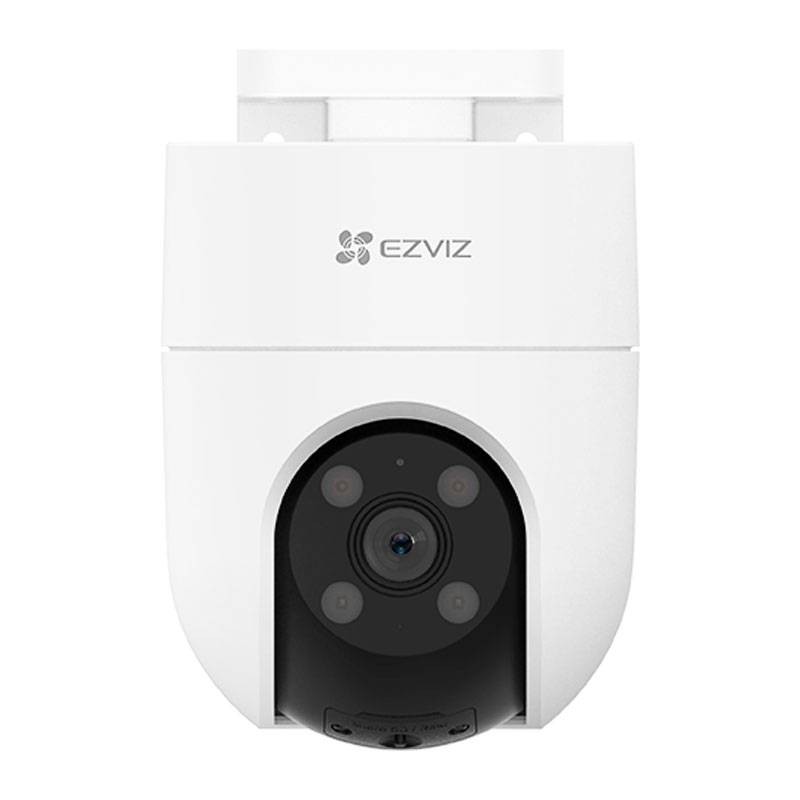

Ezviz H8C 2K+ 2.4 GHz Ethernet RJ45 M12 motorized Wifi camera 303102611
HIK 303102611
6941545614939
Ezviz H8c 2K+ Wi-Fi camera, 360-degree smart surveillance with 2K+ vision, AI and active defense, with the following features:
-
Lens: 4mm F1.6 - 6mm F1.6
-
Resolution: 2560×1440 (2K+), 30 fps
-
Viewing angles: Up to 104 degrees diagonal
-
Rotation: 350 degrees horizontal / 80 degrees vertical
-
Night vision: Up to 30 m, IR or color
-
Video compression: H.265 / H.264
-
Audio: Two-way communication
-
Connection: Wi-Fi 2.4 GHz + Ethernet (RJ45)
-
Protection: Weatherproof
-
Power consumption: Max 12 W
€70.15
Items Available: 10
Ezviz surveillance camera with 2K+ resolution and 360-degree panning
The Ezviz H8c 2K+ camera, provides a full field of view without blind spots, thanks to its 350-degree horizontal rotation and up to 80-degree vertical tilt. With Quad HD 2K+ resolution, every image captured is sharp and detailed, even in very large areas such as courtyards, entrances, parking lots or gardens.
Advanced night vision and intelligent modes
The camera integrates three night vision modes:
-
Color, thanks to the two LED spotlights
-
Infrared, so as not to disturb neighbors
-
Smart, which automatically activates the light if it detects a person
Automatic IR filter, digital WDR and 3D DNR technology further improve image quality in all conditions.
Smart detection with AI and automatic tracking
The built-in AI system detects human presence, excluding animals or objects. Upon detection, the camera locks onto the subject, tracks it by rotating and zooms in on the image, providing an advanced and accurate level of tracking.
Active defense and smart notifications
When it detects an intruder, the H8c 2K+, activates a siren and two strobe spotlights, functioning as a true deterrent. Push notifications are sent via the EZVIZ app, which also allows users to set up to 12 predefined locations to be recalled with one click.
Easy installation and stable connectivity

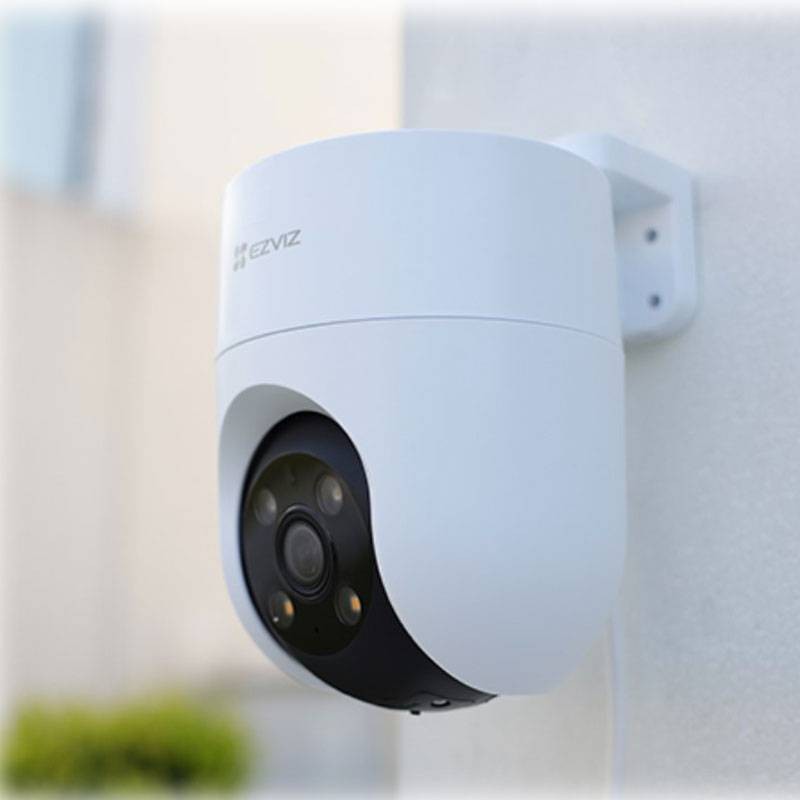

Compact design with removable mounting plate simplifies installation on walls or under eaves. Dual 2.4 GHz Wi-Fi antennas ensure stable and secure connection even in outdoor areas.
Package Contents.
-
H8c 2K+ camera
-
Screw kit and drilling template
-
Waterproofing kit
-
Power supply
-
User manual
Technical Specifications Ezviz Wifi Camera
Camera
| Image Sensor | 1/3-inch progressive scan CMOS |
| Shutter speed | Self-adaptive shutter |
| Lens | 4 mm F1.6 - Angles: 46° (vert), 89° (horizon), 104° (diag) 6 mm F1.6 - Angles: 28° (vert), 52° (horizon), 60° (diag) |
| Tilt angle | Horizontal: 350°, Tilt: 80° |
| Minimum illumination | 0.5 lux (f/1.6, AGC active), 0 lux with IR |
| Lens mount | M12 |
| Night vision | Automatic IR filter, 30 m range |
| DNR / WDR | 3D DNR / WDR Digital |
Video and Audio
| Maximum resolution | 2560 × 1440 (2K?) |
| Frame rate | Up to 30 fps (auto-adaptive) |
| Video compression | H.265 / H.264 - Main Profile |
| Maximum bitrate | 4 Mbps |
| Audio transmission | Self-adaptive |
Network
| Wi-Fi | IEEE802.11b/g/n - 2.4 GHz |
| Bandwidth | 20 MHz |
| Transmission speed | 11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps |
| Wi-Fi pairing | AP |
| Ethernet port | RJ45 10/100M adaptive |
| Protocols | Proprietary EZVIZ Cloud |
Storage
| Local storage | MicroSD slot (up to 512 GB) |
| Cloud | EZVIZ Cloud (subscription required) |
Features
| Intelligent alarm | AI people detection |
| Customized alarm area | Supported |
| Two-way communication | Yes |
| General Functions | Anti-flicker, dual stream, heartbeat, password, watermark |
| Preset positions | Supported |
General Information
| Model | CS-H8c (2K?) |
| Power supply | 12 V DC / 1 A |
| Power consumption | Max 12 W |
| Operating conditions | -30 °C to +50 °C / 95% RH (non-condensing) |
| Protection | Waterproof construction |

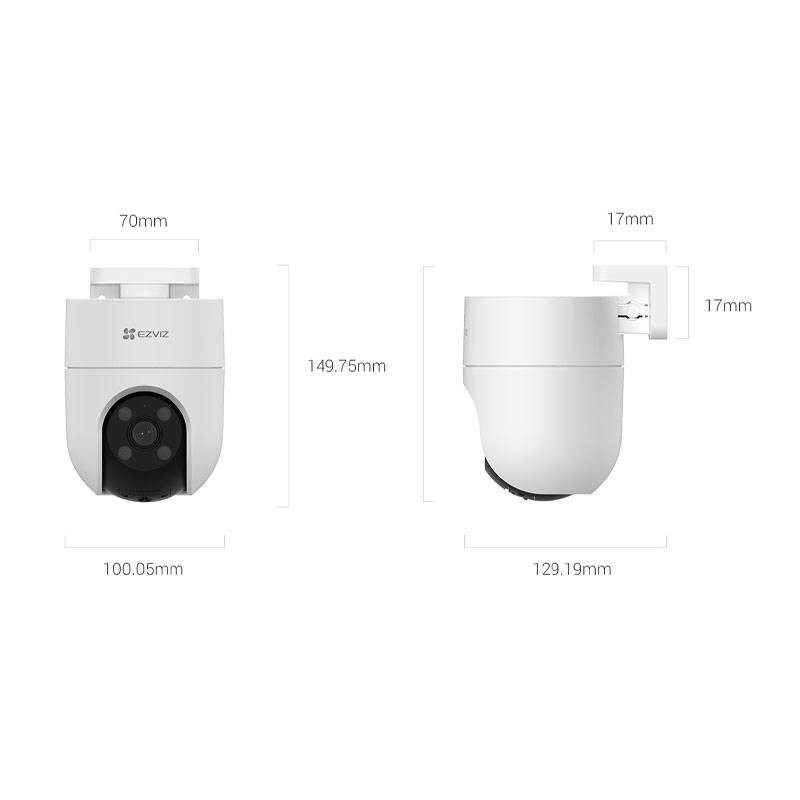

| Dimensions | 100.05 × 129.19 × 149.75 mm |
| Packaging | 140 × 140 × 192 mm |
| Net weight / with packaging | 435 g / 745 g |
There are no reviews
Data sheet
- Type: Bullet cameras
- Degree of protection: IP67
- System: IP
- Optical: 4mm
- Resolution: 4MP (2K)
6mm
