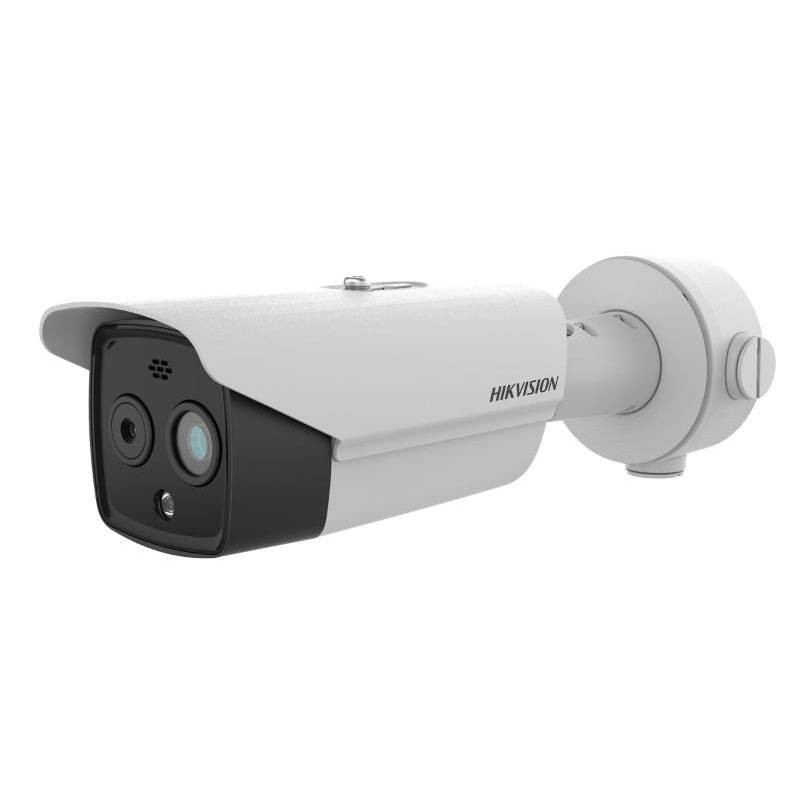

Hikvision Optical Thermal Bullet Camera DS-2TD2628-10/EA CMOS 4 MP 305402215
HIK 305402215
Hikvision DS-2TD2628-10/EA Optical Thermal Camera, is a professional bispectrum bullet camera designed to provide maximum security through the combination of high-sensitivity thermal sensor (NETD < 40 mK) and high-definition optical sensor. The thermal module enables detection of thermal anomalies, people and vehicles even in total darkness, with the following features:
-
Thermal resolution: 256 × 192 px, 12m pixel pitch, NETD < 40 mK
-
Optical sensor: 4 MP CMOS (2688 × 1520 px) with IR up to 30 meters
-
Temperature detection: -20°C to +150°C with accuracy ±8°C
-
Analysis: VCA intelligent video and built-in audible/visual alarms
-
Housing: IP67 and IK10 for professional outdoor use
-
Dual video streaming: Thermal and optical, H.265/H.264 compression
-
Power supply: PoE or 12/24V, with SD memory up to 256 GB
-
Ideal for: Perimeter security, industrial sites and fire prevention
€827.53
Items Available: 7
: 4
Frequently bought together
Hikvision Bullet Camera Precise thermal detection and fire prevention
Equipped with an uncooled VOx sensor, the camera measures temperatures between -20°C and +150°C with ±8°C accuracy. Customizable measurement rules allow you to monitor up to 21 zones (points, areas and lines) and trigger real-time alarms. Perfect for industrial facilities, warehouses, sensitive sites and fire prevention.
Intelligent video analysis and built-in deterrent alarms
This camera integrates VCA (Video Content Analysis) functions based on deep learning for vehicle and people recognition. Eight configurable behavior rules are available, such as line crossing, intrusion and entering/exiting an area. Alarms include flashing white light, audible alerts, and preset or customizable voice messages.
Sharp images and advanced video compression
The 4 MP CMOS optical module delivers detailed images with 120 dB WDR and built-in IR up to 30 meters. With dual H.265/H.264 encoding and MJPEG compatibility, video transmission is always smooth and efficient. The camera supports microSD up to 256 GB and NAS storage.
Comprehensive security and flexible management
It offers advanced network protocols (HTTPS, 802.1x, TLS) and multilevel user authentication. It is compatible with iVMS-4200 software, Hik-Connect and modern browsers. It can handle up to 20 simultaneous live views, with protection from unwanted access through IP filtering and encryption.
Designed for extreme environments
IP67 and IK10 certified design ensures resistance to dust, water, shock and extreme environmental conditions (down to -40°C). Supports power supply via PoE or 12/24V and features dual video output (digital and analog). Maximum power consumption is only 8.5 W.
Where to install it
This Hikvision camera is perfect for:
-
Industrial or logistics facilities
-
Warehouses and sheds with fire hazards
-
Access control and security perimeters
-
Monitoring isolated or critical areas H24
Technical Specifications Hikvision Camera
Thermal Module
| Parameter | Value |
|---|---|
| Image Sensor | Array of uncooled vanadium oxide focal planes |
| Resolution | 256 × 192 |
| Pixel pitch | 12 μm |
| Spectral range | 8 μm to 14 μm |
| NETD | < 40 mK (25°C, F1.0) |
| Focal length | 9.7 mm |
| IFOV | 1.24 mrad |
| Field of view | 18,0° × 13,5° |
| Minimum focusing distance | 1.5 mrad |
| Aperture | F1.0 |
| Digital zoom | ×2, ×4 |
Optical Module
| Parameter | Value |
|---|---|
| Image Sensor | 1/2.7-inch progressive scan CMOS |
| Resolution | 2688 × 1520 |
| Minimum illumination | 0.0089 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Shutter speed | 1 s to 1/100,000 s |
| Focal length | 8.0 mm |
| Field of view | 39,4° × 22,1° |
| Aperture | F1.6 |
| WDR | 120 dB |
Illuminator and Alarms
| Parameter | Value |
|---|---|
| IR Distance | Up to 30 meters |
| White light | Up to 30 meters, adjustable flashing |
| Audible alarm | 2 preset + 6 customizable |
Smart Functions
| Parameter | Value |
|---|---|
| VCA | 8 rules (line, intrusion, region input/output) |
| Temperature measurement | 21 rules (10 points, 10 areas, 1 line) |
| Temperature range | -20°C to 150°C |
| Accuracy | ±8°C |
| General functions | Fire detection, smoke detection, sun filter |
Video and Audio
| Parameter | Value |
|---|---|
| Thermal frame rate | 25 fps (1280×720, 704×576, 640×512, 320×240) |
| Optical frame rate | 25/30 fps (2688×1520, 1920×1080, 1280×720) |
| Video compression | H.265 / H.264 / MJPEG |
| Audio compression | G.722.1, G.711ulaw/alaw, MP2L2, G.726, PCM |
Network
| Parameter | Value |
|---|---|
| Protocols | IPv4/IPv6, HTTP, HTTPS, FTP, SNMP, ONVIF, etc. |
| Storage | MicroSD up to 256 GB, NAS, ANR |
| API | ISAPI, Hikvision SDK, ISUP, ONVIF (S/G) |
| Users | Up to 32 users, 3 levels |
| Security | MAC binding, HTTPS, 802.1x, IP filtering |
Interfaces
| Parameter | Value |
|---|---|
| Alarm IN/OUT | 2 inputs / 2 outputs |
| Audio IN/OUT | Mic/line in (3.5 mm) / Line out (600 Ω) |
| Communication | RJ45 10/100M, RS-485 |
| Analog output | 1 Vpp / 75 Ω (PAL/NTSC/BNC) |
General
| Parameter | Value |
|---|---|
| Power supply | 24 VAC ± 25%, 12 VDC ± 25%, PoE (802.3af, class 3) |
| Power Consumption | Max 8.5 W |
| Operating Temperature | -40°C TO +65°C |
| Protection | IP67, IK10, TVS 6000V |

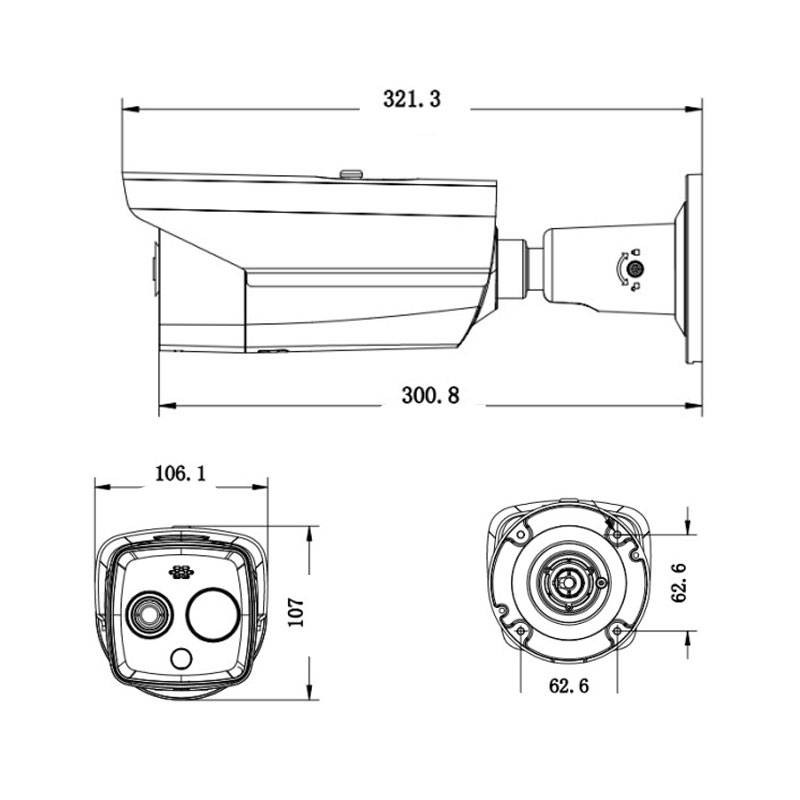

| Dimensions | 321.3 × 106.1 × 107.0 mm |
| Weight | 1550 g |
There are no reviews
Data sheet
- Type: Bullet cameras
- Degree of protection: IP67
- System: IP
- Optical: 8mm
- Resolution: 4MP (2K)
