Ezviz H9c Dual 3K 2.4 GHz Wifi Optical Camera Ethernet RJ45 303103044
HIK 303103044
6941545632421
Ezviz H9c Dual 3K Wifi Camera, advanced surveillance with dual smart lenses and 360-degree coverage, with the following features:
-
Lenses: Wide angle: 2.8mm f/1.6, 132 degrees diagonal - Motorized: 6mm f/1.6, 64 degrees diagonal
-
Resolution: 2880×1620 (3K)
-
Frame rate: Max 15 fps
-
Video compression: H.265 / H.264
-
Night vision: Up to 30 m
-
Wi-Fi: 2.4 GHz, IEEE 802.11b/g/n
-
Ethernet port: RJ45 (10/100 Mbps)
-
Degree of protection: IP65
-
Power supply: 12V DC / 1.5 A 12 W max.
€129.63
Items Available: 2
H9c Dual 3K Dual Lens, Dual Protection Camera
The H9c Dual 3K revolutionizes the concept of home video surveillance with two independent lenses:
-
2.8 mm wide-angle lens for wide view (132 degrees diagonal)
-
6mm motorized telephoto lens with pan and tilt for automatic zoom and subject tracking
They work together to detect, track and record any suspicious movement, even from different angles.
AI detection for humans and vehicles
Equipped with advanced artificial intelligence, the H9c recognizes human and vehicle shapes, minimizing false alarms (insects, animals, leaves). Intelligent co-detection allows the main lens to lock onto the subject while the telephoto lens automatically rotates to zoom in and record thetion in detail.
Advanced and customizable night vision
With 4 powerful LEDs, the camera offers three modes:
-
Color vision
-
Black and white IR vision
-
Intelligent night vision (automatic switching based on detection)
24/7 Active Protection
In case of intrusion, the camera activates:
-
High-intensity siren
-
Strobe spotlights to deter intruders
Can also play back recorded voice messages, or activate real-time communication via app.
Flexible installation, stable Wi-Fi
Equipped with dual enhanced antennas, the H9c provides a connection up to 220 meters (in open field). It is water and dust resistant (IP65), ideal for mounting on walls, attics, or outdoor supports.
Package Contents.
-
H9c Camera
-
Drilling jig
-
Screw kit
-
Waterproofing kit
-
Power supply
-
Regulatory information
-
Quick Start Guide
-
Certifications
Ezviz Dual Lens Camera Technical Specifications
Camera
| Image Sensor | 1/2.7-inch progressive scan CMOS |
| Shutter speed | Self-adaptive shutter |
| Lens | Fix Lens: 2.8 mm f/1.6 - Angles: 132° (diag), 110° (horizon), 58° (vert) Pan & Tilt Lens: 6 mm f/1.6 - Angles: 64° (diag), 56° (horizon), 29° (vert) |
| Tilt Angle | Horizontal: 350°, Tilt: 80° |
| Minimum illumination | 0.5 lux (f/1.6, AGC active); 0 lux with IR |
| Lens mount | M12 |
| Night vision | Automatic IR filter - up to 30 m (B/W) |
| DNR / WDR | 3D DNR / WDR Digital |
Video and Audio
| Maximum resolution | 2880 × 1620 |
| Frame rate | Up to 15 fps (auto-adaptive) |
| Video compression | H.265 / H.264 - Main Profile |
| Video bitrate | Ultra-HD, HD, Standard - Adaptive |
| Audio transmission | Self-adaptive |
Network
| Wi-Fi | IEEE802.11b/g/n - 2.4 GHz |
| Bandwidth | 20 MHz |
| Transmission speed | 11b: 11 Mbps, 11g: 54 Mbps, 11n: 150 Mbps |
| Wi-Fi pairing | AP |
| Ethernet port | RJ45 10/100M adaptive |
| Network security | WPA-PSK / WPA2-PSK |
| Protocols | Patented EZVIZ Cloud |
Smart Features
| Intelligent Alarm | AI: human figure, shape and vehicle motion detection |
| Automatic tracking | Supported |
| Custom alarm areas | Supported |
| Two-way communication | Supported |
| Preset positions | Supported |
| General Functions | Anti-flicker, dual stream, heartbeat, password protection, watermarking |
Archiving
| Local storage | MicroSD up to 512 GB |
| Cloud | EZVIZ Cloudplay (with subscription) |
General Information
| Operating Conditions. | -30°C to +50°C - RH ≤ 95% (non-condensing) |
| Degree of protection | IP65 |
| Power supply | 12 V DC / 1.5 A |
| Maximum power consumption | 12 W |

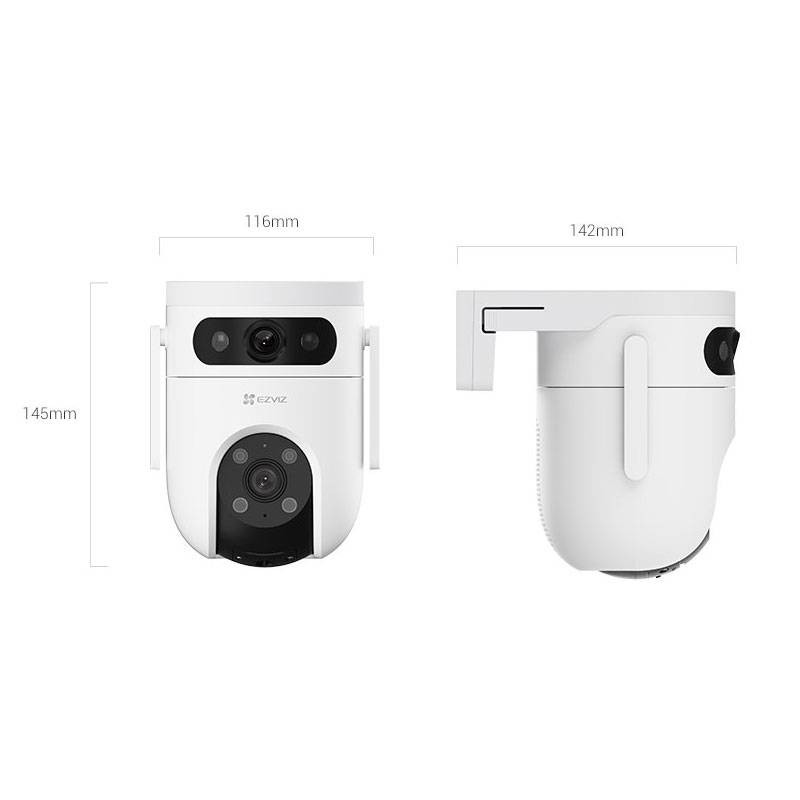

| Dimensions | 145 × 116 × 142 mm |
There are no reviews
Data sheet
- Type: Bullet cameras
- Degree of protection: IP67
- System: IP
- Optical: 2.8 mm
- Resolution: 3K
6mm
