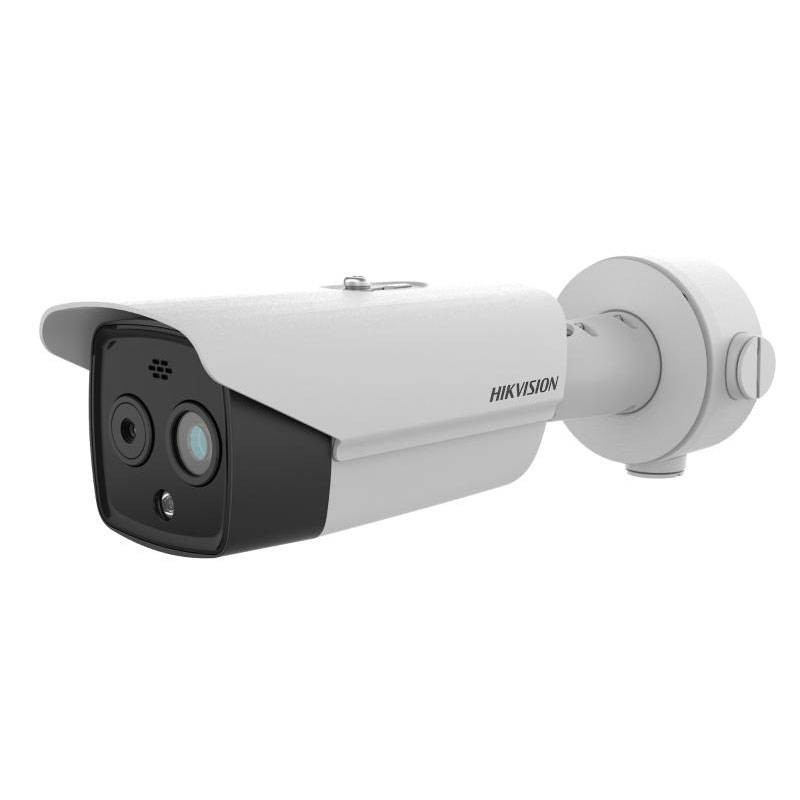

Hikvision Optical Thermal Bullet Camera DS-2TD2628-7/EA CMOS 4 MP 305402217
HIK 305402217
Hikvision bispectrum Bullet camera, perfect for detecting overheating or early stage fires. Supports up to 21 customizable monitoring rules (points, areas, lines) for precise thermal monitoring, with the following features:
-
Thermal sensor: VOx 256 × 192 px, pixel pitch 12m, NETD < 40 mK
-
Optical sensor: 4 MP CMOS (2688 × 1520 px) with IR up to 30 m
-
Thermal sensing: -20°C to +150°C with accuracy ±8°C
-
VCA: With vehicle/people classification and 8 configurable rules
-
Alarms: Visual and audible with white LED and customizable voice alerts
-
Protection: IP67 and IK10, with PoE or 12/24V power supply
-
Dual video output: Network + analog, microSD slot up to 256GB
-
Ideal for: Industrial sites, parking lots, logistics, perimeter security
€749.75
Items Available: 15
: 14
Frequently bought together
Hikvision Bispectrum Bullet Camera Thermal and optical surveillance in one device
The Hikvision bispectrum network camera integrates two independent camera modules: a 256×192-pixel thermal one with an uncooled VOx sensor, and a 4 MP high-definition optical one. This combination makes it possible to detect presence, movement and thermal anomalies in any light or visibility condition, day or night.
Thermal monitoring for security and fire prevention
Equipped with temperature measurement from -20°C to +150°C with a margin of error of ±8°C, this camera is perfect for detecting overheating or early stage fires. It supports up to 21 customizable monitoring rules (points, areas, lines) for precise thermal monitoring.
Intelligent video analysis and customized alarms
The Video Content Analysis (VCA) function can distinguish people from vehicles with 4 configurable rules: line crossing, intrusion, area entry and exit. Built-in audible and visual alarm includes a flashing white light and preset or customized voice messages, useful for active deterrence.
High-quality video and efficient compression
The optical module offers 2688×1520 px resolution with minimum illumination of only 0.0089 lux (0 lux with IR). The 120 dB WDR ensures a clear view even in backlight conditions. Both video modules support H.265/H.264 compression for main and secondary streams, with framerates up to 30 fps.
Comprehensive connectivity and advanced management
The camera is compatible with all common network protocols (HTTP, HTTPS, RTSP, FTP, ONVIF, etc.) and offers advanced security features such as HTTPS encryption, multi-level authentication and IP filtering. It can be managed via Hik-Connect software and iVMS-4200, with support for up to 20 simultaneous live views.
Rugged design for continuous outdoor use
Made with IP67 casing and IK10 rating for mechanical protection, it withstands extreme environmental conditions (-40°C to +65°C). Power can be supplied via PoE or directly from 12/24 V mains. The body integrates a BNC analog output for legacy monitors.
Recommended applications.
Perfect for:
-
Industrial plants, manufacturing and storage facilities
-
High fire hazard areas, warehouses and construction sites
-
Security perimeters, parking lots, fences and access areas
-
H24 advanced video surveillance, even in critical conditions
Technical Specifications Hikvision Thermal Camera
Thermal Module
| Parameter | Value |
|---|---|
| Image Sensor | Array of uncooled vanadium oxide focal planes |
| Resolution | 256 × 192 |
| Pixel pitch | 12 μm |
| Spectral range | 8 - 14 μm |
| NETD | < 40 mK (25°C, F1.0) |
| Focal length | 6.9 mm |
| IFOV | 1.74 mrad |
| Field of view | 24,9° × 18,7° |
| Minimum focusing distance | 1 mrad |
| Aperture | F1.0 |
| Digital zoom | ×2, ×4 |
Optical Module
| Parameter | Value |
|---|---|
| Image Sensor | 1/2.7-inch progressive scan CMOS |
| Resolution | 2688 × 1520 |
| Minimum illumination | 0.0089 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Shutter speed | 1 s to 1/100,000 s |
| Focal length | 6.4 mm |
| Field of view | 53,0° × 28,0° |
| Aperture | F1.6 |
| WDR | 120 dB |
Illuminator and Alarms
| Parameter | Value |
|---|---|
| IR Distance | Up to 30 meters |
| White light | Up to 30 meters, adjustable flashing |
| Audible alarm | 2 preset + 6 customizable |
Smart Functions
| Parameter | Value |
|---|---|
| VCA | 8 total rules (line, intrusion, area entry/exit) |
| Temperature measurement | 21 rules (10 points, 10 areas, 1 line) |
| Temperature range | -20 °C to 150 °C |
| Accuracy | ±8 °C |
| General functions | Fire detection, smoke detection, sun filter |
Video and Audio
| Parameter | Value |
|---|---|
| Thermal frame rate | 25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240) |
| Optical frame rate | 25/30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Video compression | H.265 / H.264 / MJPEG |
| Audio compression | G.722.1, G.711ulaw, G.711alaw, MP2L2, G.726, PCM |
Network
| Parameter | Value |
|---|---|
| Supported protocols | IPv4/IPv6, HTTP, HTTPS, FTP, SNMP, ONVIF, etc. |
| Storage | MicroSD up to 256 GB, NAS, ANR |
| API | ISAPI, Hikvision SDK, ISUP, ONVIF |
| Users | Up to 32 users, 3 levels |
| Security | MAC, HTTPS, IEEE 802.1x, IP filtering |
Interfaces
| Parameter | Value |
|---|---|
| Alarm IN/OUT | 2 inputs / 2 outputs |
| Audio IN/OUT | Mic/line in (3.5 mm) / Line out (600 Ω) |
| Communication | RJ45 10/100M, RS-485 |
| Analog output | 1 Vpp / 75 Ω (PAL/NTSC/BNC) |
General
| Parameter | Value |
|---|---|
| Power supply | 24 VAC ± 25%, 12 VDC ± 25%, PoE (802.3af, Class 3) |
| Power Consumption | Max 8.5 W |
| Operating Temperature | -40 °C to +65 °C |
| Protection | IP67, IK10, TVS 4000V |

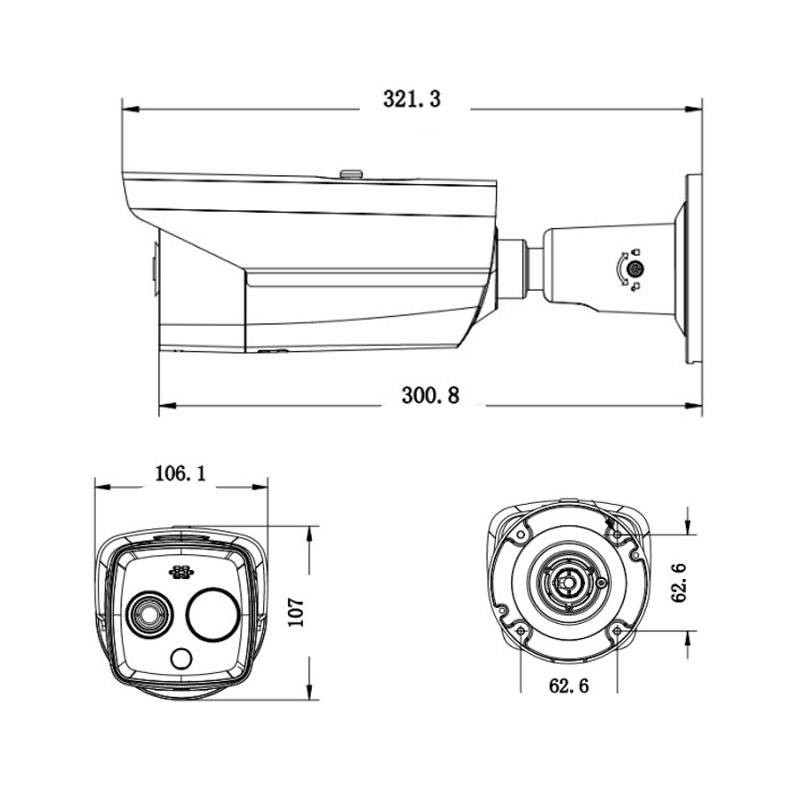

| Dimensions | 321.3 × 106.1 × 107.0 mm |
| Weight | 1550 g |
There are no reviews
Data sheet
- Type: Bullet cameras
- Degree of protection: IP67
- System: IP
- Optical: 6.4mm
- Resolution: 4MP (2K)
