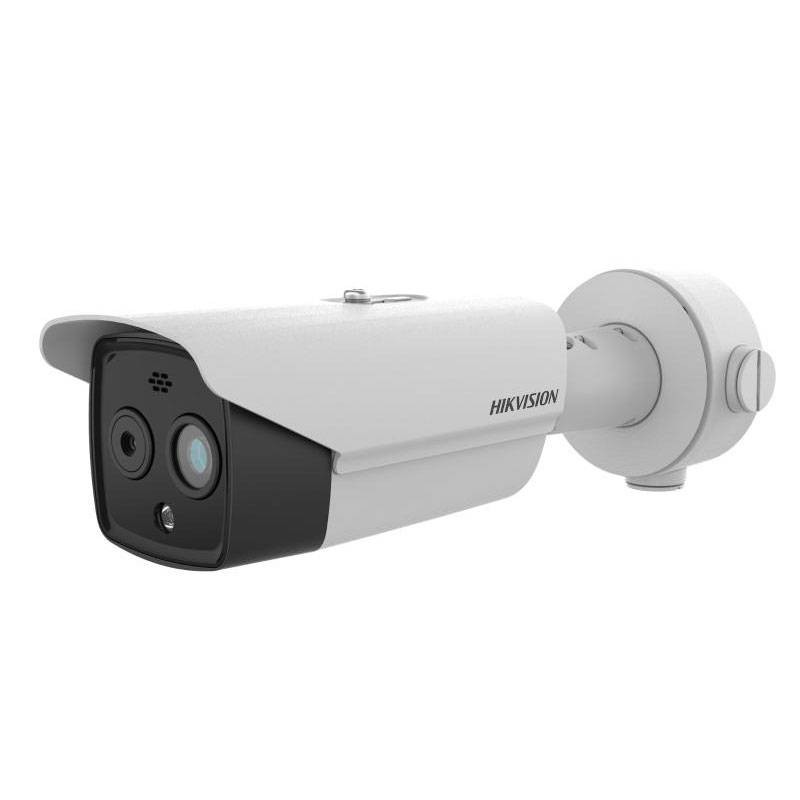

Hikvision Optical Thermal Bullet Camera DS-2TD2628-3/EA CMOS 4 MP 305402216
HIK 305402216
Hikvision Thermal and Optical Bi-spectrum Bullet Camera, with integrated thermal and optical technology, designed for advanced video surveillance and fire prevention. With dual sensors and intelligent video analytics, it offers temperature detection, human/vehicle classification, audio-visual alarms, and reliable protection even in critical environmental conditions, with the following features:
-
Thermal sensor: 256×192 at 12 m, NETD < 40 mK
-
Optical sensor: 1/2.7" 2688×1520 CMOS
-
Temperature sensing: -20 °C to +150 °C, accuracy ±8 °C
-
Functions: VCA (line crossing, intrusion, area entry/exit)
-
Alarms: Acoustic and visual with flashing LEDs and voice messages
-
Visualization: Live, local and network analysis and storage
€749.75
Items Available: 5
: 1
Frequently bought together
Hikvision DS-2TD2628-3/EA 4 Bullet Camera with dual optical and thermal sensors.
This network bispectrum camera integrates a 4 MP high-definition optical module and an infrared thermal module with a 256×192 VOx sensor. With thermal sensing, the camera is able to operate perfectly even in total darkness or in the presence of smoke, fog or visual obstructions. The advanced image processing algorithm (self-adaptive AGC, DDE and 3D DNR) ensures sharp and contrasty images.
Temperature detection and fire prevention
With a temperature measurement function with 3 modes (point, area, line) and an operating range of -20°C to +150°C, the camera is ideal for fire prevention and thermal monitoring in industrial or sensitive environments. The accuracy margin is ±8°C, enough to identify thermal anomalies and initiate corrective actions or alarms.
Intelligent audio-visual alarms
The device integrates an audio-visual alarm system: flashing LEDs and voice messages triggered by events such as intrusion or temperature changes. There are 2 preset and up to 6 customizable messages, making surveillance both active and deterrent.
Smart VCA functionality for perimeter protection.
Supports 4 VCA rules for active video surveillance: line crossing, intrusion, zone entry and exit. With a total of 8 configurable rules, artificial intelligence enables classification between people and vehicles, reducing false alarms and increasing system reliability.
Network connections and compatibility
Supports a wide range of network protocols including HTTP, HTTPS, RTSP, FTP, IPv6, ONVIF (S, G), compatibility with iVMS-4200, Hik-Connect, and up to 32 users with 3 access levels. Supports local storage on microSD up to 256 GB and NAS storage, with ANR capabilities.
Rugged construction and versatile installation
IP66 housing resists dust, rain and temperature changes (-40°C to +65°C), making it perfect for outdoor installations. Supports PoE 802.3af for simplified wiring and features TVS 6000V surge protections.
Recommended Applications.
Perfect for:
-
Fire prevention in power plants, industries, warehouses
-
Video surveillance of parking lots, logistics areas, quarries
-
Active security in construction sites, resorts, waste treatment plants
-
Access control and sensitive perimeters at night or critical conditions
Technical Specifications Hikvision Bifocal Thermal Camera
Thermal Module
| Parameter | Value |
|---|---|
| Image Sensor | Array of uncooled vanadium oxide focal planes |
| Resolution | 256 × 192 |
| Pixel pitch | 12 ?m |
| Spectral range | 8 ?m to 14 ?m |
| NETD | < 40 mK (25°C, F1.1) |
| Focal length | 3.6 mm |
| IFOV | 3.33 mrad |
| Field of view | 50.0°(O) × 37.3°(V) |
| Minimum focusing distance | 0,3 m |
| Aperture | F1.0 |
| Digital zoom | ×2, ×4 |
Optical Module
| Parameter | Value |
|---|---|
| Image Sensor | 1/2.7-inch progressive scan CMOS |
| Resolution | 2688 × 1520 |
| Minimum illumination | Color: 0.0176 Lux (F2.25, AGC ON), B/W: 0.0035 Lux |
| Shutter speed | 1 s to 1/100,000 s |
| Focal length | 4.3 mm |
| Field of view | 84.0°(O) × 43.1°(V) |
| Aperture | F1.6 |
| WDR | 120 dB |
Illumination and Alarms
| Parameter | Value |
|---|---|
| IR Distance | Up to 15 meters |
| White light | Up to 30 meters |
| Visual alarm | White light with adjustable frequency |
| Audible alarm | 2 preset + 6 importable |
Intelligent Functions
| Parameter | Value |
|---|---|
| VCA | 4 rules (line, intrusion, input, output) max 8 rules |
| Temperature measurement | 10 points, 10 areas, 1 line (21 total) |
| Temperature range | -20°C to 150°C |
| Accuracy | ±8°C |
Video and Audio
| Parameter | Value |
|---|---|
| Frame rate (thermal) | Main: 25 fps (up to 1280×720), Sub: 25 fps (up to 704×576) |
| Frame rate (optical) | 50Hz: 25 fps, 60Hz: 30 fps |
| Video compression | H.265 / H.264 / MJPEG |
| Audio compression | G.722.1, G.711, MP2L2, G.726, PCM |
Network
| Parameter | Value |
|---|---|
| Supported protocols | IPv4/IPv6, HTTPS, FTP, SNMP, ONVIF, etc. |
| Storage | MicroSD up to 256 GB, NAS, ANR |
| Users | Up to 32, with 3 levels (Admin, Operator, User) |
| Security | HTTPS, IP filtering, IEEE 802.1x, etc. |
Interfaces
| Parameter | Value |
|---|---|
| Alarm inputs | 2 (0-5 VDC) |
| Alarm outputs | 2 (configurable actions) |
| Audio IN | Jack 3.5 mm 2-2.4 V, 1 k |
| Audio OUT | 600 |
| Network | RJ45 10/100M + RS-485 |
General
| Parameter | Value |
|---|---|
| Interface languages | 32 languages |
| Power supply | 12V DC ±25% / PoE 802.3af |
| Power Consumption | Max 6W (DC) / 6.5W (PoE) |
| Operating Temperature | -40°C TO 65°C |
| Degree of protection | IP66, TVS 6000V protections |

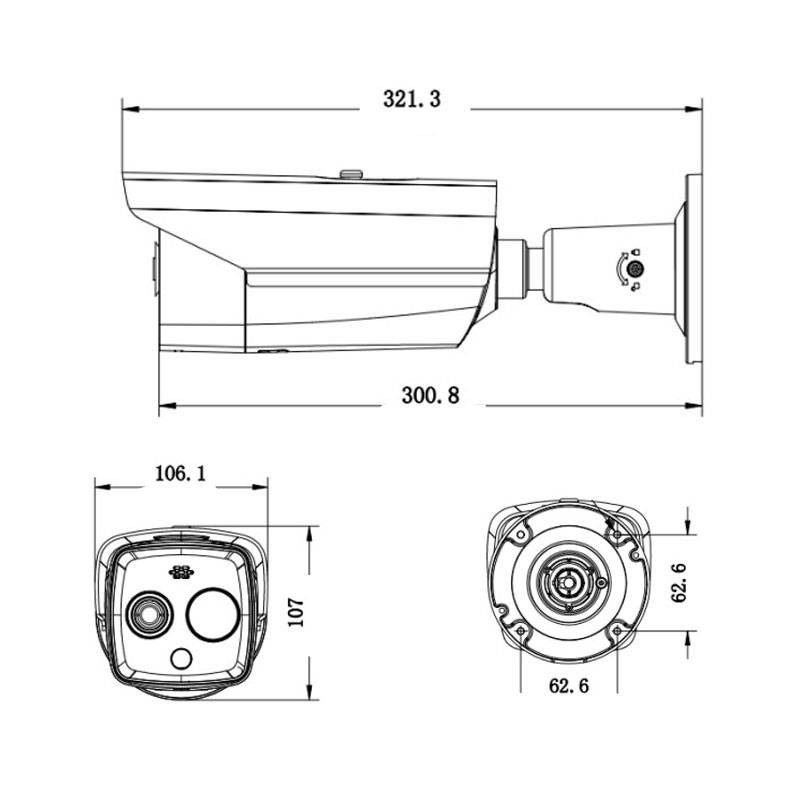

| Dimensions | 321.3 × 106.1 × 107.0 mm |
| Weight | 1550 g |
There are no reviews
Data sheet
- Type: Bullet cameras
- Degree of protection: IP67
- System: IP
- Optical: 4.3mm
- Resolution: 4MP (2K)
4.7-94mm
