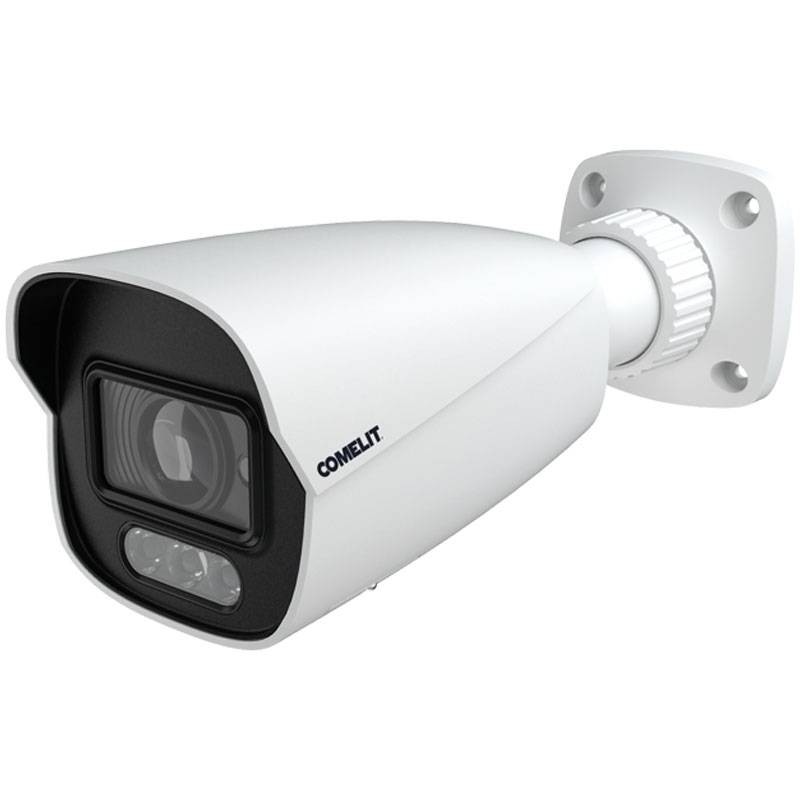

Comelit IP bullet camera 4MP 2.8-12mm with deterrence IB04N3ZA
COE IB04N3ZA
8023903473506
The Comelit ColorUP Next IB04N3ZA bullet camera with motorized 2.8-12 mm lens and 4MP resolution offers 24/7 colour images, artificial intelligence functions, and active deterrence with blue/red LED and integrated siren.
-
Series: ColorUP Next
-
Type: IP bullet camera with active deterrence
-
Resolution: 4MP @ 30fps (2560×1440)
-
Lens: Motorized 2.8-12 mm (remote zoom and focus)
-
Illumination: Light LED + IR LED (range 30 m each)
-
Light functions: Dual Light (IR + White light), ColorUP
-
WDR: 120 dB
-
Intelligent video analysis (AI): Intrusion, line crossing, abandoned/removed object, human/vehicle distinction
-
Audio: Integrated microphone and speaker (two-way audio), 1 IN / 1 OUT
-
Memory: SD slot up to 256 GB
-
Video compression: H.265+ / H.265 / H.264+ / H.264 / MJPEG
-
Deterrence: Blue/red LED and customizable sound alerts
-
Power supply: 12VDC / PoE IEEE802.3af
-
Protection rating: IP66
-
Material: Die-cast aluminum
-
Compatibility: ONVIF / Chrome / Edge / Firefox / Safari
-
Compatible accessories: JBA-BA, CMA-BA, WMA-BA, PMA-A, AMA-A
€234.01
Items Available: 10
: 9
Frequently bought together
Comelit bullet camera with active deterrence function
The Comelit IB04N3ZA is a 4-megapixel motorized IP bullet camera that combines high resolution, advanced night vision, and active deterrence functions, ideal for protecting outdoor areas, parking lots, entrances, and sensitive sites. The 2.8-12 mm motorized varifocal lens allows remote adjustment of framing and focus, ensuring installation flexibility and perfectly sharp details in every condition.
The ColorUP function ensures color images even at night, thanks to the powerful integrated white LED that intelligently illuminates the scene.
Active deterrence
The camera integrates flashing blue/red LEDs and an audio speaker with customizable siren or voice messages, activatable on event (intrusion, line crossing, etc.). This combination of visual and acoustic alarm acts as an immediate deterrent, discouraging intrusions or break-in attempts before they occur.
The user can choose between preset messages or customize voice alerts, making the Comelit IB04N3ZA ideal for commercial and business contexts as well.
Intelligent video analysis (AI)
Equipped with advanced analysis algorithms, the camera can recognize people and vehicles, minimizing false alarms.
Main functions:
-
Intrusion in protected area (with distinction between people/vehicles)
-
Virtual line crossing (filterable by subject type)
-
Detection of abandoned or removed objects
-
Intelligent motion detection (IVS)
Video performance
Thanks to the 4MP resolution and 120 dB WDR, the camera offers clear and detailed images even in backlight or high contrast conditions. The Dual Light technology automatically adapts the lighting mode:
-
White light to maintain color vision;
-
Invisible IR for discreet night shots
The Smart IR functions adjust the LED intensity to avoid overexposure on close subjects.
Audio and connectivity
The Comelit IB04N3ZA is equipped with integrated microphone and speaker for two-way communication and remote voice control. It supports PoE (Power over Ethernet) for power and data transmission with a single cable, simplifying installation.
It also features a microSD slot up to 256 GB, for local recording of videos and events even in case of network interruption.
Structure and protection
The die-cast aluminum body and IP66 protection rating ensure resistance to rain, dust, and extreme temperatures, making the camera perfect for outdoor and industrial installations.
Technical specifications
| MAIN FEATURES | |
|---|---|
| Camera sensor | 1/3" CMOS Ultra Starlight |
| Lens type | Motorized varifocal |
| Optics | 2.8 ÷ 12 mm |
| Video resolution | 4 MP (2560 × 1440) |
| Field of view | Horizontal: 31° ÷ 91° – Vertical: 17° ÷ 48° – Diagonal: 35° ÷ 112° |
| Electronic shutter | From 1/1 s to 1/100,000 s |
| Sensitivity | 0.005 Lux (color), 0 Lux (B/W with IR LED ON) |
| Video transmission | Triple streaming |
| Management software | Comelit CCTV Manager |
| DORI PERFORMANCE | |
| Detection (min - max) | 64 ÷ 189 m |
| Observation (min - max) | 26 ÷ 75 m |
| Recognition (min - max) | 13 ÷ 38 m |
| Identification (min - max) | 6 ÷ 19 m |
| SOFTWARE / FIRMWARE FEATURES | |
| Video compression | H.265+, H.265, H.264+, H.264, MJPEG |
| Frame rate | 30 fps |
| Supported protocols | DHCP, FTP, HTTP, HTTPS, IPv4, IPv6, PPPoE, RTSP, SMTP, UDP, P2P, ONVIF, SNMP |
| Firmware update | Via network |
| Simultaneous users | 3 (live stream) |
| Remote viewing | Browser Edge, Firefox, Chrome, Safari |
| Mobile app | Comelit CCTV |
| Firmware version | 5.2.3.38438 |
| FUNCTIONS | |
| Main functions | 3D-DNR, BLC |
| Motion detection | Yes |
| Video analysis | Scene change detection, video tampering, line crossing (human/vehicle distinction), abandoned/removed object, area intrusion (human/vehicle distinction), blurred image |
| Privacy zones | 4 |
| Backlight compensation | BLC |
| WDR | 120 dB |
| Noise reduction | 3D-DNR |
| White balance | Automatic, Indoor, Manual, Outdoor |
| Exposure control | Manual / Automatic |
| Brightness adjustment | Yes |
| Camera titling | Yes |
| HARDWARE FEATURES | |
| IR LED illumination distance | 30 m |
| White LED illumination distance | 30 m |
| Protection rating | IP66 |
| Vandal-proof rating | IK10 (metal case) |
| Audio inputs/outputs | 1 + microphone / 1 + speaker |
| LAN output | Ethernet 10/100 Mbit/s (RJ45) |
| SD card support | Micro-SD (up to 256 GB, not included) |
| GENERAL DATA | |
| Power supply voltage | 12 VDC / PoE (IEEE 802.3af) |
| Maximum power consumption | 9.5 W |
| Type of power supply | PoE or external power supply |
| Material | Die-cast aluminum |
| Type of case | Bullet |
| Colour | White |
| Dimensions (H x W x D) | 80.3 × 217.8 × 80.5 mm |
| Weight | 680 g |
| Operating temperature | -30 ÷ +60 °C |
| Operating humidity | 25 ÷ 95% (non-condensing) |
There are no reviews
Data sheet
- Type: Bullet cameras
- Degree of protection: IP66
- System: IP
- Optical: 2.8-12mm
- Resolution: 4MP (2K)
