Comelit ColorUP IB08N2FA is an 8MP bullet IP camera with 2.8 mm lens and Dual Light (IR + White LED) for colour images even at night. Video analysis with human/vehicle distinction, WDR 120 dB, PoE and IP67.
8MP resolution @ 20 fps with fixed 2.8 mm lens
Advanced night vision: White LED 30 m + IR Smart IR 30 m
ColorUp and Dual Light function with human/vehicle distinction
Video analysis: area intrusion, line crossing, abandoned/removed object
WDR 120 dB for backlit scenes
H.265+ compression and microSD slot up to 256 GB
Audio: built-in microphone + 1 audio input
Die-cast aluminum housing IP67, 12VDC or PoE 802.3af power supply, ONVIF compatible

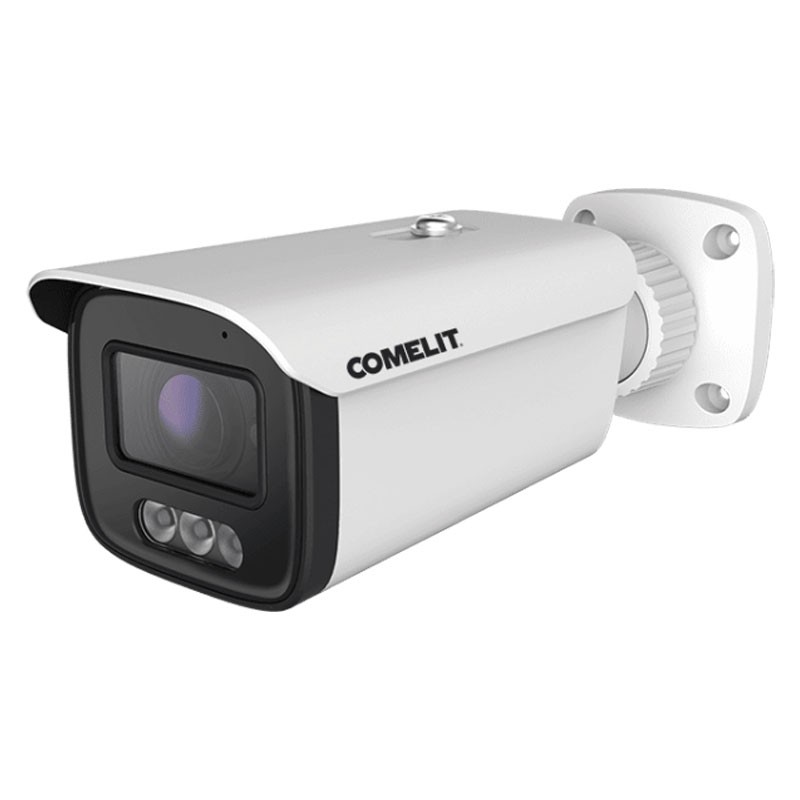

The Comelit Color Up IP 8MP IB08N2FA Bullet Camera from the Next series is designed to offer images rich in detail and intelligent event management, ideal for residential, commercial, and industrial contexts. The 8MP resolution at 20 fps allows for clear and usable evidence capture, while the fixed 2.8 mm lens is perfect when wide coverage of entrances, passage areas, parking lots, and perimeters is needed.
One of the strengths of this model is the ColorUp technology, which uses the White LED to maintain colour footage even in low light conditions. Additionally, the Dual Light mode combines IR and white light to optimize night vision, with the advantage of distinguishing between people and vehicles in analysis functions: a crucial aspect to reduce unnecessary notifications and focus on what really matters. The declared range is 30 m for both the White LED and the IR LED with Smart IR, useful for avoiding overexposure on nearby subjects and improving image uniformity.
The IB08N2FA integrates video analysis functions useful for daily security:
Area Intrusion with people/vehicle distinction
Line Crossing with people/vehicle distinction
Abandoned/Removed Object
These functions make the camera suitable for scenarios such as restricted entrances, gates, loading/unloading zones, or lanes where precise detection of abnormal behavior is needed.
The 120 dB WDR is essential when the scene presents strong contrast (front sun, headlights, glass windows): it improves the readability of faces and license plates by avoiding burnt areas and overly dark shadows. For recording, the camera supports H.265+ / H.265 / H.264+ / H.264 / MJPEG, allowing for bandwidth and disk space optimization. Additionally, the micro SD slot up to 256 GB allows for local recording (useful as a backup or in small systems), reducing dependence on NVR in some applications.
The camera includes an integrated microphone and 1 audio input, useful for scenarios where audio can support event verification. The IP67 waterproof die-cast aluminum body makes it suitable for outdoor use even in challenging weather conditions. The power supply is flexible: 12VDC or PoE IEEE802.3af, ideal for simplifying cabling and installation. ONVIF compatibility facilitates integration with NVR and third-party platforms. It is also usable with major browsers (Chrome/Edge/Firefox/Safari), convenient for management and configuration.
For a tidier and more professional installation, compatible accessories such as JBA-01A, JBA-BA, CMA-BA, WMA-BA, PMA-A, AMA-A are indicated: useful for cable management, wall mounting, or dedicated supports.
| Main Features | |
|---|---|
| Camera Sensor | 1/2.8" CMOS Ultra Starlight |
| Lens | Fixed 2.8 mm Lens |
| Effective Pixels | 3840 × 2160 |
| Video Resolution | 4K (8 MP) |
| Horizontal Field of View | 106° |
| Vertical Field of View | 57° |
| Diagonal Field of View | 124° |
| Electronic Shutter | 1/1 ÷ 1/100000 s |
| Sensitivity | 0.005 lux (colour), 0 lux (B/W with IR) |
| Video Transmission | Triple streaming |
| Management Software | Comelit CCTV Manager |
| DORI | |
| Detection | 79 m |
| Observation | 32 m |
| Recognition | 16 m |
| Identification | 8 m |
| Software / Firmware Features | |
| Video Compression | H.265+, H.265, H.264+, H.264, MJPEG |
| Audio Compression | G711A/U |
| Frame Rate | 20 fps |
| Bit Rate | 0.06 ÷ 12 Mbit/s |
| Supported Protocols | DDNS, DHCP, FTP, HTTP, HTTPS, IPv4/IPv6, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, UDP, UPnP, SNMP, IEEE 802.1x, RTMP, ONVIF (S/G/M/T) |
| Concurrent users | 10 (live) |
| Firmware update | Via network |
| Supported browsers | Edge, Firefox, Chrome, Safari |
| Mobile control | APP Comelit CCTV |
| Firmware version | 5.2.3 (5568) – 21/10/2024 |
| Functions | |
| Main functions | 3D-DNR, BLC, HLC |
| Motion detection | Yes |
| Video analysis | Scene detection, video tampering, line crossing (human/vehicle distinction), abandoned or removed objects, area intrusion, blurred image |
| Optimal person detection distance | 7 m |
| Optimal vehicle detection distance | 12 m |
| Backlight compensation | BLC, HLC |
| Digital effects | Mirror (horizontal/vertical), 180° rotation, ROI, saturation, brightness, contrast, sharpness, image flip |
| WDR | 120 dB |
| DNR | 3D-DNR |
| White balance | Automatic, indoor, manual, outdoor |
| Exposure control | Manual, automatic |
| Brightness adjustment | Yes |
| Camera titling | Yes |
| Hardware features | |
| IR illumination distance | 30 m |
| White LED illumination distance | 30 m |
| Vandal protection | IK10 (metal case) |
| Environmental protection | IP67 |
| Audio inputs | 1 + microphone |
| Audio outputs | 0 |
| LAN | Ethernet 10/100 Mbit/s (RJ45) |
| Memory | MicroSD up to 256 GB (not included) |
| General data | |
| Power supply | 12 VDC / PoE IEEE 802.3af |
| Maximum power consumption | 12 W |
| Power type | PoE or external power supply |
| Dimensions | 218.1 × 79.5 × 70.4 mm |
| Weight | 700 g |
| Material | Die-cast aluminum |
| Case type | Bullet |
| Colour | White |
| Operating temperature | -30 ÷ 60 °C |
| Operating humidity | 25 ÷ 95 % RH |
