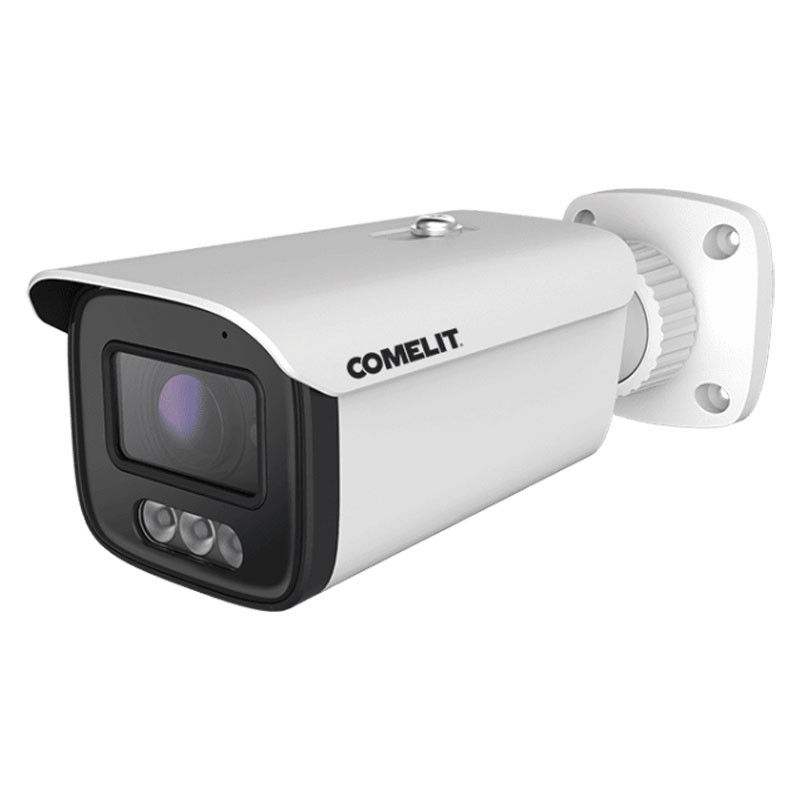

Comelit ColorUP IB08N2ZA is an 8MP bullet IP with motorized optics 2.812 mm: color images at night with Dual Light, video analysis with human/vehicle distinction, WDR 120 dB, PoE and IP67 protection.
8MP resolution @ 20 fps for sharp recording details
Motorized varifocal lens 2.812 mm: adjustable zoom and framing
Advanced night vision: White LED 30 m + IR Smart IR 30 m
ColorUp and Dual Light with human/vehicle distinction
Video analytics: area intrusion, line crossing, abandoned/removed object
WDR 120 dB + H.265+ compression for quality and space saving
micro SD up to 256 GB, built-in microphone + 1 audio input
Die-cast aluminum case IP67, 12VDC or PoE 802.3af power supply, ONVIF compatible.
The Comelit Color Up IP 8MP IB08N2ZA bullet camera from the Next series is designed for video surveillance systems where a unique camera capable of adapting to different scenes is needed. The difference compared to models with a fixed lens is the motorized 2.8-12 mm lens, which allows precise framing: wide-angle to cover large areas (entrances, courtyards, external corridors) or zoom to focus on gates, gates, loading-unloading areas, and sensitive points. This makes installation more flexible and often reduces the number of cameras needed to cover the same area.
IB08N2ZA integrates the ColorUp function, based on White LED with a range of up to 30 meters, to obtain more useful color night shots for identification. In parallel, the Dual Light technology combines IR and white light: depending on the scene and events, the camera can optimize vision by switching between infrared and visible lighting. The presence of Smart IR (IR range up to 30 m) helps avoid overexposure of nearby subjects and maintain more uniform lighting, especially on entrances and close passages.
To reduce false alarms and make notifications more useful, the camera offers advanced video analysis functions, with distinction between people and vehicles where applicable:
Intrusion in the area (people/vehicle)
Line crossing (people/vehicle)
Abandoned / removed object
These functions are ideal for perimeter security, restricted areas, company entrances, and contexts where it is important to distinguish a real passage from irrelevant movements.
The WDR 120 dB helps in the most critical contrast situations (headlights, backlight, windows, deep shadows) improving image readability. For storage, support for H.265+ / H.265 / H.264+ / H.264 / MJPEG allows optimizing bandwidth and disk space while maintaining good detail. The micro SD slot up to 256 GB allows local recording as a backup or as a simple solution for small systems.
The IB08N2ZA includes an integrated microphone and 1 audio input, useful for enriching event verification. The die-cast aluminum waterproof IP67 enclosure makes it suitable for outdoor installations. Power can be supplied via 12VDC or PoE IEEE802.3af, reducing wiring and installation times. ONVIF compatibility facilitates integration with NVR and third-party systems. Browser management is supported on Chrome, Edge, Firefox, and Safari, useful in multi-platform contexts.
For neat mounting and proper connection management, accessories such as JBA-01A, JBA-BA, CMA-BA, WMA-BA, PMA-A, AMA-A are compatible, ideal for junction boxes and dedicated mountings.
| Main features | |
|---|---|
| Camera sensor | 1/2.8" CMOS Ultra Starlight |
| Lens type | Motorized |
| Optics | Varifocal 2.8 ÷ 12 mm |
| Effective pixels | 3840 × 2160 |
| Video resolution | 4K (8 MP) |
| Horizontal field of view | 97° ÷ 34° |
| Vertical field of view | 52° ÷ 18° |
| Diagonal field of view | 116° ÷ 37° |
| Electronic shutter | 1/3 ÷ 1/100000 s |
| Sensitivity | 0.005 lux (color), 0 lux (B/W with IR) |
| Video transmission | Triple streaming |
| Management software | Comelit CCTV Manager |
| DORI | |
| Detection | 88 ÷ 277 m |
| Observation | 35 ÷ 111 m |
| Recognition | 17 ÷ 55 m |
| Identification | 8 ÷ 28 m |
| Software / firmware features | |
| Video compression | H.265+, H.265, H.264+, H.264, MJPEG |
| Audio compression | G711A/U |
| Frame rate | 20 fps |
| Bit rate | 0.06 ÷ 12 Mbit/s |
| Supported protocols | DDNS, DHCP, FTP, HTTP, HTTPS, IPv4/IPv6, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, UDP, UPnP, SNMP, IEEE 802.1x, RTMP, ONVIF (S/G/M/T) |
| Simultaneous connected users | 10 (live) |
| Firmware update | Via network |
| Remote viewing | Edge Browser, Firefox, Chrome, Safari |
| Mobile remote control | APP Comelit CCTV |
| Firmware version | 5.2.3 (5568) – 21/10/2024 |
| Functions | |
| Main functions | 3D-DNR, BLC, HLC |
| Motion detection | Yes |
| Video analysis | Scene change detection, video tampering, line crossing (human/vehicle distinction), abandoned/removed object, area intrusion, blurred image |
| Optimal person detection distance | 15 m |
| Optimal vehicle detection distance | 20 m |
| Backlight compensation | BLC, HLC |
| Digital effects | Mirror (horizontal/vertical), 180° rotation, ROI, saturation, brightness, contrast, sharpness, image flip |
| Wide Dynamic Range | WDR (120 dB) |
| DNR | 3D-DNR |
| White balance | Automatic, Indoor, Manual, Outdoor |
| Exposure control | Manual, Automatic |
| Brightness adjustment | Yes |
| Camera titling | Yes |
| Hardware features | |
| IR illumination distance | 30 m |
| White LED illumination distance | 30 m |
| Vandal protection | IK10 (metal case) |
| Environmental protection | IP67 |
| Audio inputs | 1 + microphone |
| Audio outputs | 0 |
| LAN | Ethernet 10/100 Mbit/s (RJ45) |
| Memory | Micro-SD up to 256 GB (not included) |
| General data | |
| Power supply | 12 VDC / PoE IEEE 802.3af |
| Maximum power consumption | 12 W |
| Power type | PoE or external power supply |
| Dimensions | 218.1 × 79.5 × 70.4 mm |
| Weight | 700 g |
| Material | Die-cast aluminum |
| Case type | Bullet |
| Colour | White |
| Operating temperature | -30 ÷ 60 °C |
| Operating humidity | 25 ÷ 95 % RH |
