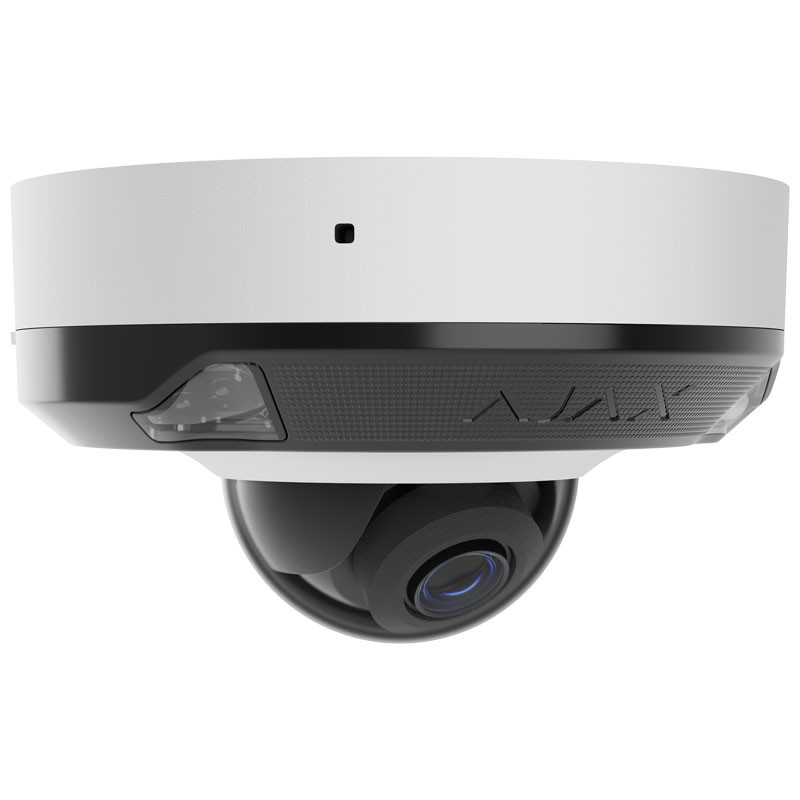

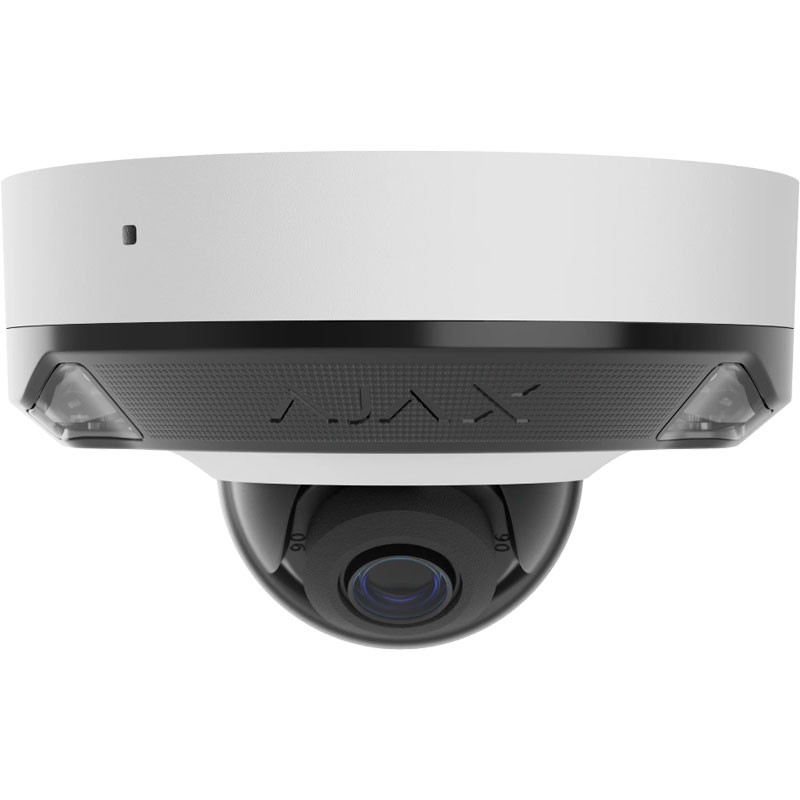

Ajax DomeCam Mini HL IP Camera 5MP lens 2.8mm IP65 white
08T 126269
4823114073069
Ajax DomeCam Mini HL 5MP with 2.8 mm optics offers sharp video, AI false alarm prevention, and hybrid IR + white light illumination for colour vision even at night, indoors and outdoors IP65.
-
Resolution up to 5 MP (2880×1620) with fixed optics 2.8 mm f/1.6
-
110° field of view (H) for wide and immediate coverage
-
Hybrid illumination: IR + white LED up to 15 m for colour even in the dark
-
Integrated AI: recognition of people, pets, and vehicles
-
TrueWDR for better details in backlight and complex scenes
-
Integrated microphone, power supply PoE/12 V and protection IP65
Moreover, Ajax cameras can also operate without an NVR, as long as they are connected to the Internet and the intrusion control panel.
€212.13
Out of stock
Incoming
Frequently bought together
Ajax DomeCam Mini HL: with white light for colour video even at night
This version stands out for integrated IR and white light illumination. The camera can automatically switch from infrared to white light based on object recognition or movement, ensuring high image quality in low light and especially useful colour footage for identifying details (clothing, vehicle colour, critical elements). The sudden white light can also act as a deterrent, making the presence of video surveillance more evident. The maximum range is up to 15 m for both IR and white LED.
5MP Ajax Wired IP Camera for Outdoor and Indoor (IP65)
The Ajax DomeCam Mini HL IP 5MP Camera is a wired video surveillance solution designed for those seeking detailed images, smart management, and reliability in any condition. The IP65 casing makes it suitable for both outdoor installation (rain, dust, environmental changes) and indoor contexts such as entrances, corridors, shops, and offices. The "dome" format is discreet and professional, ideal when you want to protect an area without impacting aesthetics.
2.8 mm Wide-Angle Optics: More Area in a Single Frame
The fixed 2.8 mm optics with f/1.6 aperture is designed to offer a bright and wide view. The 110° horizontal field of view (131° diagonal) allows for monitoring large areas with a single camera: perfect for perimeters, courtyards, driveways, receptions, or open spaces. Additionally, the ability to rotate the image 0°/180° helps manage installations in different positions.
AI and Smart Detection: Fewer False Alarms, Cleaner Archive
The DomeCam Mini HL combines motion detection with AI-based recognition of people, pets, and vehicles. This means more useful notifications and fewer unnecessary events caused by shadows, light variations, or minor irrelevant movements. You can also define pixel-level detection zones to record only the activity you are interested in, optimizing storage space and consultation times.
TrueWDR and Microphone: Details and Context in Every Scene
With TrueWDR, the camera automatically balances brightness differences (backlight, headlights, glass entrances), improving details frame by frame. The integrated microphone adds context to recordings, useful for entrances, counters, loading/unloading areas, or environments where audio supports event reconstruction.
Ajax Ecosystem: Privacy and Advanced Management from App and Videowall
Management is done via the Ajax app (mobile and desktop) with access permissions and privacy control. The Videowall function allows simultaneous monitoring with customizable panels, useful for those managing multiple cameras in a single interface. PoE or 12 V power supply simplifies wiring and installation, especially in professional projects.
| CAMERA | |
|---|---|
| Image Sensor | 5 MP CMOS, type 1/2.8" |
| Lens Focal Distance | 2.8 mm |
| Maximum Aperture | f/1.6 |
| Iris Type | Fixed |
| Focal Type | Fixed |
| Field of View | Horizontal 110° / Vertical 58° / Diagonal 131° |
| DORI Distance | Detection: 65 m Observation: 26 m Recognition: 13 m Identification: 6.5 m |
| Maximum Illumination Distance | White LED: up to 15 m IR LED: up to 15 m Intelligent anti-overexposure lighting control |
| Minimum Illumination | Colour: 0.005 lx Black/White: 0 lx |
| Signal-to-Noise Ratio (SNR) | > 52 dB |
| VIDEO | |
| Resolution | 5 MP (2880 × 1620) 4 MP (2560 × 1440) 3 MP (2304 × 1296) 2 MP (1920 × 1080) 0.6 MP (1024 × 576) |
| Frame Rate | Up to 25 fps |
| Image Rotation | 0°, 180° |
| Video Codec | H.265, H.264 |
| Dynamic Range | 120 dB (True WDR) |
| Storage | microSD up to 256 GB (Class V30 or higher) |
| NVR Compatibility | Ajax NVR |
| AUDIO | |
| Microphone | Integrated |
| Audio Codec | G711-ULAW, G711-ALAW, G726, G722 |
| INTELLIGENT VIDEO ANALYSIS | |
| Motion detection | Software frame analysis |
| AI object detection | Humans, Pets, Vehicles |
| NETWORK | |
| Network port | 1 × RJ-45 Ethernet auto-adaptive (10/100 Mbps) |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4, IPv6, SNMP, RTSP, UDP, DHCP, DNS, DDNS |
| Interoperability | ONVIF Profile S / T* |
| MAIN FEATURES | |
| Video protocol | JetSparrow (peer-to-peer, encrypted) |
| Visual alarm verification | Supported via Ajax scenarios |
| Privacy | Advanced management of configurable permissions and access |
| TAMPER PROTECTION | |
| mTLS | Encrypted connection |
| Authentication | Via Ajax Cloud |
| Secure Boot | Protection against unauthorized firmware |
| OTA signature verification | Secure firmware updates |
| POWER SUPPLY | |
| PoE standard | 802.3at / 802.3af |
| PoE consumption | Max 7.2 W / Average 6.8 W |
| External power supply | 12 V⎓ ±20%, 1 A |
| 12 V DC consumption | Max 6.1 W / Average 5.8 W |
| ENCLOSURE | |
| Dimensions | 114 × 114 × 67 mm |
| Weight | 430 g |
| Operating temperature | from −30 °C to +60 °C |
| Maximum allowable humidity | Up to 90% |
| Protection rating | IP65, IK08 |
| PACKAGE CONTENTS | |

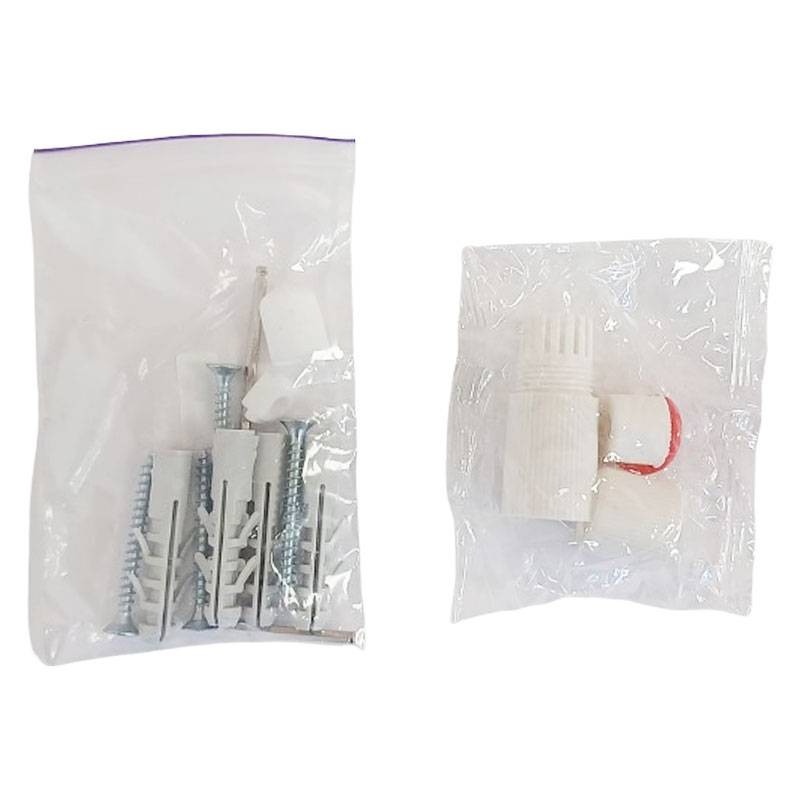

| Included | DomeCam Mini HL (5 MP / 2.8 mm) Mounting template Installation kit Quick guide |
There are no reviews
Data sheet
- Type: Dome cameras
- Degree of protection: IP65
- System: IP
- Optical: 2.8 mm
- Resolution: 5MP
